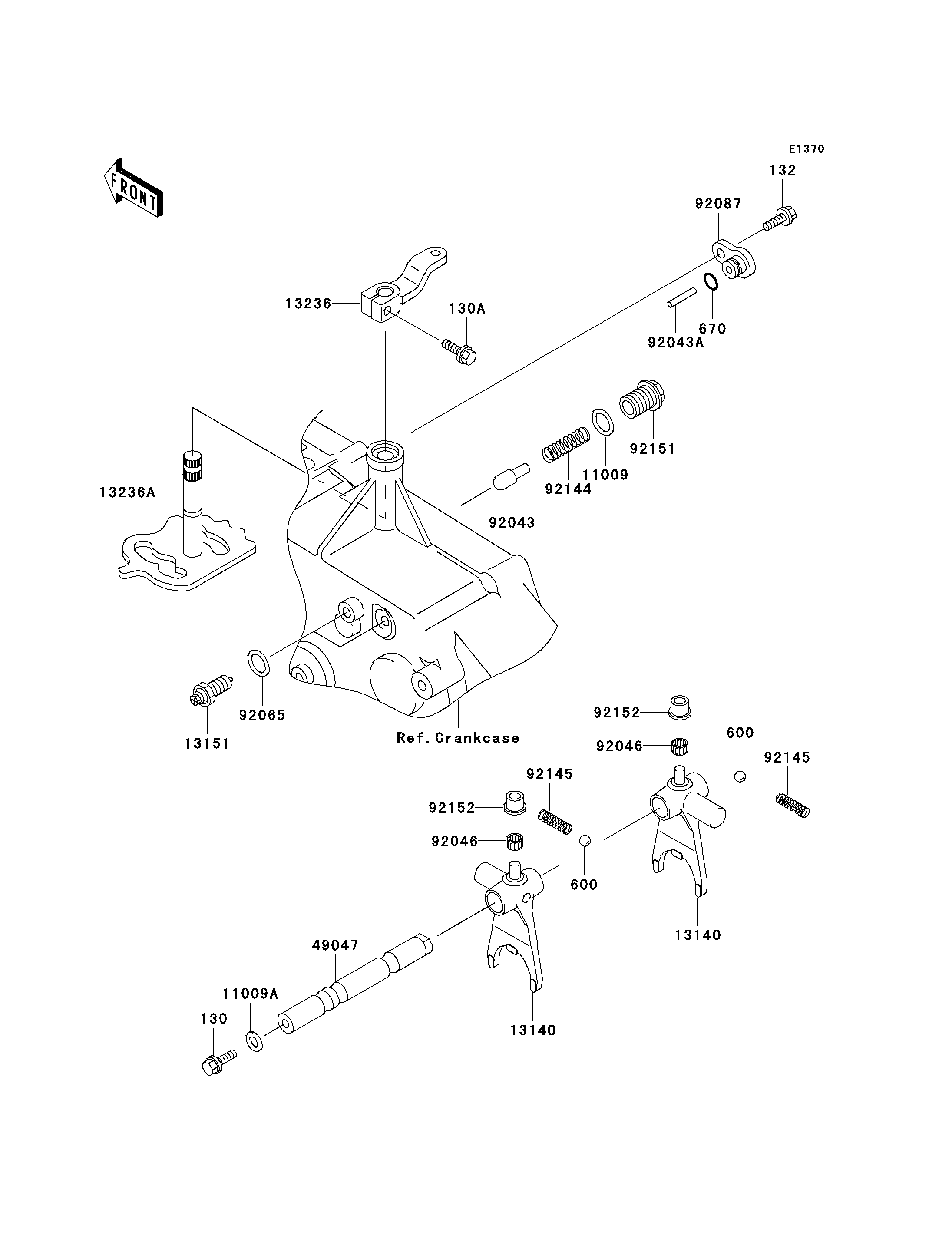

2001 Prairie 400 - Gear Change Mechanism
130
130A
132
600
600
670
11009
11009A
13140
13140
13151
13236
13236A
49047
92043
92043A
92046
92046
92065
92087
92144
92145
92145
92151
92152
92152
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-FLANGED,6X18 | 130 | 130G0618 | 1 | ||
BOLT-FLANGED,6X20 | 130A | 130T0620 | 1 | ||
BOLT-FLANGED-SMALL,6X14 | 132 | 132J0614 | 1 | ||
BALL-STEEL,11/32" | 600 | 600A1100 | 2 | ||
O RING,10MM | 670 | 670D1510 | 1 | ||
GASKET,15.5X22X1 | 11009 | 11009-1008 | 1 | ||
GASKET,6.5X12X1.0 | 11009A | 11009-1568 | 1 | ||
FORK-SHIFT | 13140 | 13140-1276 | 2 | ||
SWITCH-COMP,NEUTRAL | 13151 | 13151-1069 | 2 | ||
LEVER-COMP,CHANGE | 13236 | 13236-1318 | 1 | ||
LEVER-COMP,SHIFT | 13236A | 13236-1323 | 1 | ||
ROD-SHIFT | 49047 | 49047-1098 | 1 | ||
PIN | 92043 | 92043-1578 | 1 | ||
PIN,4X34.8 | 92043A | 92043-1579 | 1 | ||
BEARING-NEEDLE | 92046 | 92046-1262 | 2 | ||
GASKET,10.5X16X1 | 92065 | 92065-058 | 2 | ||
BUSHING-METER GEAR | 92087 | 92087-1058 | 1 | ||
SPRING,CHANGE LEVER,FR/RR | 92144 | 92144-1702 | 1 | ||
SPRING,L=27.9 | 92145 | 92145-1178 | 2 | ||
BOLT,NEUTRAL POSITION | 92151 | 92151-1388 | 1 | ||
COLLAR | 92152 | 92152-1091 | 2 |
