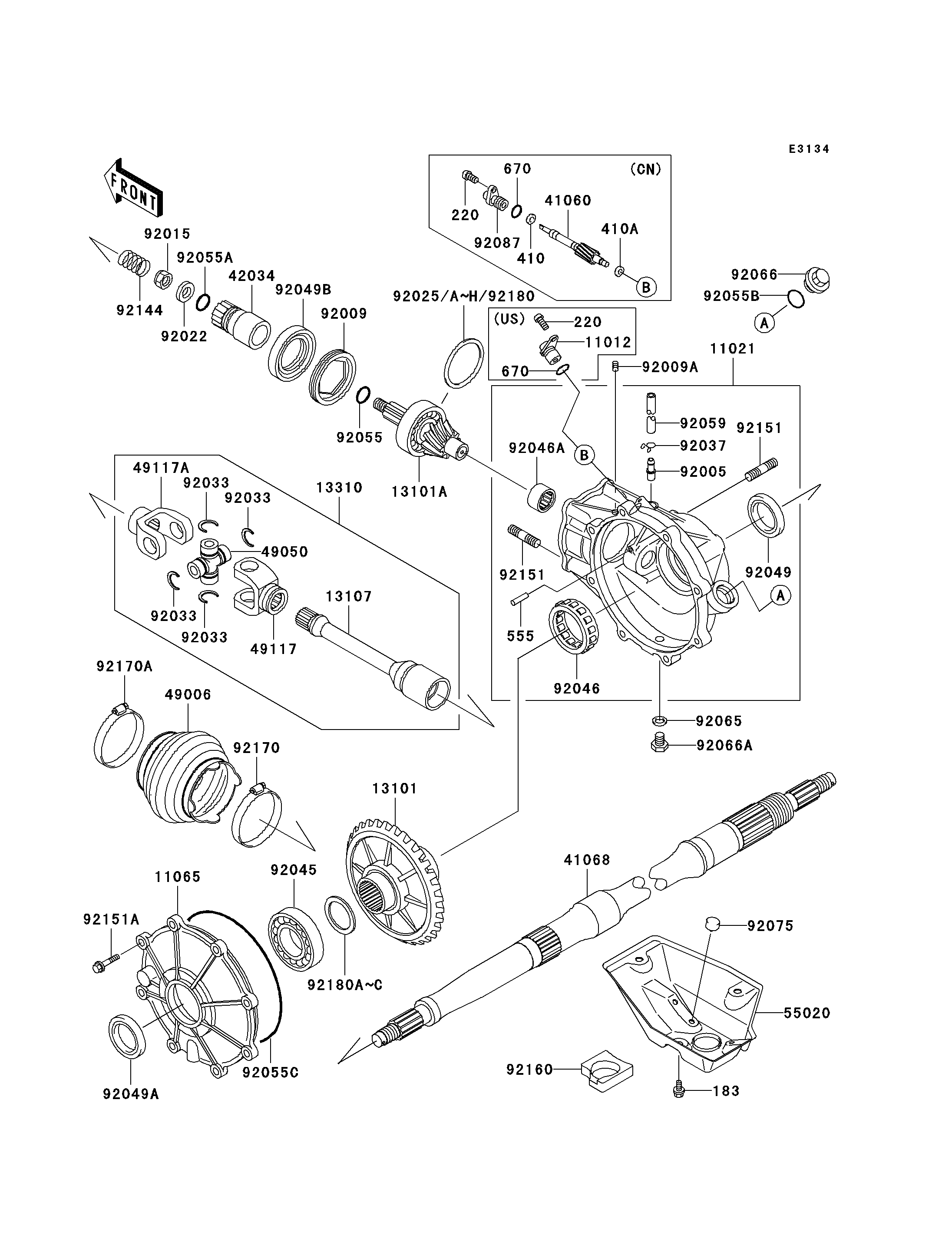

Parts Diagrams |
11021
11021
11065
11065
13101
13101
13101A
13101A
13107
13107
13310
13310
41068
41068
42034
42034
49006
49006
49050
49050
49117
49117
49117A
49117A
55020
55020
92005
92005
92009
92009
92009A
92009A
92015
92015
92022
92022
92025
92025
92025A
92025A
92025B
92025B
92025C
92025C
92025D
92025D
92025E
92025E
92025F
92025F
92025G
92025G
92025H
92025H
92033
92033
92033
92033
92033
92033
92033
92033
92037
92037
92045
92045
92046
92046
92046A
92046A
92049
92049
92049A
92049A
183
183
220
220
220
220
555
555
670
670
670
670
92049B
92049B
92055
92055
92055A
92055A
92055B
92055B
92055C
92055C
92059
92059
92065
92065
92066
92066
92066A
92066A
92075
92075
92144
92144
92151
92151
92151
92151
92151A
92151A
92160
92160
92170
92170
92170A
92170A
92180
92180
92180A
92180A
92180B
92180B
92180C
92180C
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
CASE-ASSY,DRIVE SHAFT | 11021 | 11021-1128 | 1 | ||
CAP | 11065 | 11065-1103 | 1 | ||
GEAR-ASSY,39T | 13101 | 13101-1277 | 1 | ||
GEAR-ASSY,9T | 13101A | 13101-1283 | 1 | ||
SHAFT,DRIVE | 13107 | 13107-1408 | 1 | ||
SHAFT-ASSY,DRIVE | 13310 | 13310-1024 | 1 | ||
AXLE | 41068 | 41068-1388 | 1 | ||
COUPLING | 42034 | 42034-1145 | 1 | ||
BOOT | 49006 | 49006-1307 | 1 | ||
SPIDER | 49050 | 49050-1002 | 1 | ||
YOKE,DRIVE | 49117 | 49117-1085 | 1 | ||
YOKE,DRIVE | 49117A | 49117-1086 | 1 | ||
GUARD | 55020 | 55020-1551 | 1 | ||
FITTING,BREATHER | 92005 | 92005-1127 | 1 | ||
SCREW | 92009 | 92009-1528 | 1 | ||
SCREW,6X12 | 92009A | 92009-1896 | 1 | ||
NUT,12MM | 92015 | 92015-1182 | 1 | ||
WASHER,12.3X25X3.2 | 92022 | 92022-1293 | 1 | ||
SHIM,52.5X61.5X0.15 | 92025 | 92025-1669 | AR | ||
SHIM,52.5X61.5X0.18 | 92025A | 92025-1670 | AR | ||
SHIM,52.5X61.5X0.8 | 92025B | 92025-1671 | AR | ||
SHIM,52.5X61.5X0.9 | 92025C | 92025-1672 | AR | ||
SHIM,52.5X61.5X1.0 | 92025D | 92025-1673 | AR | ||
SHIM,52.5X61.5X1.1 | 92025E | 92025-1674 | AR | ||
SHIM,52.5X61.5X1.2 | 92025F | 92025-1675 | AR | ||
SHIM,52.5X61.5X1.3 | 92025G | 92025-1676 | AR | ||
SHIM,52.5X61.5X1.4 | 92025H | 92025-1677 | AR | ||
RING-SNAP | 92033 | 92033-1030 | 4 | ||
CLAMP,TUBE | 92037 | 92037-147 | 1 | ||
BEARING-BALL,#6009 | 92045 | 92045-1015 | 1 | ||
BEARING-NEEDLE | 92046 | 92046-1247 | 1 | ||
BEARING-NEEDLE | 92046A | 92046-1265 | 1 | ||
SEAL-OIL | 92049 | 92049-1248 | 1 | ||
SEAL-OIL | 92049A | 92049-1287 | 1 | ||
BOLT-UPSET-WS-SMALL,8X14 | 183 | 183H0814 | 3 | ||
SCREW-PAN-CROS,6X14 | 220 | 220X0614 | 1 | ||
PIN-SPRING | 555 | 555A0422 | 1 | ||
O RING,12MM | 670 | 670B2012 | 1 | ||
SEAL-OIL | 92049B | 92049-1460 | 1 | ||
RING-O | 92055 | 92055-012 | 1 | ||
RING-O,27MM | 92055A | 92055-1119 | 1 | ||
RING-O,25.7X2.4 | 92055B | 92055-1136 | 1 | ||
RING-O,160X2.6 | 92055C | 92055-1599 | 1 | ||
TUBE,4.7X9.5X900 | 92059 | 92059-1929 | 1 | ||
GASKET,10.5X16X1 | 92065 | 92065-058 | 1 | ||
PLUG | 92066 | 92066-1303 | 1 | ||
PLUG,DRAIN,10X8 | 92066A | 92066-1490 | 1 | ||
DAMPER | 92075 | 92075-021 | 3 | ||
SPRING | 92144 | 92144-1278 | 1 | ||
BOLT | 92151 | 92151-1424 | 8 | ||
BOLT,8X25 | 92151A | 92151-1506 | 8 | ||
DAMPER | 92160 | 92160-1956 | 1 | ||
CLAMP | 92170 | 92170-1676 | 1 | ||
CLAMP | 92170A | 92170-1764 | 1 | ||
SHIM,52.5X61.5X0.10 | 92180 | 92180-1115 | AR | ||
SHIM,T=1.0 | 92180A | 92180-1205 | AR | ||
SHIM,T=0.1 | 92180B | 92180-1206 | AR | ||
SHIM,T=0.5 | 92180C | 92180-1207 | AR | ||
CAP,METER GEAR | 11012 | 11012-1650 | 1 | US | |
GEAR-METER SCREW | 41060 | 41060-1157 | 1 | CN | |
WASHER-PLAIN-SMALL,5MM | 410 | 410B0500 | 1 | CN | |
WASHER-PLAIN-SMALL,6MM | 410A | 410B0600 | 1 | CN | |
BUSHING-METER GEAR | 92087 | 92087-1057 | 1 | CN |
CASE-ASSY,DRIVE SHAFT | |
REF # | 11021 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CAP | |
REF # | 11065 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GEAR-ASSY,39T | |
REF # | 13101 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GEAR-ASSY,9T | |
REF # | 13101A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SHAFT,DRIVE | |
REF # | 13107 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SHAFT-ASSY,DRIVE | |
REF # | 13310 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
AXLE | |
REF # | 41068 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COUPLING | |
REF # | 42034 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOOT | |
REF # | 49006 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPIDER | |
REF # | 49050 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
YOKE,DRIVE | |
REF # | 49117 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
YOKE,DRIVE | |
REF # | 49117A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GUARD | |
REF # | 55020 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
FITTING,BREATHER | |
REF # | 92005 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SCREW | |
REF # | 92009 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SCREW,6X12 | |
REF # | 92009A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NUT,12MM | |
REF # | 92015 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER,12.3X25X3.2 | |
REF # | 92022 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SHIM,52.5X61.5X0.15 | |
REF # | 92025 |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
SHIM,52.5X61.5X0.18 | |
REF # | 92025A |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
SHIM,52.5X61.5X0.8 | |
REF # | 92025B |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
SHIM,52.5X61.5X0.9 | |
REF # | 92025C |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
SHIM,52.5X61.5X1.0 | |
REF # | 92025D |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
SHIM,52.5X61.5X1.1 | |
REF # | 92025E |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
SHIM,52.5X61.5X1.2 | |
REF # | 92025F |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
SHIM,52.5X61.5X1.3 | |
REF # | 92025G |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
SHIM,52.5X61.5X1.4 | |
REF # | 92025H |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
RING-SNAP | |
REF # | 92033 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
CLAMP,TUBE | |
REF # | 92037 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BEARING-BALL,#6009 | |
REF # | 92045 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BEARING-NEEDLE | |
REF # | 92046 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BEARING-NEEDLE | |
REF # | 92046A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SEAL-OIL | |
REF # | 92049 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SEAL-OIL | |
REF # | 92049A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT-UPSET-WS-SMALL,8X14 | |
REF # | 183 |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
SCREW-PAN-CROS,6X14 | |
REF # | 220 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PIN-SPRING | |
REF # | 555 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
O RING,12MM | |
REF # | 670 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SEAL-OIL | |
REF # | 92049B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RING-O | |
REF # | 92055 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RING-O,27MM | |
REF # | 92055A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RING-O,25.7X2.4 | |
REF # | 92055B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RING-O,160X2.6 | |
REF # | 92055C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TUBE,4.7X9.5X900 | |
REF # | 92059 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GASKET,10.5X16X1 | |
REF # | 92065 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PLUG | |
REF # | 92066 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PLUG,DRAIN,10X8 | |
REF # | 92066A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
DAMPER | |
REF # | 92075 |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
SPRING | |
REF # | 92144 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT | |
REF # | 92151 |
---|---|
PART NUMBER | |
QUANTITY | 8 |
DESTINATION | |
REMARKS |
BOLT,8X25 | |
REF # | 92151A |
---|---|
PART NUMBER | |
QUANTITY | 8 |
DESTINATION | |
REMARKS |
DAMPER | |
REF # | 92160 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CLAMP | |
REF # | 92170 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CLAMP | |
REF # | 92170A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SHIM,52.5X61.5X0.10 | |
REF # | 92180 |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
SHIM,T=1.0 | |
REF # | 92180A |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
SHIM,T=0.1 | |
REF # | 92180B |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
SHIM,T=0.5 | |
REF # | 92180C |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
CAP,METER GEAR | |
REF # | 11012 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | US |
REMARKS |
GEAR-METER SCREW | |
REF # | 41060 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | CN |
REMARKS |
WASHER-PLAIN-SMALL,5MM | |
REF # | 410 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | CN |
REMARKS |
WASHER-PLAIN-SMALL,6MM | |
REF # | 410A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | CN |
REMARKS |
BUSHING-METER GEAR | |
REF # | 92087 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | CN |
REMARKS |
