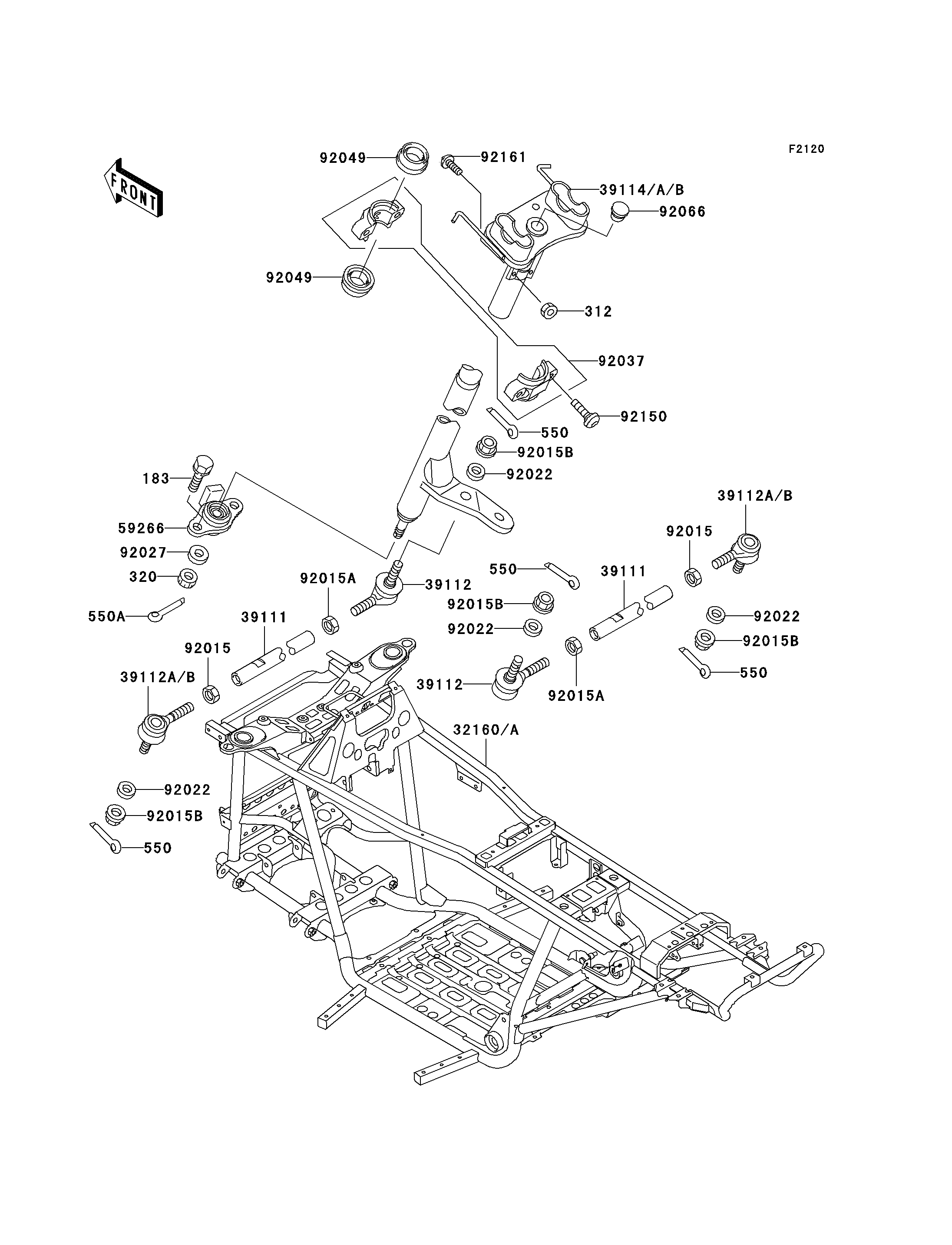

2001 Prairie 400 - Frame

DOWNLOAD PDF
SELECT A NEW PART
183
312
320
550
550
550
550
550A
32160A
39111
39111
39112
39112
39112B
39112B
39114A
59266
92015
92015
92015A
92015A
92015B
92015B
92015B
92015B
92022
92022
92022
92022
92027
92037
92049
92049
92066
92150
92161
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-UPSET-WS-SMALL,8X22 183 183G0822 2
NUT-HEX,6MM,BLACK 312 312C0600 2
NUT-CASTLE 320 320H1000 1
PIN-COTTER,2.0X15 550 550D2015 4
PIN-COTTER,2.5X18 550A 550D2518 1
FRAME-COMP 32160A 32160-1674 1
ROD-TIE 39111 39111-1090 2
RODEND-TIE 39112 39112-1063 2
RODEND-TIE 39112B 39112-1083 2
SHAFT-COMP-STRG 39114A 39114-1086 1
JOINT-BALL 59266 59266-1105 1
NUT,LOCK,10MM 92015 92015-1460 2
NUT,LOCK,10MM 92015A 92015-1494 2
NUT,LOCK,FLANGED,10MM 92015B 92015-1717 4
WASHER,10.5X20X1 92022 92022-239 4
COLLAR,10X21.3X7 92027 92027-1817 1
CLAMP,STEERING SHAFT 92037 92037-1975 1
SEAL-OIL,SR7 25 34 7.8 NS 92049 92049-1278 2
PLUG 92066 92066-1220 1
BOLT 92150 92150-1058 2
DAMPER 92161 92161-1101 2
