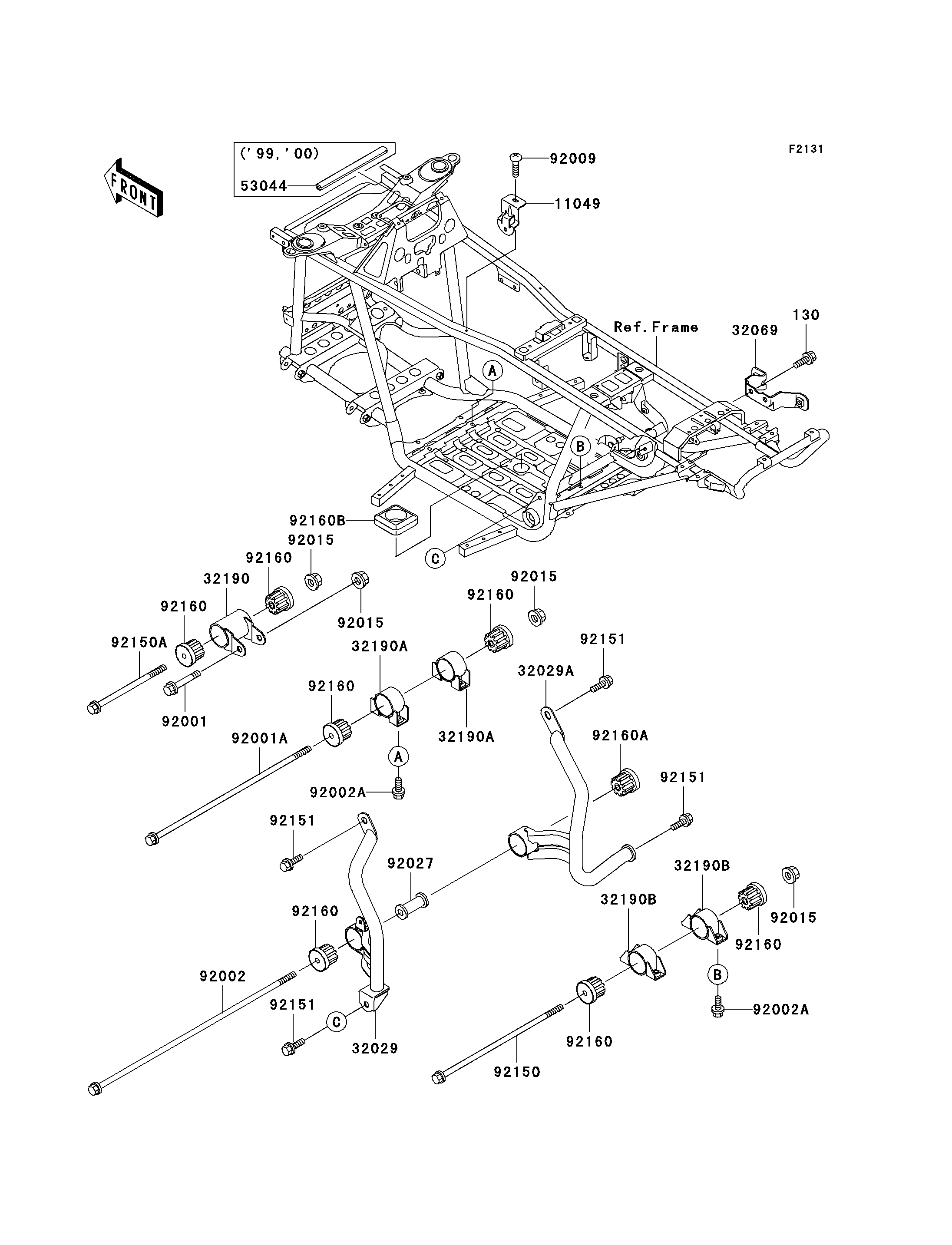

2001 Prairie 400 - Frame Fittings

DOWNLOAD PDF
SELECT A NEW PART
130
11049
32029
32029A
32069
32190
32190A
32190A
32190B
32190B
92001
92001A
92002
92002A
92002A
92009
92015
92015
92015
92015
92027
92150
92150A
92151
92151
92151
92151
92160
92160
92160
92160
92160
92160
92160
92160A
92160B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,8X14 130 130J0814 2
BRACKET 11049 11049-1738 1
BRACKET-ENGINE,RR,UPP,LH 32029 32029-1970 1
BRACKET-ENGINE,RR,UPP,RH 32029A 32029-1971 1
BRACKET-MUFFLER 32069 32069-1547 1
BRACKET-ENGINE,HEAD 32190 32190-1078 1
BRACKET-ENGINE,FR,LWR 32190A 32190-1096 2
BRACKET-ENGINE,RR,LWR 32190B 32190-1097 2
BOLT,FLANGED,10X70 92001 92001-1600 1
BOLT,FLANGED,10X225,BLACK 92001A 92001-1622 1
BOLT,FLANGED,10X230 92002 92002-1531 1
BOLT,FLANGED,8X16 92002A 92002-1645 8
SCREW,TAPPING,6X16 92009 92009-1166 1
NUT,FLANGED,10MM 92015 92015-1727 4
COLLAR,L=54 92027 92027-275 1
BOLT,FLANGED,10X173.5 92150 92150-1493 1
BOLT,FLANGED,10X100 92150A 92150-1731 1
BOLT,FLANGED,10X16 92151 92151-1137 4
DAMPER,ENGINE MOUNT 92160 92160-1692 7
DAMPER,ENGINE MOUNT 92160A 92160-1759 1
DAMPER 92160B 92160-1772 1
