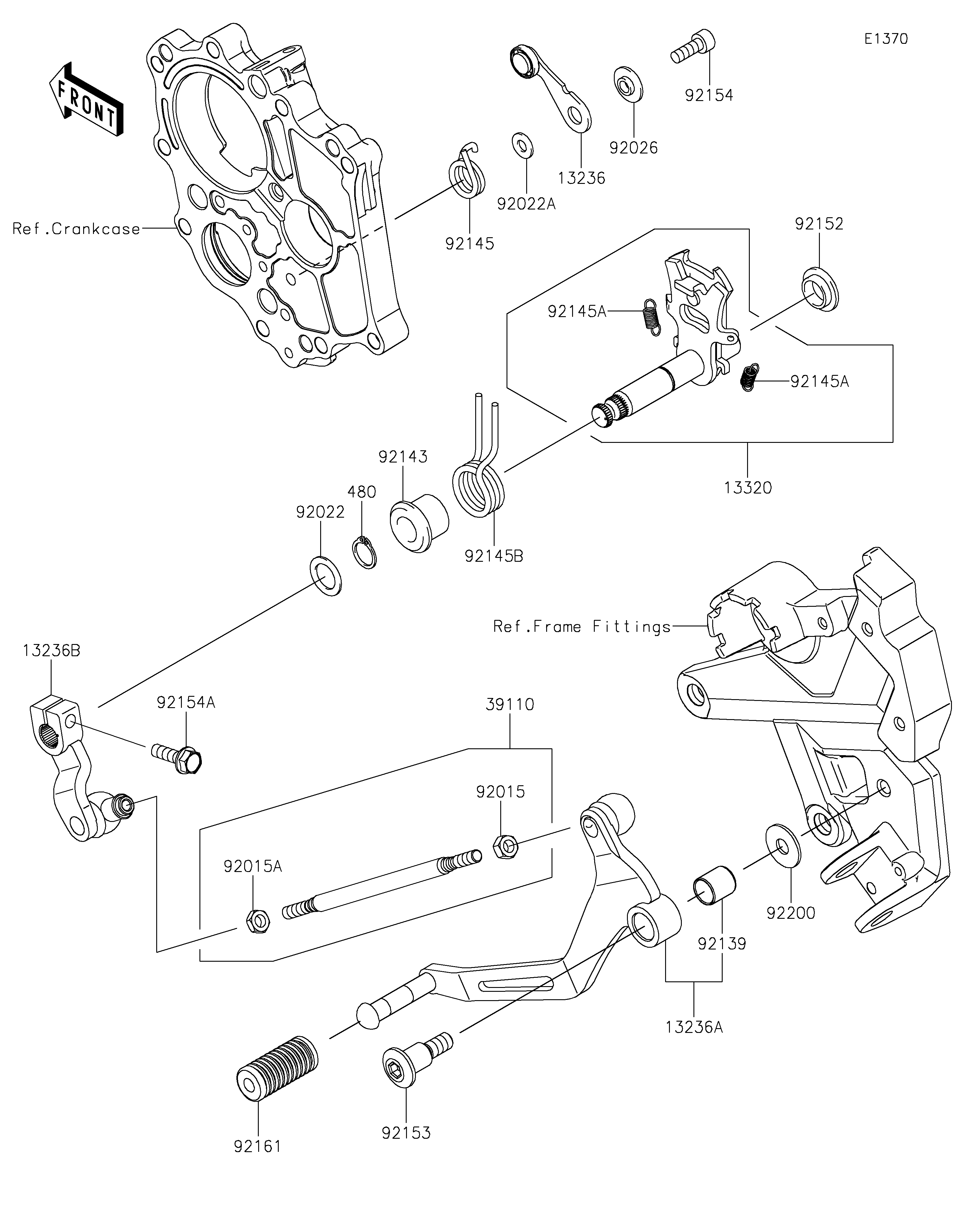

2019 NINJA® 650 ABS - Gear Change Mechanism
13236
13236A
13236B
13320
39110
480
92015
92015A
92022
92022A
92026
92139
92143
92145
92145A
92145A
92145B
92152
92153
92154
92154A
92161
92200
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
LEVER-COMP,POSITION | 13236 | 13236-0170 | 1 | ||
LEVER-COMP,CHANGE PEDAL | 13236A | 13236-0778 | 1 | ||
LEVER-COMP,ENGINE SIDE | 13236B | 13236-0779 | 1 | ||
LEVER-ASSY,CHANGE SHAFT | 13320 | 13320-0032 | 1 | ||
ROD-ASSY-TIE | 39110 | 39110-1124 | 1 | ||
CIRCLIP-TYPE-C,13MM | 480 | 480J1300 | 1 | ||
NUT,6MM | 92015 | 92015-1443 | 1 | ||
NUT,LEFT HANDED,6MM | 92015A | 92015-1444 | 1 | ||
WASHER,13.3X20X1 | 92022 | 92022-1496 | 1 | ||
WASHER,6X12.8X1.2 | 92022A | 92022-1827 | 1 | ||
SPACER | 92026 | 92026-1217 | 1 | ||
BUSHING | 92139 | 92139-0023 | 1 | ||
COLLAR,RETURN SPRING | 92143 | 92143-1498 | 1 | ||
SPRING,POSITION | 92145 | 92145-0304 | 1 | ||
SPRING,5.5X0.7X18 | 92145A | 92145-0703 | 2 | ||
SPRING,CHANGE SHAFT RETURN | 92145B | 92145-1774 | 1 | ||
COLLAR | 92152 | 92152-1075 | 1 | ||
BOLT,SOCKET,8X16.7 | 92153 | 92153-0446 | 1 | ||
BOLT,SOCKET,6X16 | 92154 | 92154-0235 | 1 | ||
BOLT,FLANGED,6X20 | 92154A | 92154-2595 | 1 | ||
DAMPER,CHANGE PEDAL | 92161 | 92161-1300 | 1 | ||
WASHER,8.0X22.0X1.5 | 92200 | 92200-0174 | 1 |
