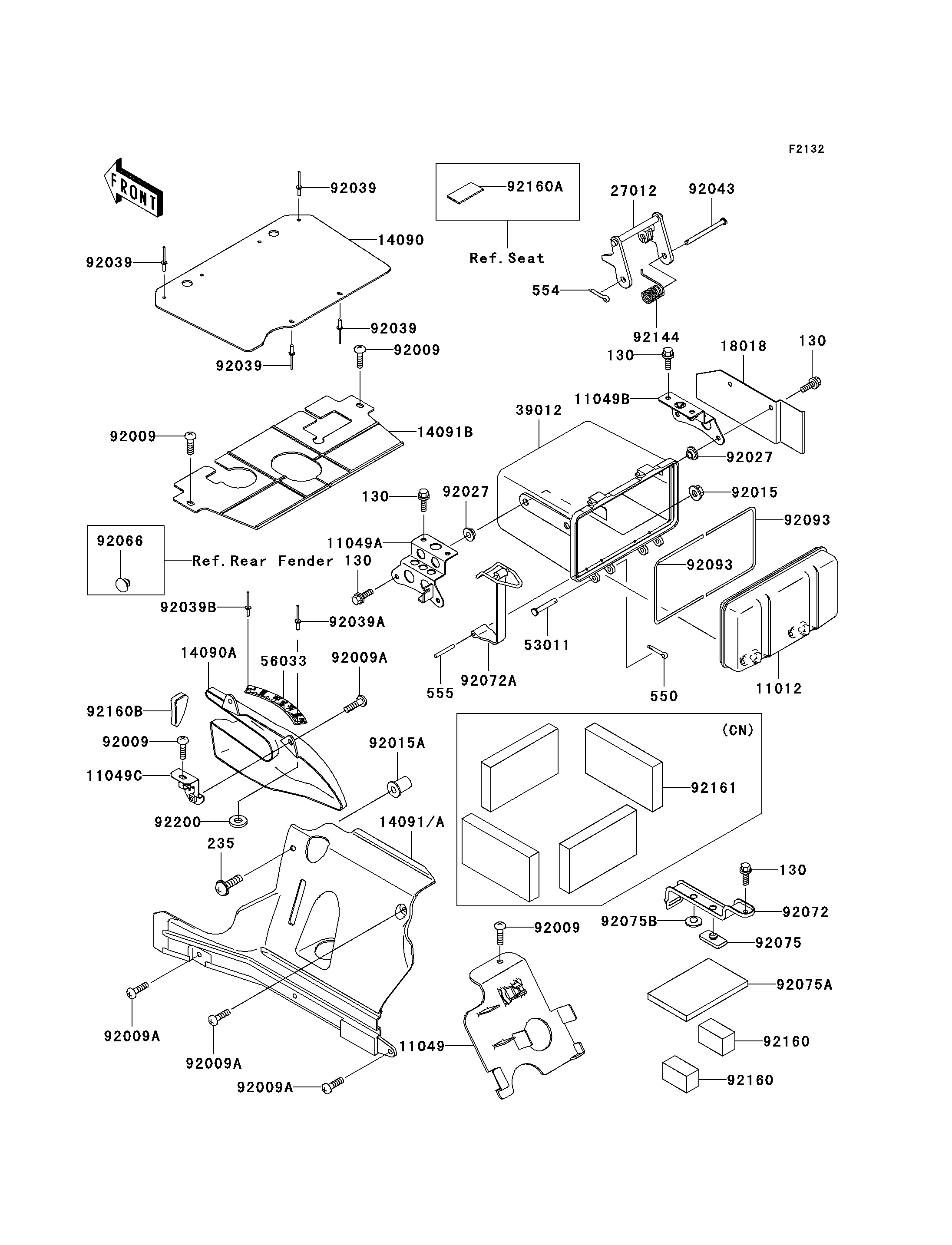

2001 Prairie 400 - Battery Case

DOWNLOAD PDF
SELECT A NEW PART
11012
11012
11049
11049
11049A
11049A
11049B
11049B
11049C
11049C
14090
14090
14090A
14090A
14091A
14091A
14091B
14091B
18018
18018
27012
27012
39012
39012
53011
53011
56033
56033
92009
92009
92009
92009
92009
92009
92009
92009
92009A
92009A
92009A
92009A
92009A
92009A
92009A
92009A
92015
92015
92015A
92015A
92027
92027
92027
92027
92039
92039
92039
92039
92039
92039
92039
92039
92039A
92039A
92039B
92039B
92043
92043
92066
92066
92072
92072
92072A
92072A
92075
92075
92075B
92075B
92093
92093
92093
92093
92144
92144
92160A
92160A
92160B
92160B
130
130
130
130
130
130
130
130
130
130
235
235
550
550
554
554
555
555
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,STORAGE CASE 11012 11012-1951 1
BRACKET,ELECTRIC BASE 11049 11049-1516 1
BRACKET,STORAGE CASE,LH 11049A 11049-1733 1
BRACKET,STORAGE CASE,RH 11049B 11049-1734 1
BRACKET 11049C 11049-1738 1
COVER,FRONT COVER 14090 14090-1723 1
COVER,SHIFT LEVER 14090A 14090-1973 1
COVER,ENGINE,LH,F.BLACK 14091A 14091-1173-6Z 1
COVER,REAR COVER 14091B 14091-1379 1
PLATE-HEAT GUARD 18018 18018-1127 1
HOOK,SEAT 27012 27012-1381 1
CASE-STORAGE 39012 39012-1059 1
PIN,6X39 53011 53011-006 2
LABEL-MANUAL,SHIFT PATTERN 56033 56033-1142 1
SCREW,TAPPING,6X16 92009 92009-1166 4
SCREW,6X16 92009A 92009-1621 5
NUT,FLANGED,6MM,BLACK 92015 92015-1233 4
NUT,WELL,5MM 92015A 92015-1757 1
COLLAR,L=5.6 92027 92027-1933 4
RIVET 92039 92039-1233 4
RIVET 92039A 92039-1244 1
RIVET,3.2X8 92039B 92039-3763 1
PIN,6X77 92043 92043-1367 1
PLUG 92066 92066-1485 1
BAND,BATTERY 92072 92072-1333 1
BAND,STORAGE CASE 92072A 92072-1337 2
DAMPER 92075 92075-1054 1
DAMPER,RUBBER 92075B 92075-261 1
SEAL 92093 92093-1457 2
SPRING,SEAT HOOK 92144 92144-1174 1
DAMPER 92160A 92160-1846 1
DAMPER 92160B 92160-1946 1
BOLT-FLANGED,6X14 130 130J0614 9
SCREW-PAN-WP-CROS,5X16 235 235C0516 1
PIN-COTTER,2.0X12 550 550D2012 2
PIN-SNAP 554 554A0600 1
PIN-SPRING 555 555A0436 2
WASHER,3.5X8X1 92200 92200-1251 1
DAMPER,BATTERY 92075A 92075-1997 1 US
DAMPER 92160 92160-1744 2 US
DAMPER,BATTERY 92161 92161-1061 4 CN
