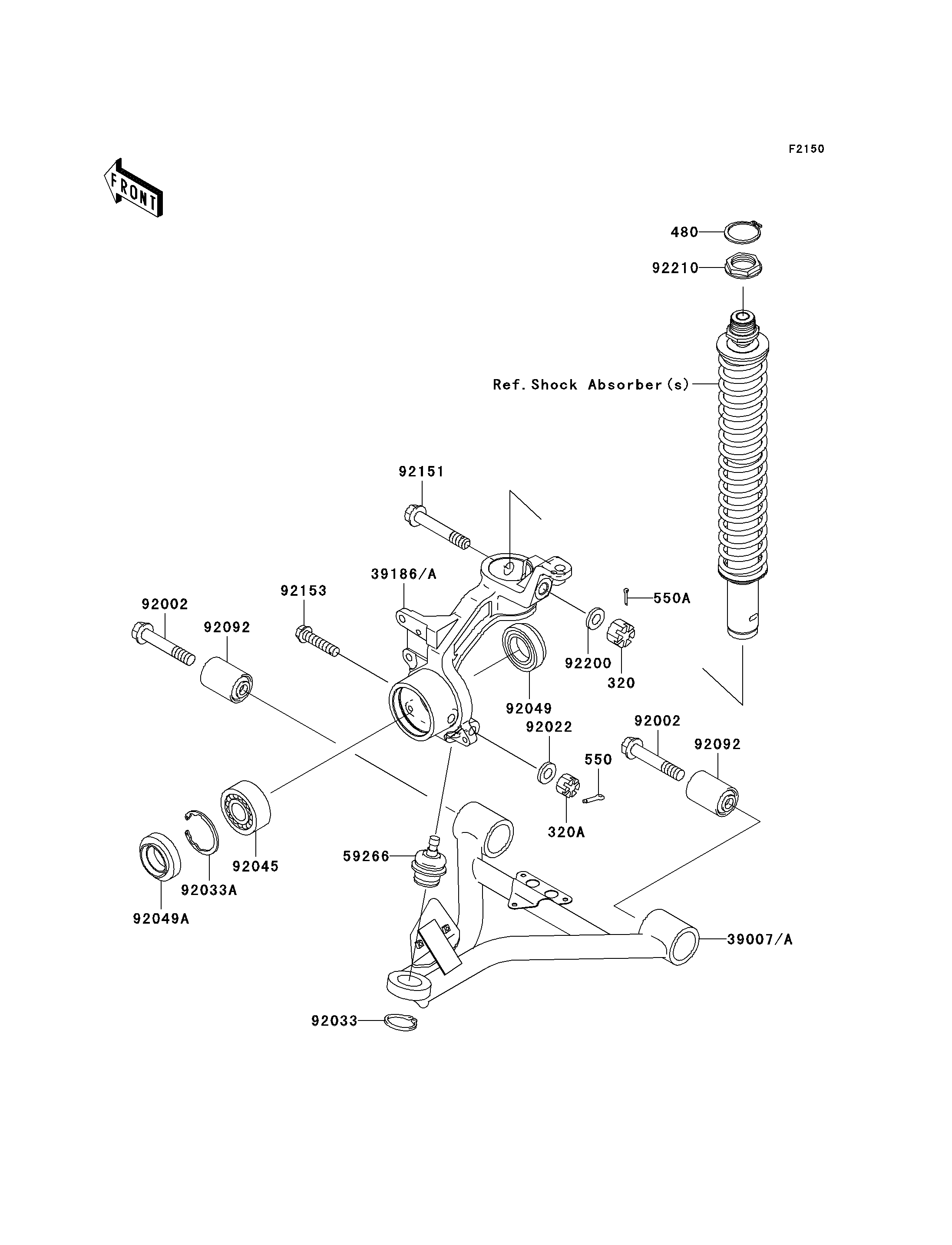

2000 Prairie 400 - Suspension(D1/D2)

DOWNLOAD PDF
SELECT A NEW PART
320
320A
480
550
550A
39007
39007A
39186
39186A
59266
92002
92002
92022
92033
92033A
92045
92049
92049A
92092
92092
92151
92153
92200
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
NUT-CASTLE 320 320G1200 2
NUT-CASTLE 320A 320H1000 2
CIRCLIP-TYPE-C,32MM 480 480J3200 2
PIN-COTTER,2.0X15 550 550D2015 2
PIN-COTTER,3.0X25 550A 550D3025 2
ARM-SUSP,FR,LH,LWR 39007 39007-1259 1
ARM-SUSP,FR,RH,LWR 39007A 39007-1260 1
KNUCKLE,FR,LH 39186 39186-0008 1
KNUCKLE,FR,RH 39186A 39186-0009 1
JOINT-BALL 59266 59266-1098 2
BOLT,FLANGED,12X67 92002 92002-1861 4
WASHER,10.2X16X1 92022 92022-1829 2
RING-SNAP,30MM 92033 92033-1218 2
RING-SNAP,55MM 92033A 92033-1274 2
BEARING-BALL,DAC3055C2RKCD3 92045 92045-1222 2
SEAL-OIL,MT038N1 92049 92049-1476 2
SEAL-OIL,SDD04 38 55 8 92049A 92049-1477 2
BUSHING-RUBBER 92092 92092-1076 4
BOLT,FLANGED,12X65.5 92151 92151-1101 2
BOLT,FLANGED,10X44 92153 92153-0579 2
WASHER,12.3X23X2.3 92200 92200-1004 2
NUT,35MM 92210 92210-1066 2
