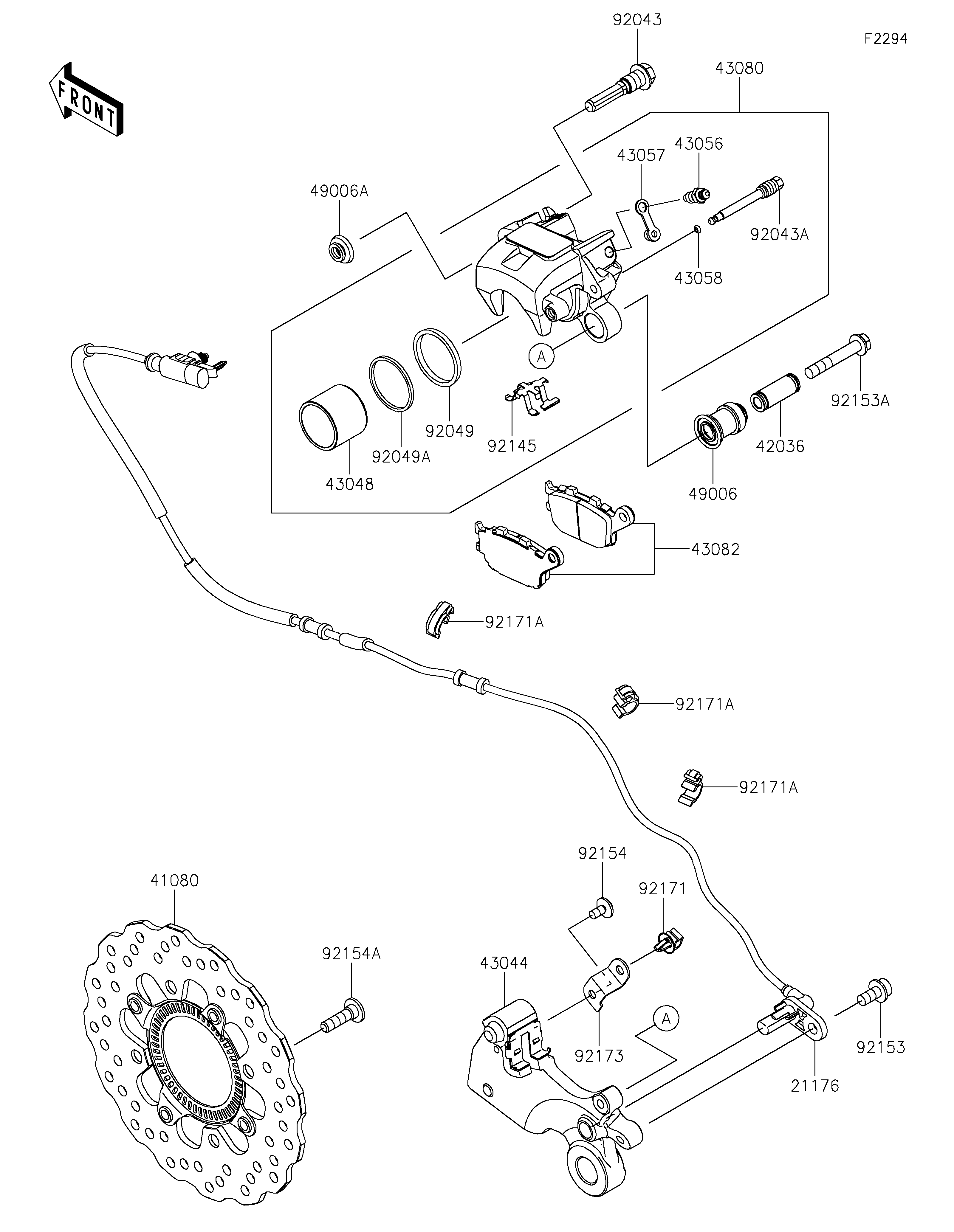

Parts Diagrams |
21176
41080
42036
43044
43048
43056
43057
43058
43080
43082
49006
49006A
92043
92043A
92049
92049A
92145
92153
92153A
92154
92154A
92171
92171A
92171A
92171A
92173
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
SENSOR,SPEED,RR | 21176 | 21176-0828 | 1 | ||
DISC,RR | 41080 | 41080-0667 | 1 | ||
SLEEVE | 42036 | 42036-0050 | 1 | ||
HOLDER-COMP-CALIPER | 43044 | 43044-0081 | 1 | ||
PISTON-CALIPER | 43048 | 43048-0008 | 1 | ||
BREATHER | 43056 | 43056-1055 | 1 | ||
CAP-BREATHER | 43057 | 43057-1001 | 1 | ||
RING,STOPPER | 43058 | 43058-1100 | 1 | ||
CALIPER-SUB-ASSY,RR,BLACK | 43080 | 43080-0156-DJ | 1 | ||
PAD-ASSY-BRAKE | 43082 | 43082-0166 | 1 | ||
BOOT | 49006 | 49006-0058 | 1 | ||
BOOT,CALIPER | 49006A | 49006-1242 | 1 | ||
PIN | 92043 | 92043-0137 | 1 | ||
PIN,HANGER | 92043A | 92043-0820 | 1 | ||
SEAL-OIL | 92049 | 92049-1449 | 1 | ||
SEAL-OIL | 92049A | 92049-1450 | 1 | ||
SPRING,PAD | 92145 | 92145-0493 | 1 | ||
BOLT,SOCKET,8X16 | 92153 | 92153-0327 | 1 | ||
BOLT,FLANGED | 92153A | 92153-1826 | 1 | ||
BOLT,SOCKET,6X12 | 92154 | 92154-0951 | 1 | ||
BOLT,SOCKET,8X30 | 92154A | 92154-1865 | 4 | ||
CLAMP | 92171 | 92171-0640 | 1 | ||
CLAMP,BRAKE HOSE | 92171A | 92171-1819 | 3 | ||
CLAMP | 92173 | 92173-1588 | 1 |
