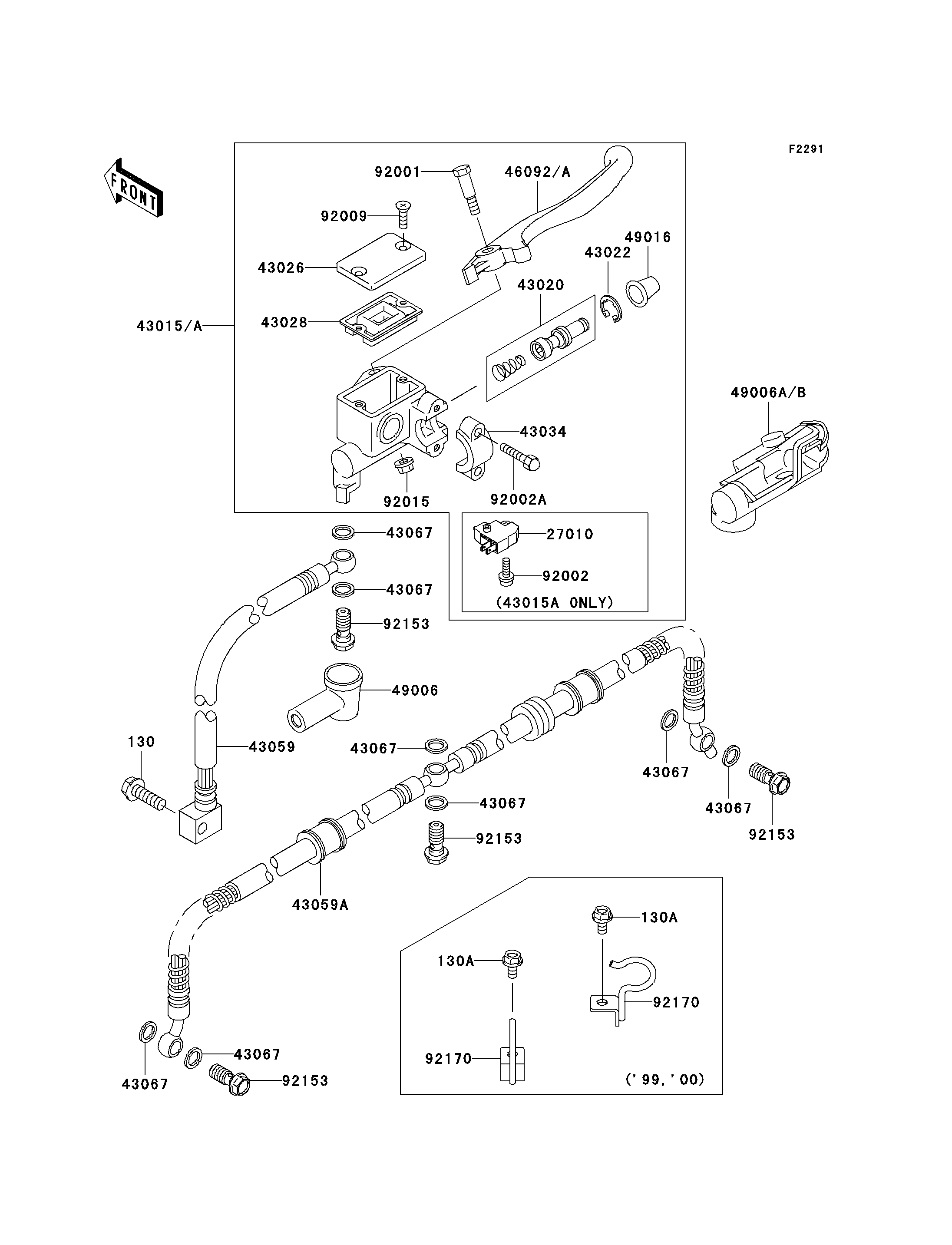

2001 Prairie 400 - Front Master Cylinder

DOWNLOAD PDF
SELECT A NEW PART
130
27010
43015A
43020
43022
43026
43028
43034
43059
43059A
43067
43067
43067
43067
43067
43067
43067
43067
46092A
49006
49006B
49016
92001
92002
92002A
92009
92015
92153
92153
92153
92153
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,8X25 130 130B0825 1
SWITCH,BRAKE 27010 27010-0025 1
CYLINDER-ASSY-MASTER,FR 43015A 43015-1646 1
PISTON-COMP-BRAKE,FR 43020 43020-1056 1
STOPPER-BRAKE,PISTON 43022 43022-1010 1
CAP-BRAKE 43026 43026-1074 1
DIAPHRAGM 43028 43028-1061 1
HOLDER-BRAKE,MASTER CYLINDER 43034 43034-1016 1
HOSE-BRAKE,FR,UPP 43059 43059-1926 1
HOSE-BRAKE,FR,LWR 43059A 43059-1927 1
WASHER,10.5X15X1.5 43067 43067-001 8
LEVER-GRIP,FRONT BRAKE 46092A 46092-1208 1
BOOT,DUST 49006 49006-1040 1
BOOT,RH 49006B 49006-1338 1
COVER-SEAL,MASTER CYLINDER 49016 49016-1044 1
BOLT,FRONT BRAKE LEVER 92001 92001-1728 1
BOLT,SCREW,4X12 92002 92002-1323 1
BOLT 92002A 92002-1894 2
SCREW,4MM 92009 92009-1458 2
NUT,FLANGED,6MM,BLACK 92015 92015-1233 1
BOLT,OIL,L=23 92153 92153-0627 4
