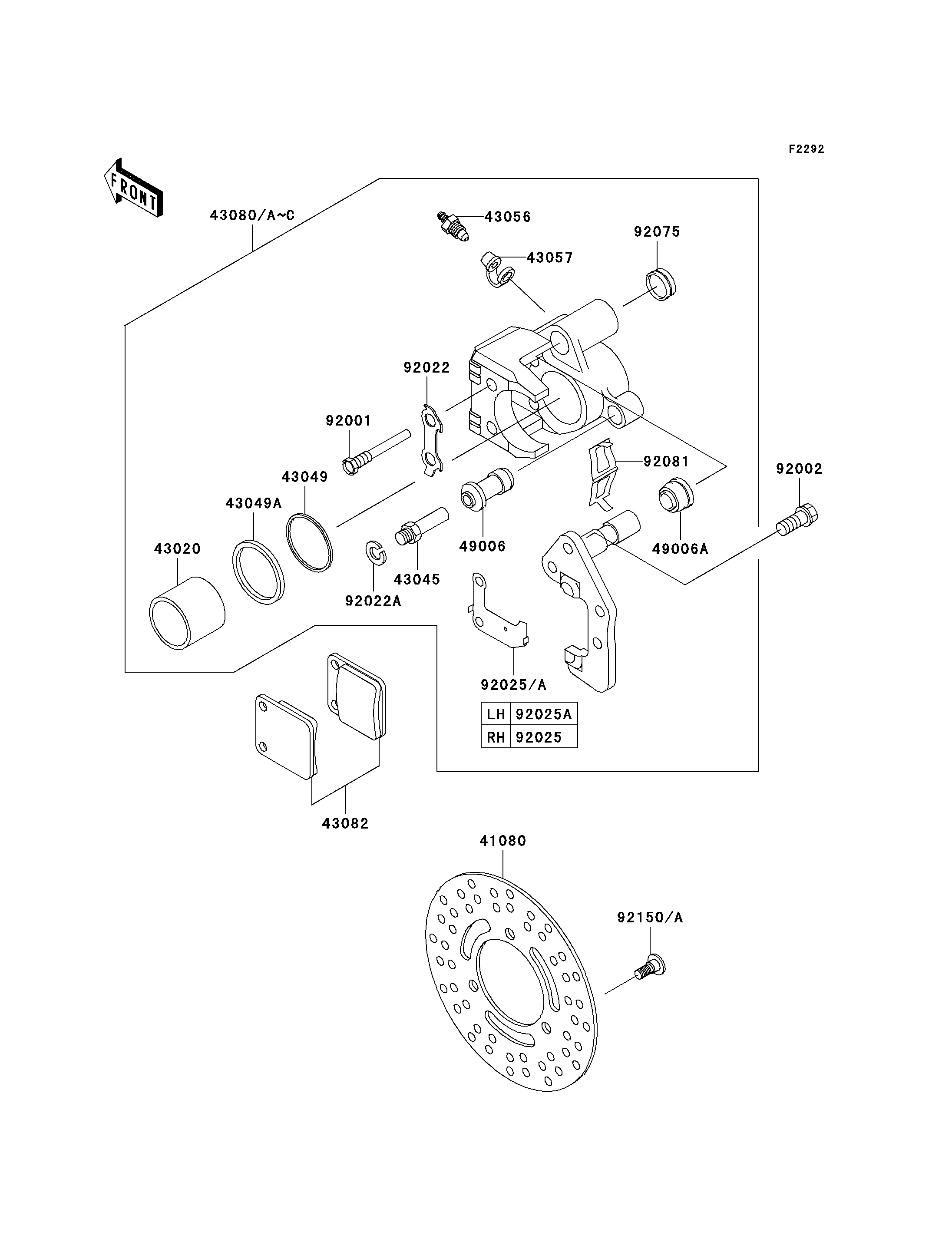

Parts Diagrams |
41080
43020
43045
43049
43049A
43056
43057
43080B
43080C
43082
49006
49006A
92001
92002
92022
92022A
92025
92025A
92075
92081
92150A
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
DISC,FR | 41080 | 41080-1216 | 2 | ||
PISTON-COMP-BRAKE | 43020 | 43020-1114 | 2 | ||
SHAFT-CALIPER | 43045 | 43045-1010 | 2 | ||
PACKING | 43049 | 43049-1081 | 2 | ||
PACKING | 43049A | 43049-1082 | 2 | ||
BREATHER | 43056 | 43056-1055 | 2 | ||
CAP-BREATHER | 43057 | 43057-1001 | 2 | ||
CALIPER-SUB-ASSY,FR,LH | 43080B | 43080-5135 | 1 | ||
CALIPER-SUB-ASSY,FR,RH | 43080C | 43080-5136 | 1 | ||
PAD-ASSY-BRAKE | 43082 | 43082-1201 | 2 | ||
BOOT,CALIPER | 49006 | 49006-1088 | 2 | ||
BOOT,CALIPER | 49006A | 49006-1089 | 2 | ||
BOLT,PAD HOLDER | 92001 | 92001-1723 | 4 | ||
BOLT,FLANGED,8X13 | 92002 | 92002-1737 | 4 | ||
WASHER,LOCK | 92022 | 92022-1372 | 2 | ||
WASHER,WAVE | 92022A | 92022-1373 | 2 | ||
SHIM,PAD | 92025 | 92025-1344 | 1 | ||
SHIM,PAD | 92025A | 92025-1817 | 1 | ||
DAMPER | 92075 | 92075-1414 | 2 | ||
SPRING,PAD | 92081 | 92081-1502 | 2 | ||
BOLT,SOCKET,8X20 | 92150A | 92150-1800 | 6 |
DISC,FR | |
REF # | 41080 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
PISTON-COMP-BRAKE | |
REF # | 43020 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SHAFT-CALIPER | |
REF # | 43045 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
PACKING | |
REF # | 43049 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
PACKING | |
REF # | 43049A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BREATHER | |
REF # | 43056 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
CAP-BREATHER | |
REF # | 43057 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
CALIPER-SUB-ASSY,FR,LH | |
REF # | 43080B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CALIPER-SUB-ASSY,FR,RH | |
REF # | 43080C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PAD-ASSY-BRAKE | |
REF # | 43082 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOOT,CALIPER | |
REF # | 49006 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOOT,CALIPER | |
REF # | 49006A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT,PAD HOLDER | |
REF # | 92001 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
BOLT,FLANGED,8X13 | |
REF # | 92002 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
WASHER,LOCK | |
REF # | 92022 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
WASHER,WAVE | |
REF # | 92022A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SHIM,PAD | |
REF # | 92025 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SHIM,PAD | |
REF # | 92025A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
DAMPER | |
REF # | 92075 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SPRING,PAD | |
REF # | 92081 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT,SOCKET,8X20 | |
REF # | 92150A |
---|---|
PART NUMBER | |
QUANTITY | 6 |
DESTINATION | |
REMARKS |
