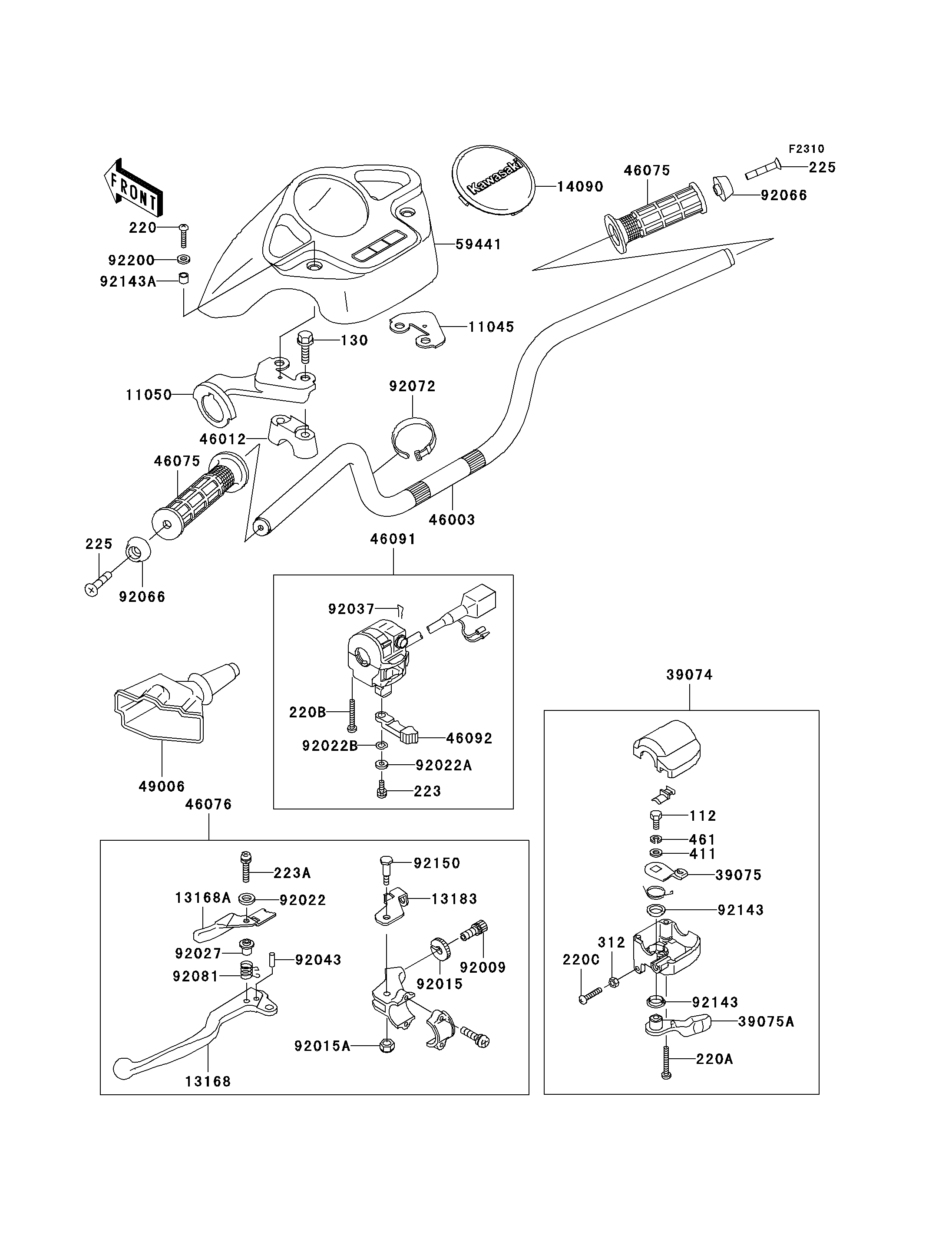

1999 Prairie 400 - Handlebar(D1)

DOWNLOAD PDF
SELECT A NEW PART
112
112
130
130
11045
11045
11050
11050
13168
13168
13168A
13168A
13183
13183
39074
39074
39075
39075
39075A
39075A
46003
46003
46012
46012
46075
46075
46075
46075
46076
46076
46091
46091
46092
46092
49006
49006
59441
59441
92009
92009
92015
92015
92015A
92015A
92022
92022
92022A
92022A
92022B
92022B
92027
92027
92037
92037
92043
92043
92066
92066
92066
92066
92072
92072
92081
92081
92143
92143
92143
92143
92143A
92143A
92150
92150
92200
92200
220
220
220A
220A
220B
220B
220C
220C
223
223
223A
223A
225
225
225
225
312
312
411
411
461
461
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-UPSET,6X14 112 112D0614 1
BOLT-FLANGED,8X60 130 130P0860 4
BRACKET,HANDLE COVER 11045 11045-1925 1
BRACKET,HANDLE COVER,LH 11050 11050-1727 1
LEVER,LH 13168 13168-1449 1
LEVER,LOCK 13168A 13168-1450 1
PLATE,LOCK 13183 13183-1609 1
LEVER-ASSY-THROTTLE 39074 39074-1055 1
LEVER-THROTTLE,ARM 39075 39075-1054 1
LEVER-THROTTLE 39075A 39075-1059 1
HANDLE 46003 46003-1452 1
HOLDER-HANDLE 46012 46012-1168 2
GRIP 46075 46075-1056 2
LEVER-ASSY-GRIP,LH 46076 46076-1178 1
HOUSING-ASSY-CONTROL,LH 46091 46091-1726 1
LEVER-GRIP,CHOKE 46092 46092-1205 1
BOOT,CLUTCH LEVER 49006 49006-1057 1
COVER-HANDLE,F.BLACK 59441 59441-1143-6Z 1
SCREW,CABLE ADJUST,8MM 92009 92009-1435 1
NUT,CABLE ADJUST LOCK,8MM 92015 92015-1596 1
NUT 92015A 92015-1829 1
WASHER,5MM 92022 92022-1467 1
WASHER,5MM 92022A 92022-1837 1
WASHER,WAVE,5MM 92022B 92022-1838 1
COLLAR,RETURN SPRING 92027 92027-1336 1
CLAMP,CLIP 92037 92037-1836 1
PIN,SPRING,3X16 92043 92043-1268 1
PLUG,HANDLE 92066 92066-1191 2
BAND,L=149 92072 92072-031 1
SPRING,LOCK RETURN 92081 92081-1358 1
COLLAR 92143 92143-1138 2
COLLAR,5.6X8X7 92143A 92143-1336 2
BOLT 92150 92150-1420 1
WASHER,4.5X11.5X0.8 92200 92200-1361 2
SCREW-PAN-CROS 220 220C0416 2
SCREW-PAN-CROS,5X30 220A 220C0530 2
SCREW-PAN-CROS,5X35 220B 220C0535 2
SCREW-PAN-CROS,6X30,BLACK 220C 220C0630 1
SCREW-PAN-WS-CROS,5X12 223 223C0512 1
SCREW-PAN-WS-CROS 223A 223D0420 1
SCREW-PAN-WSP-CROS,6X20 225 225C0620 2
NUT-HEX,6MM,BLACK 312 312C0600 1
WASHER-PLAIN,6MM 411 411E0600 1
WASHER-SPRING 461 461L0600 1
COVER,BLIND CAP,F.BLACK 14090 14090-1945-6Z 1 US
