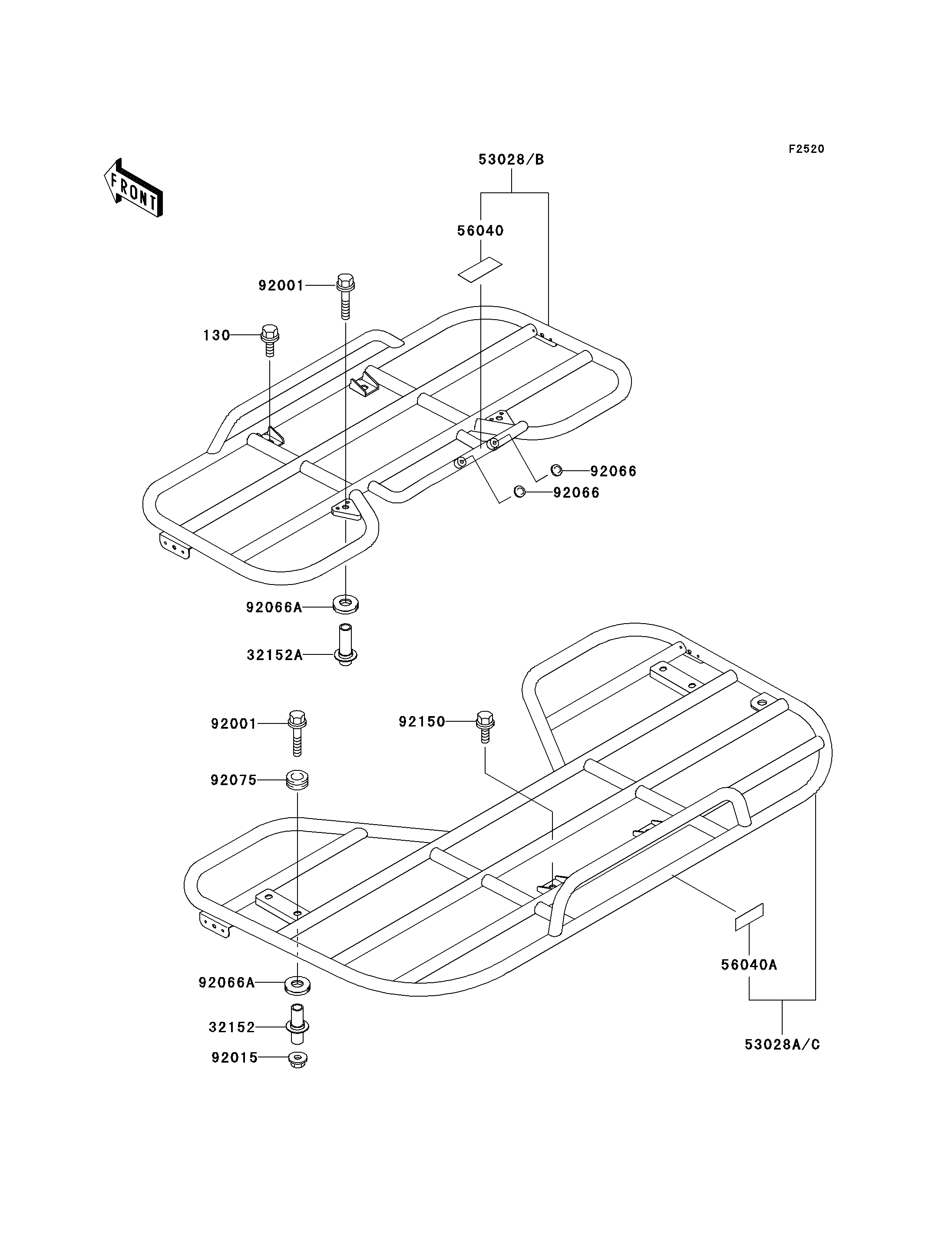

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,8X12 130 130J0812 2
PIPE,REAR CARRIER 32152 32152-1066 2
PIPE,FRONT CARRIER 32152A 32152-1067 2
LABEL-WARNING,MAXIMUM LOAD 56040 56040-1321 1
LABEL-WARNING,MAXIMUM LOAD 56040A 56040-1322 1
BOLT,FLANGED,8X75,BLACK 92001 92001-1642 4
NUT,FLANGED,LOCK,8MM 92015 92015-1696 2
PLUG 92066 92066-1216 2
PLUG 92066A 92066-1438 4
DAMPER 92075 92075-1086 2
BOLT,8X12 92150 92150-1780 2
CARRIER-ASSY,FR,P.C.GRAY 53028 53028-1095-CQ 1 US
CARRIER-ASSY,RR,P.C.GRAY 53028A 53028-1096-CQ 1 US
CARRIER-ASSY,FR,P.C.GRAY 53028B 53028-1099-CQ 1 CN
CARRIER-ASSY,RR,P.C.GRAY 53028C 53028-1100-CQ 1 CN
