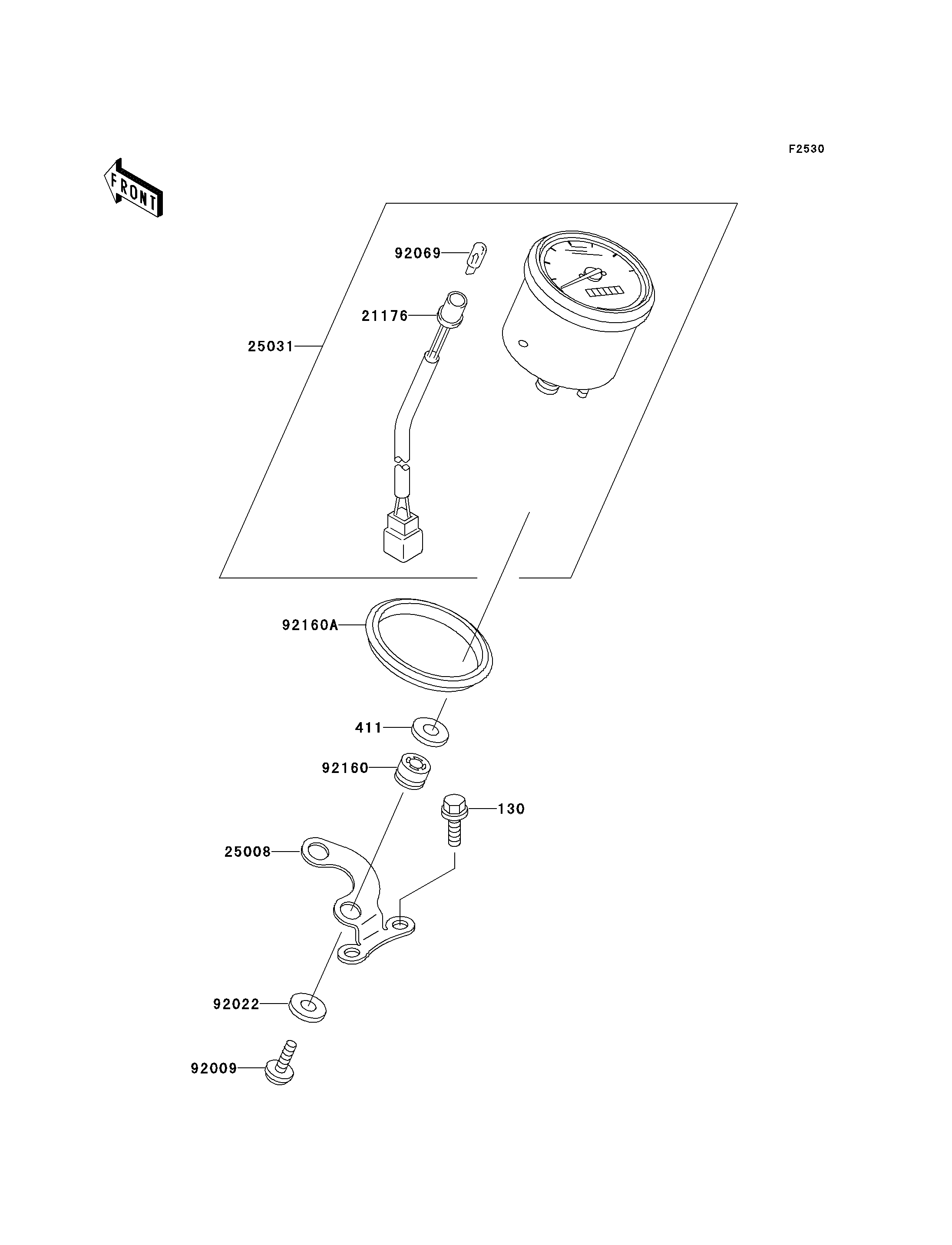

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,8X14 130 130J0814 2 CN
WASHER-PLAIN,8MM 411 411B0800 2 CN
CORD ASSY,SPEEDOMETER 21176 21176-1059 1 CN
BRACKET-METER 25008 25008-1221 1 CN
METER-ASSY,KPH 25031 25031-1083 1 CN
SCREW,5X12 92009 92009-3740 2 CN
WASHER,6.5X16X1.0 92022 92022-1093 2 CN
BULB,12V 1.7W,T10 92069 92069-1059 1 CN
DAMPER 92160 92160-1461 2 CN
DAMPER,SPEEDOMETER 92160A 92160-1959 1 CN
