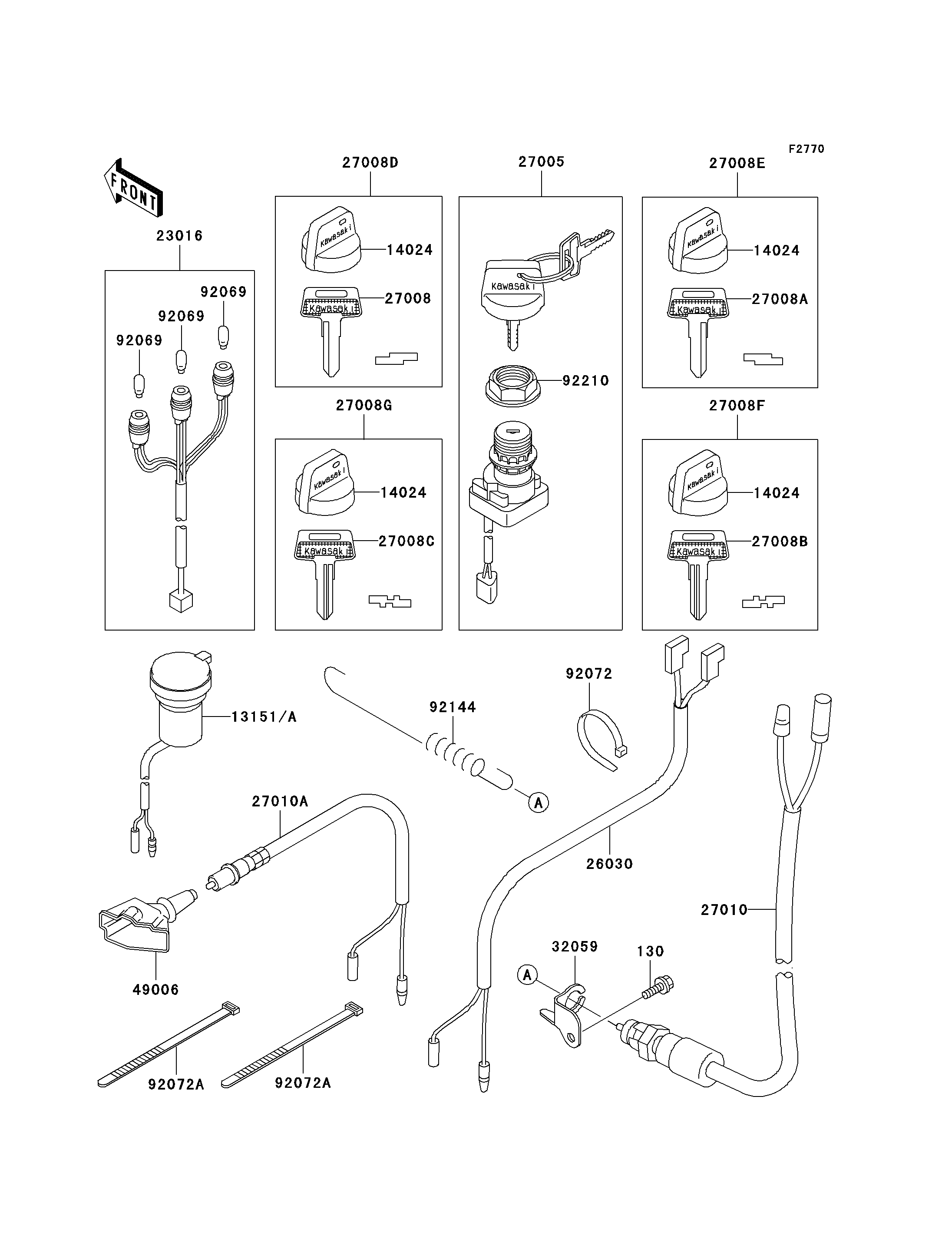

Parts Diagrams |
130
13151A
14024
14024
14024
14024
23016
26030
27005
27008
27008A
27008B
27008C
27008D
27008E
27008F
27008G
27010
27010A
32059
49006
92069
92069
92069
92072
92072A
92072A
92144
92210
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-FLANGED,6X10 | 130 | 130J0610 | 1 | ||
SWITCH-COMP,D.C.TERMINAL | 13151A | 13151-1094 | 1 | ||
COVER,KEY | 14024 | 14024-1551 | 4 | (OPTION) | |
LAMP-ASSY | 23016 | 23016-1151 | 1 | ||
HARNESS | 26030 | 26030-1058 | 1 | ||
SWITCH-ASSY-IGNITION | 27005 | 27005-1229 | 1 | ||
KEY-LOCK,BLANK | 27008 | 27008-1041 | 1 | (OPTION) | |
KEY-LOCK,BLANK | 27008A | 27008-1042 | 1 | (OPTION) | |
KEY-LOCK,BLANK | 27008B | 27008-1043 | 1 | (OPTION) | |
KEY-LOCK,BLANK | 27008C | 27008-1044 | 1 | (OPTION) | |
KEY-LOCK,BLANK,W/COVER | 27008D | 27008-1132 | 1 | (OPTION) | |
KEY-LOCK,BLANK,W/COVER | 27008E | 27008-1133 | 1 | (OPTION) | |
KEY-LOCK,BLANK,W/COVER | 27008F | 27008-1134 | 1 | (OPTION) | |
KEY-LOCK,BLANK,W/COVER | 27008G | 27008-1135 | 1 | (OPTION) | |
SWITCH,BRAKE LAMP | 27010 | 27010-025 | 1 | ||
SWITCH,BRAKE | 27010A | 27010-1294 | 1 | ||
BRACKET-SWITCH,REAR BRAKE | 32059 | 32059-1136 | 1 | ||
BOOT | 49006 | 49006-1261 | 1 | ||
BULB,12V 3W,T7 | 92069 | 92069-1020 | 3 | ||
BAND,L=149 | 92072 | 92072-031 | 1 | ||
BAND,L=186 | 92072A | 92072-056 | 2 | ||
SPRING,BRAKE LAMP SWITCH | 92144 | 92144-1343 | 1 | ||
NUT,IGNITION SWITCH | 92210 | 92210-1109 | 1 |
