Part Item Information

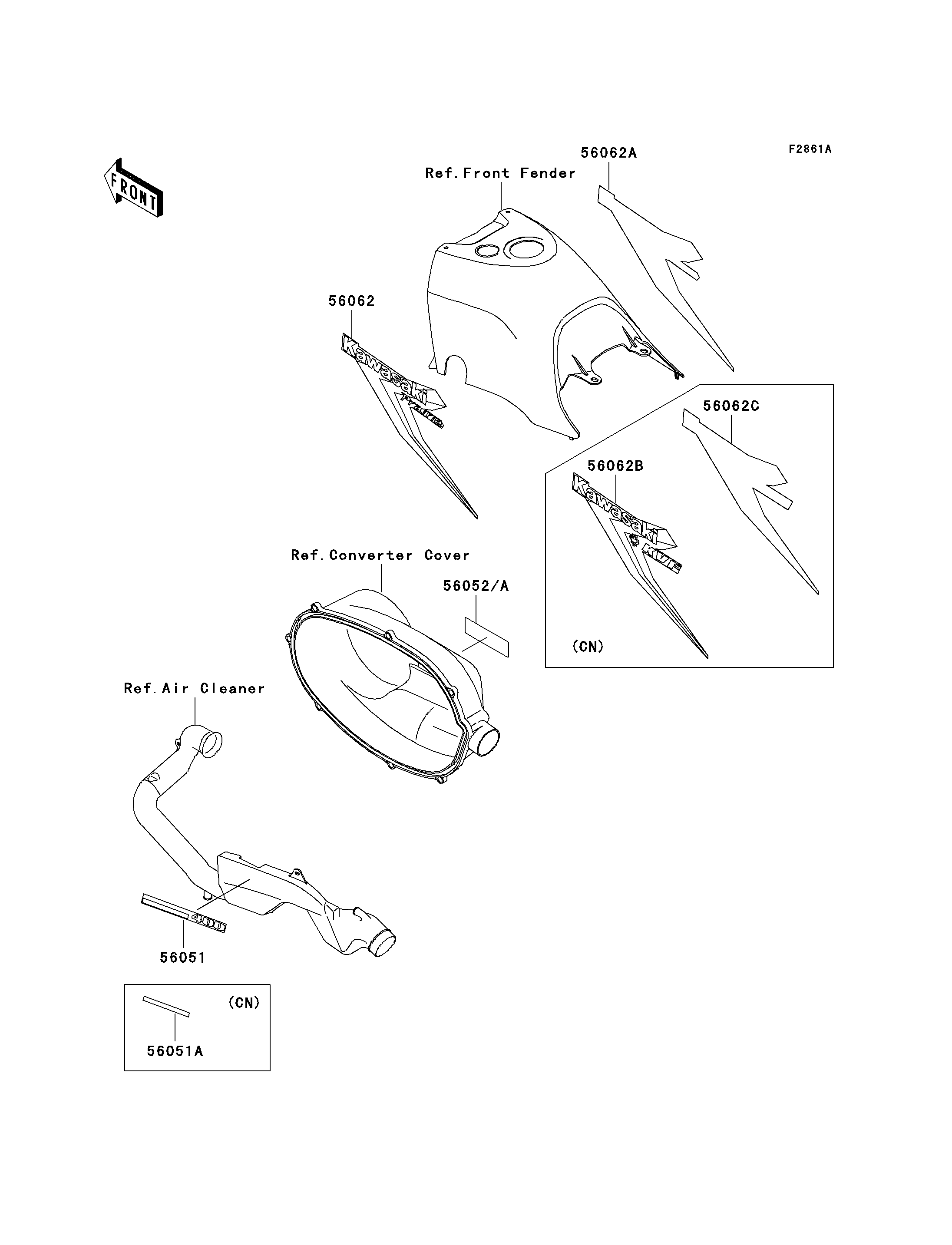

ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
MARK,AIR CLEANER COVER 56051 56051-1858 1 US
MARK,AIR CLEANER COVER 56051A 56051-1859 1 CN
MARK,BELT CONVERTER COVER 56052 56052-1051 1 US
MARK,BELT CONVERTER COVER 56052A 56052-1052 1 CN
PATTERN,FUEL TANK COVER,LH 56062 56062-1479 1 US
PATTERN,FUEL TANK COVER,RH 56062A 56062-1480 1 US
PATTERN,FUEL TANK COVER,LH 56062B 56062-1499 1 CN
PATTERN,FUEL TANK COVER,RH 56062C 56062-1500 1 CN
