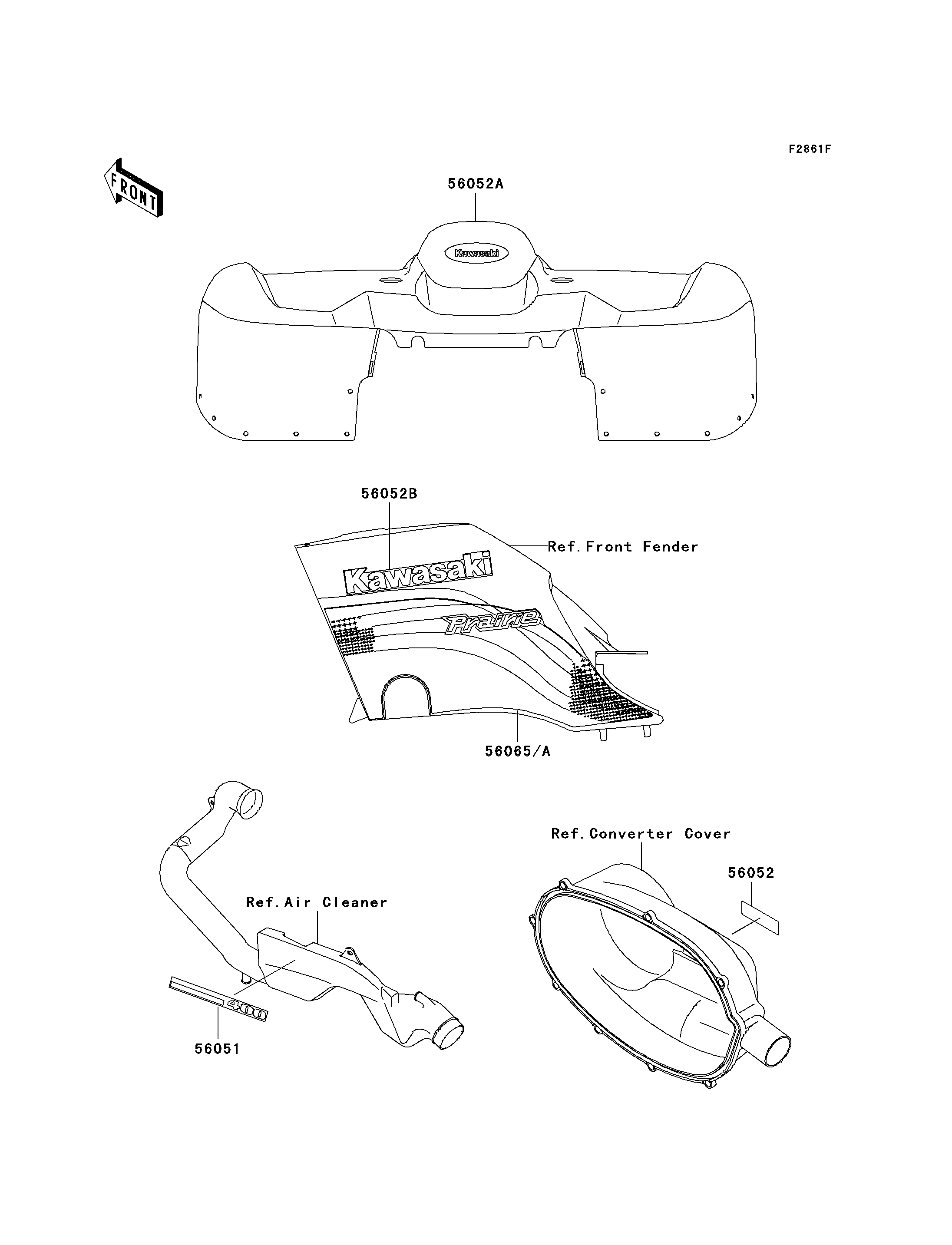

56051
56052
56052A
56052B
56065
56065A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
MARK,AIR CLEANER COVER 56051 56051-1858 1
MARK,BELT CONVERTER COVER 56052 56052-1051 1
MARK,FR FENDER,KAWASAKI 56052A 56052-1504 1
MARK,FUEL TANK COVER,KAWASAKI 56052B 56052-1509 2
PATTERN,FUEL TANK COVER,LH 56065 56065-1157 1
PATTERN,FUEL TANK COVER,RH 56065A 56065-1158 1
