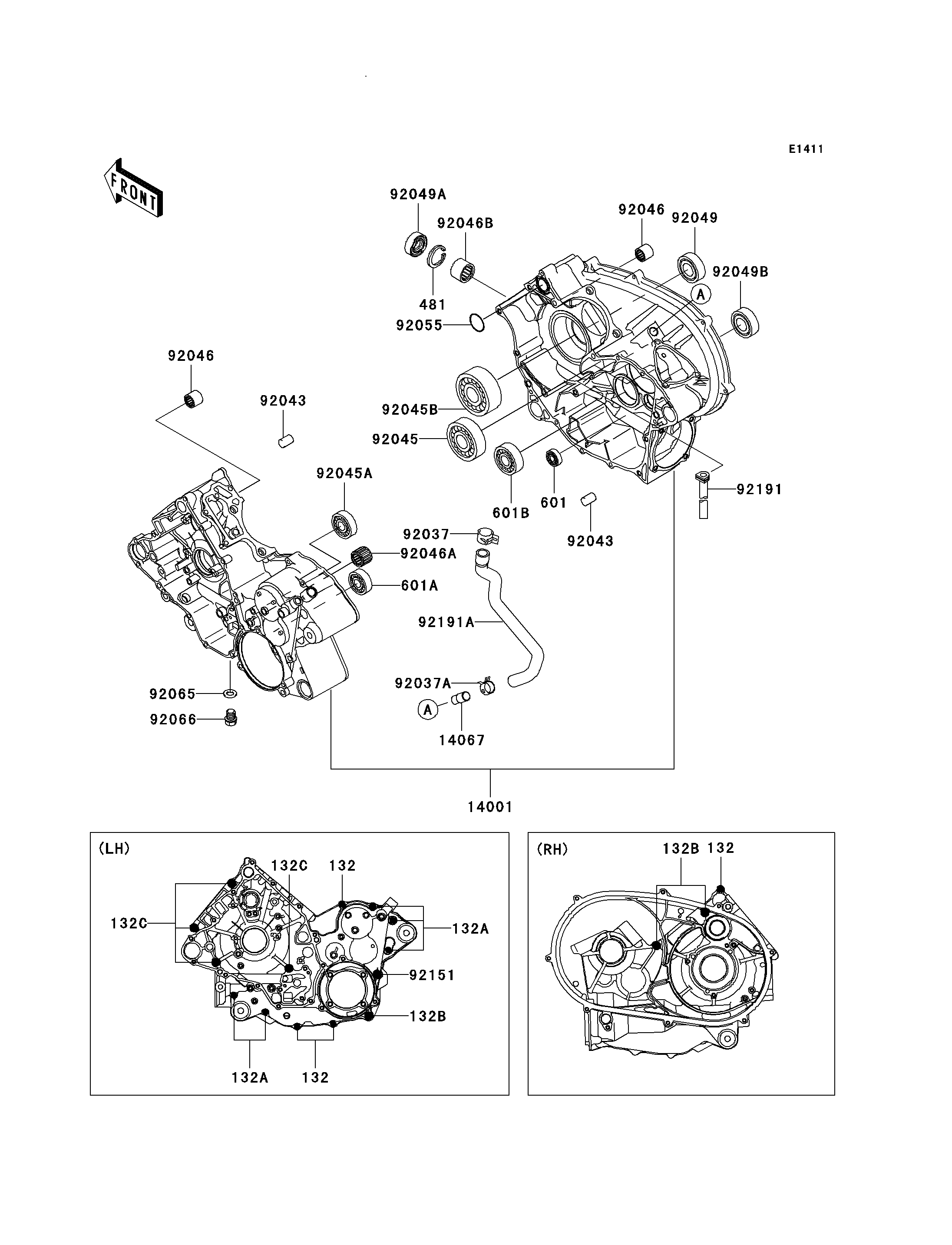

2003 Prairie 650 4X4 - Crankcase

DOWNLOAD PDF
SELECT A NEW PART
132
132
132
132A
132A
132B
132B
132C
132C
481
601
601A
601B
14001
14067
92037
92037A
92043
92043
92045
92045A
92045B
92046
92046
92046A
92046B
92049
92049A
92049B
92055
92065
92066
92151
92191
92191A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL 132 132Y0640 4
BOLT-FLANGED-SMALL 132A 132Y0665 5
BOLT-FLANGED-SMALL 132B 132Y08110 3
BOLT-FLANGED-SMALL 132C 132Y0875 4
CIRCLIP-TYPE-C,37MM 481 481J3700 1
BEARING-BALL 601 601A6000 1
BEARING-BALL,#6004 601A 601A6004 1
BEARING-BALL,#6304 601B 601A6304 1
SET-CRANKCASE 14001 14001-1294 1
FITTING,BREATHER 14067 14067-006 1
CLAMP 92037 92037-1730 1
CLAMP 92037A 92037-1860 1
PIN 92043 92043-1506 2
BEARING-BALL,6306SH2 92045 92045-1190 1
BEARING-BALL 92045A 92045-1389 1
BEARING-BALL 92045B 92045-1415 1
BEARING-NEEDLE,TA202715ZE 92046 92046-1118 2
BEARING-NEEDLE 92046A 92046-1143 1
BEARING-NEEDLE 92046B 92046-1277 1
SEAL-OIL,TC35508 92049 92049-1452 1
SEAL-OIL 92049A 92049-1570 1
SEAL-OIL 92049B 92049-1575 1
RING-O,25.7X2.4 92055 92055-1136 1
GASKET,12X22X2,DRAIN PLUG 92065 92065-097 1
PLUG,OIL DRAIN,12X15 92066 92066-1174 1
BOLT,8MM 92151 92151-1689 1
TUBE,OIL RETURN 92191 92191-1449 1
TUBE,BREATHER 92191A 92191-1740 1
