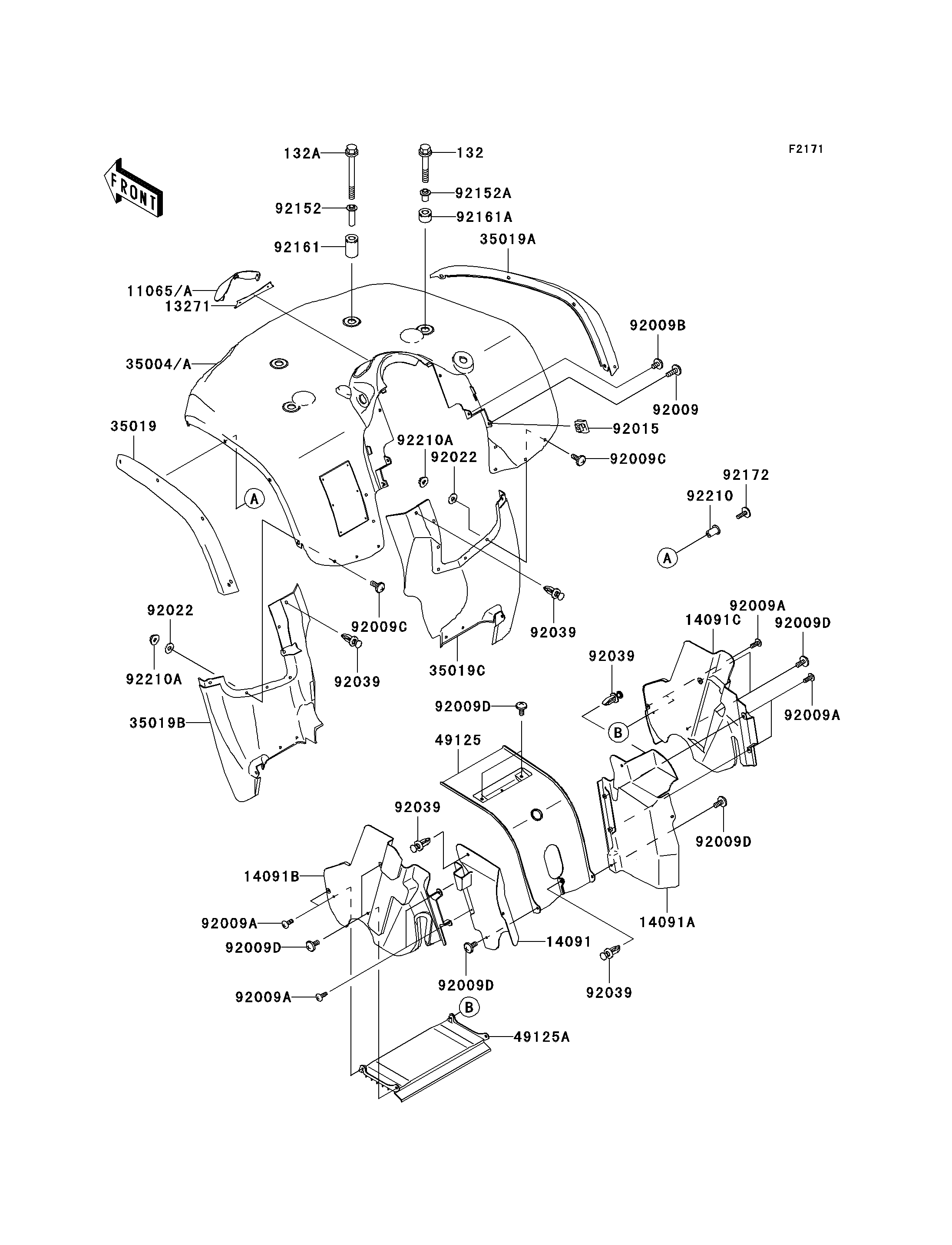

2003 Prairie 650 4X4 - Front Fender(s)

DOWNLOAD PDF
SELECT A NEW PART
132
132A
11065
11065A
13271
14091
14091A
14091B
14091C
35004
35004A
35019
35019A
35019B
35019C
49125
49125A
92009
92009A
92009A
92009A
92009A
92009B
92009C
92009C
92009D
92009D
92009D
92009D
92009D
92015
92022
92022
92039
92039
92039
92039
92039
92152
92152A
92161
92161A
92172
92210
92210A
92210A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL,8X50 132 132J0850 2
BOLT-FLANGED-SMALL 132A 132J0880 2
CAP,FR FENDER,A.RED 11065 11065-1204-260 1
CAP,FR FENDER,H.GREEN 11065A 11065-1204-6A 1
PLATE,FR FENDER CAP 13271 13271-1640 1
COVER,SIDE,RR,LH 14091 14091-1282 1
COVER,SIDE,RR,RH 14091A 14091-1283 1
COVER,SIDE,FR,LH 14091B 14091-1428 1
COVER,SIDE,FR,RH 14091C 14091-1429 1
FENDER-FRONT,A.RED 35004 35004-1452-260 1
FENDER-FRONT,H.GREEN 35004A 35004-1452-6A 1
FLAP,FR,SIDE,LH,F.BLACK 35019 35019-1365-6Z 1
FLAP,FR,SIDE,RH,F.BLACK 35019A 35019-1366-6Z 1
FLAP,FR,RR,LH,F.BLACK 35019B 35019-1391-6Z 1
FLAP,FR,RR,RH,F.BLACK 35019C 35019-1392-6Z 1
SHROUD,FR,UPP 49125 49125-1081 1
SHROUD,FR,LWR 49125A 49125-1087 1
SCREW,6X18,BLACK 92009 92009-1181 2
SCREW,TAPPING,5X14 92009A 92009-1197 8
SCREW,6X10 92009B 92009-1402 2
SCREW,6X16 92009C 92009-1621 12
SCREW,6X14 92009D 92009-1662 8
NUT,CLAMP,6MM 92015 92015-1678 2
WASHER,6.5X16X1.0 92022 92022-1093 12
RIVET 92039 92039-1229 5
COLLAR,L=65 92152 92152-1226 2
COLLAR,L=33.7 92152A 92152-1227 2
DAMPER,L=58.5 92161 92161-1165 2
DAMPER,L=25.5 92161A 92161-1166 2
SCREW,5X18 92172 92172-1063 8
NUT,POP,5MM 92210 92210-1227 8
NUT,6MM 92210A 92210-1368 12
