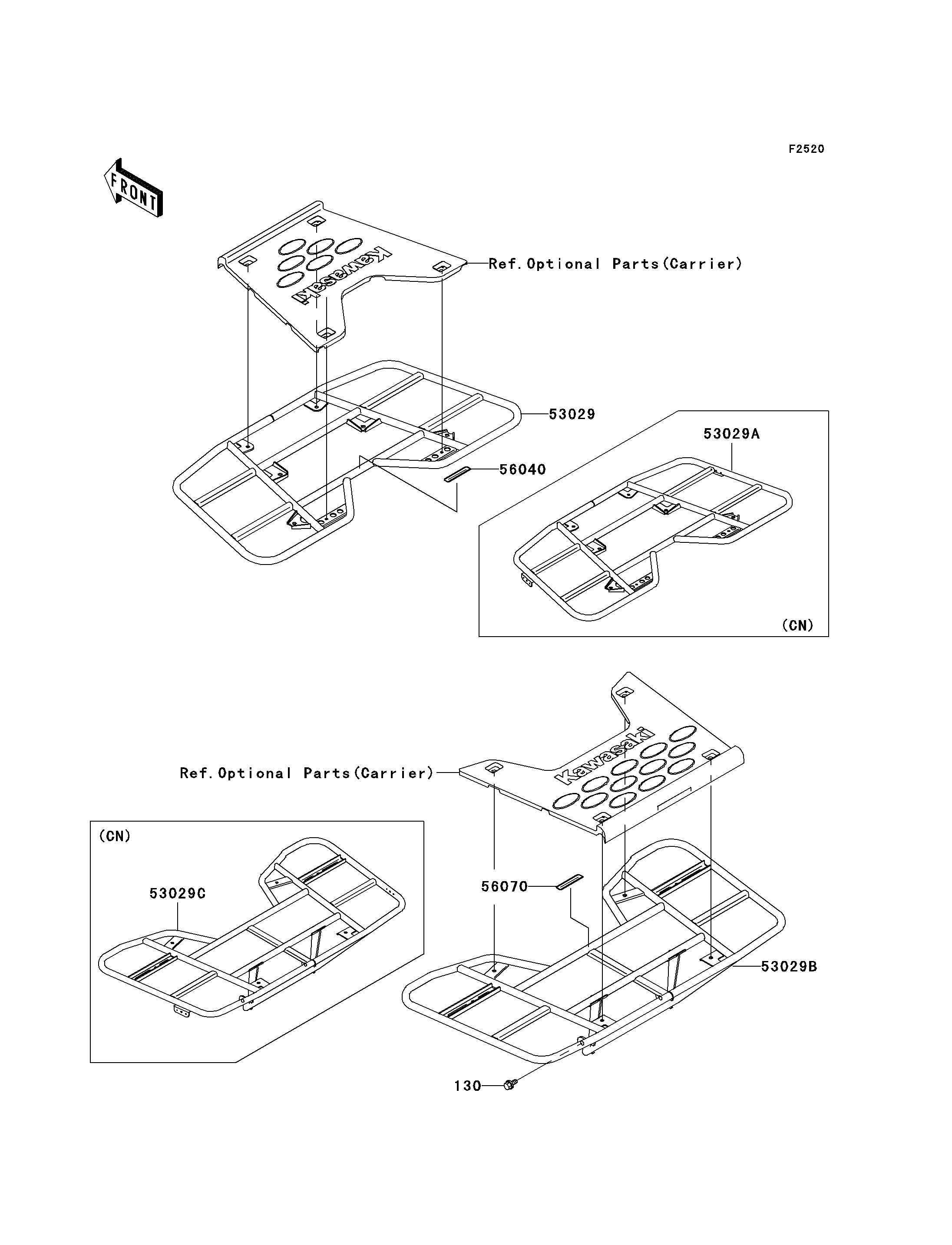

130
56040
56070
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,10X20 130 130P1020 2
LABEL-WARNING,MAXIMUM LOAD 56040 56040-1321 1
LABEL-WARNING,MAXIMUM LOAD 56070 56070-1252 1
CARRIER,FR,S.GOLD 53029 53029-1235-UF 1 CAUS
CARRIER,FR,S.GOLD 53029A 53029-1239-UF 1 CN
CARRIER,RR,S.GOLD 53029B 53029-1244-UF 1 CAUS
CARRIER,RR,S.GOLD 53029C 53029-1245-UF 1 CN
