130
130
130A
130A
132
132A
132A
55020
55020A
55020B
55020C
55020D
92002
92002
92002
92002
92075
92075
92075
92075
92075
92075A
92075B
92150

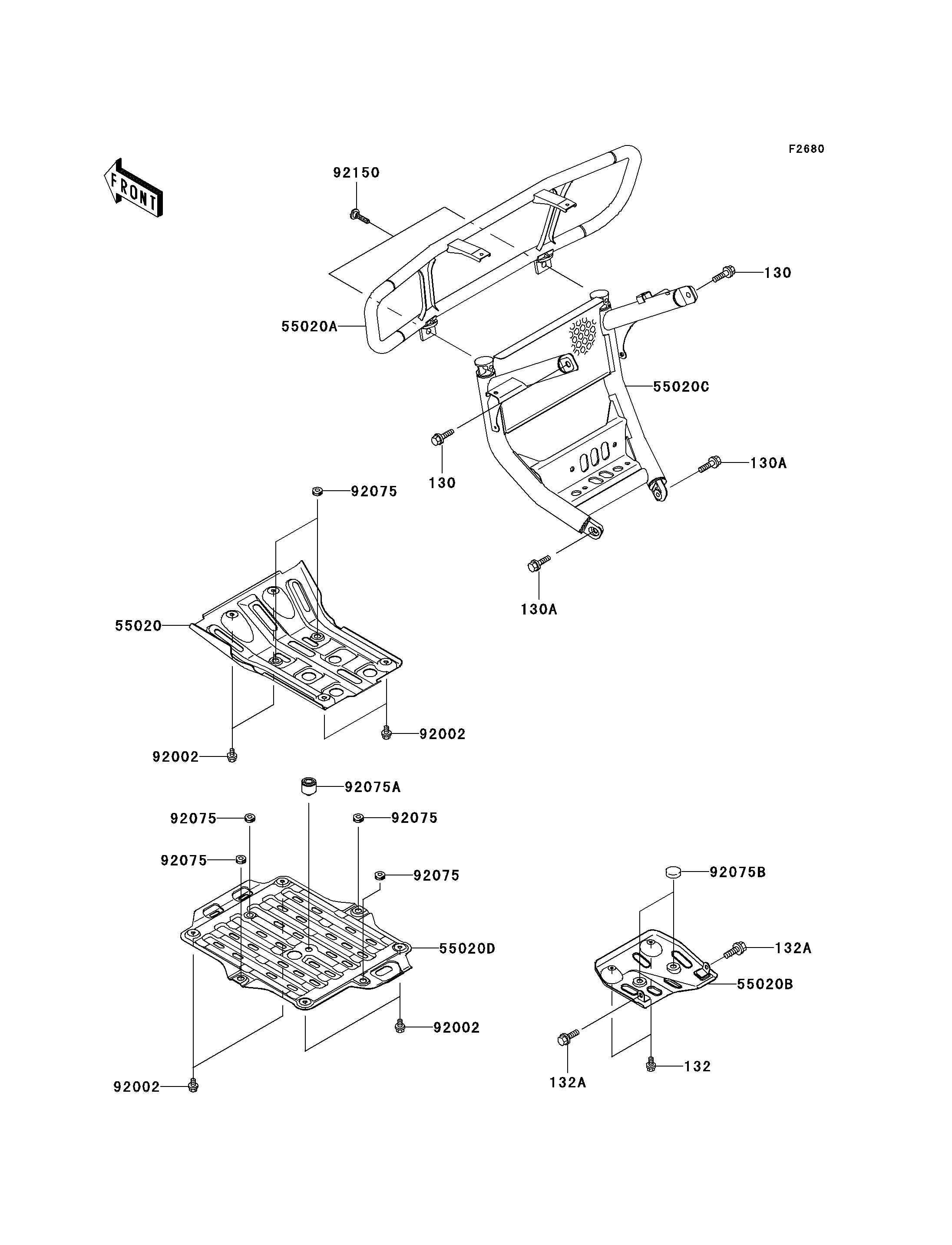

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,8X20 130 130T0820 2
BOLT-FLANGED 130A 130Z0820 2
BOLT-FLANGED-SMALL 132 132J0612 2
BOLT-FLANGED-SMALL,8X16 132A 132J0816 2
GUARD,FRONT SKID 55020 55020-0001 1
GUARD,FR,UPP,S.GOLD 55020A 55020-1741-UF 1
GUARD,SWING ARM 55020B 55020-1756 1
GUARD,FR,LWR,S.GOLD 55020C 55020-1760-UF 1
GUARD,ENGINE,UNDER 55020D 55020-1808 1
BOLT,6X10 92002 92002-1449 8
DAMPER 92075 92075-051 6
DAMPER,STAND,CNT 92075A 92075-1002 1
DAMPER,SIDE STAND 92075B 92075-157 2
BOLT,DISC PLATE,8X30 92150 92150-1728 2
