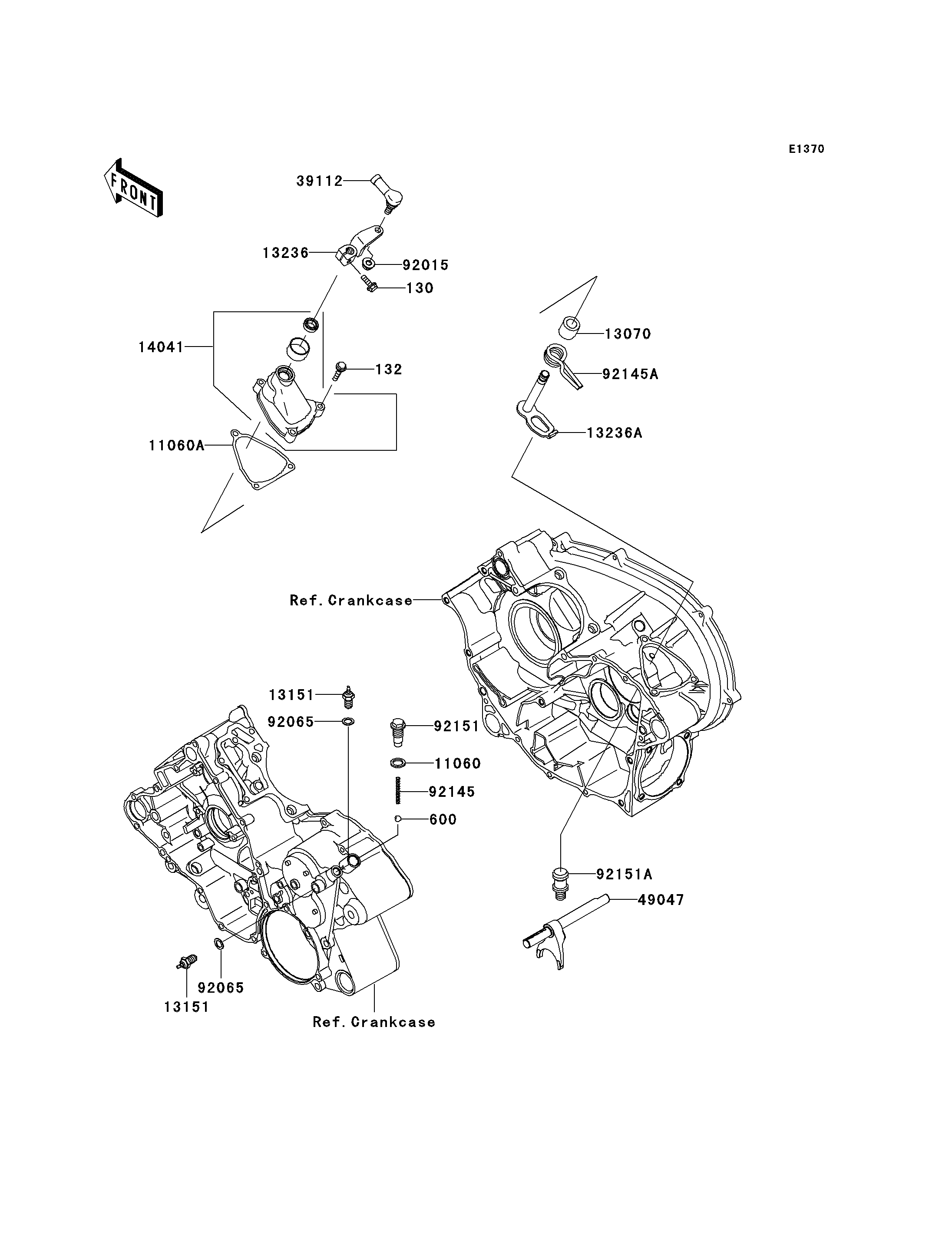

2003 Prairie 650 4X4 Advantage Classic - Gear Change Mechanism

DOWNLOAD PDF
SELECT A NEW PART
130
132
600
11060
11060A
13070
13151
13151
13236
13236A
14041
39112
49047
92015
92065
92065
92145
92145A
92151
92151A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED 130 130Z0620 1
BOLT-FLANGED-SMALL 132 132Y0630 3
BALL-STEEL,5/16" 600 600A1000 1
GASKET,ROCKER SHAFT 11060 11060-1287 1
GASKET,CHANGE LEVER COVER 11060A 11060-1956 1
GUIDE 13070 13070-1352 1
SWITCH-COMP,NEUTRAL 13151 13151-1080 2
LEVER-COMP,CHANGE LEVER 13236 13236-1343 1
LEVER-COMP,CHANGE 13236A 13236-1377 1
COVER-COMP,CHANGE LEVER 14041 14041-1136 1
RODEND-TIE,CHANGE LEVER 39112 39112-1080 1
ROD-SHIFT 49047 49047-1104 1
NUT,8MM 92015 92015-1432 1
GASKET,10.5X16X1 92065 92065-058 2
SPRING,CHANGE POSITION 92145 92145-1297 1
SPRING,CHANGE LEVER 92145A 92145-1299 1
BOLT,CHANGE POSITION 92151 92151-1687 1
BOLT,SHIFT ROD 92151A 92151-1699 1
