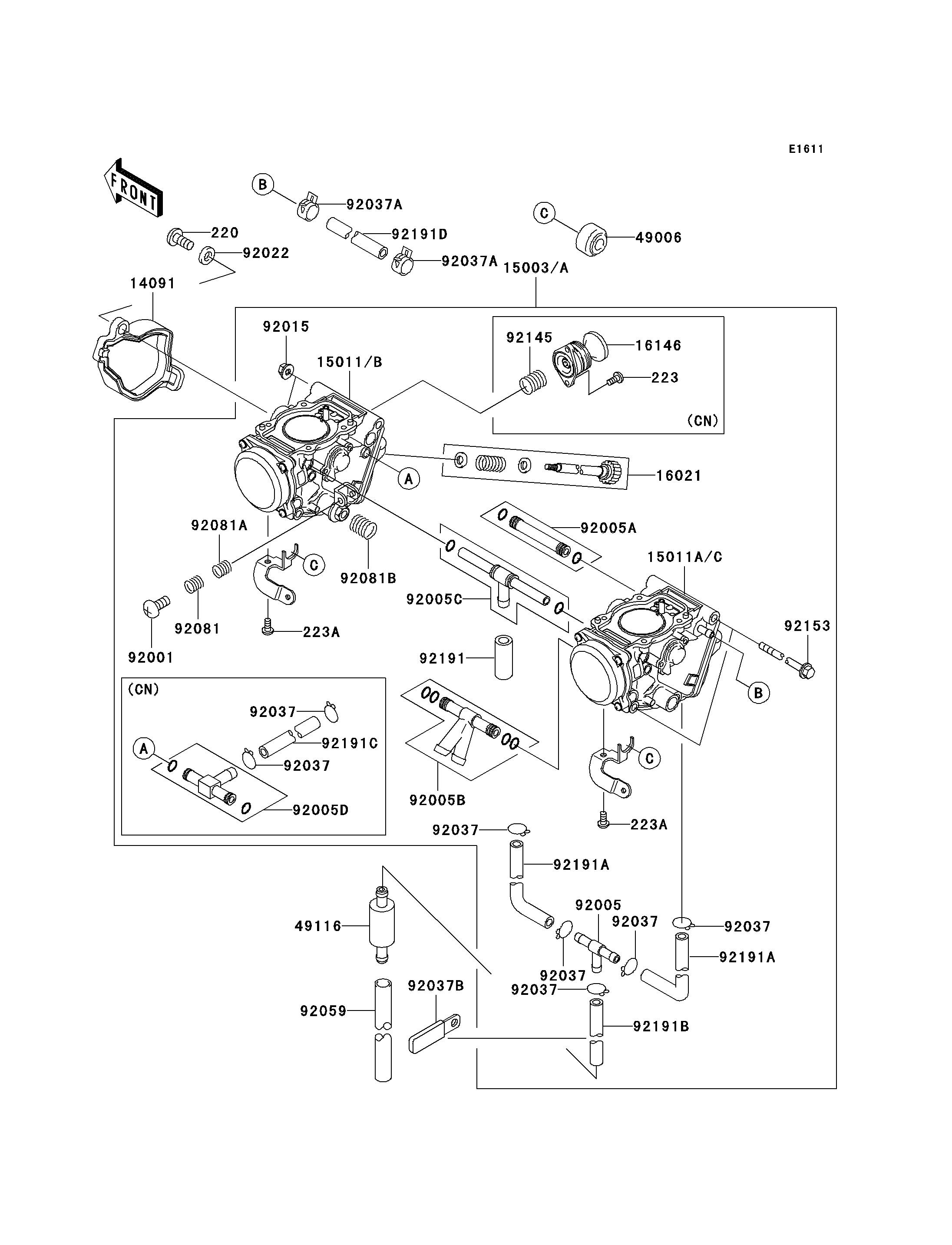

2003 Prairie 650 4X4 Advantage Classic - Carburetor

DOWNLOAD PDF
SELECT A NEW PART
14091
14091
16021
16021
49006
49006
49116
49116
92001
92001
92005
92005
92005A
92005A
92005B
92005B
92005C
92005C
92015
92015
92022
92022
92037A
92037A
92037A
92037A
92037B
92037B
92059
92059
92081
92081
92081A
92081A
92081B
92081B
92153
92153
92191
92191
92191A
92191A
92191A
92191A
220
220
223A
223A
223A
223A
92191B
92191B
92191D
92191D
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER,THROTTLE CABLE 14091 14091-1196 1
SCREW-THROTTLE STOP 16021 16021-1238 1
BOOT,STARTER CABLE 49006 49006-1353 2
VALVE-ASSY 49116 49116-1126 1
BOLT,THROTTLE ADJUST 92001 92001-1998 1
FITTING,FUEL,T-TYPE 92005 92005-1112 1
FITTING 92005A 92005-1375 1
FITTING 92005B 92005-1376 1
FITTING 92005C 92005-1385 1
NUT,FLANGED,5MM 92015 92015-1259 2
WASHER,5.2X13X1 92022 92022-1380 1
CLAMP,TUBE 92037A 92037-1505 2
CLAMP,L=45 92037B 92037-1539 1
TUBE,7X10X100 92059 92059-1736 1
SPRING,THROTTLE ADJUST UPP 92081 92081-1620 1
SPRING,THROTTLE ADJUST LWR 92081A 92081-1621 1
SPRING,THROTTLE ADJUST CNT 92081B 92081-1622 1
BOLT,5X143 92153 92153-1068 2
TUBE,7X11X25 92191 92191-1672 1
TUBE,4.5X8X65 92191A 92191-1673 2
SCREW-PAN-CROS 220 220B0408 1
SCREW-PAN-WS-CROS 223A 223D0408 2
TUBE,4.5X8X420 92191B 92191-1674 1
TUBE,5.3X10.3X200 92191D 92191-1694 1
CARBURETOR-ASSY 15003 15003-1755 1 US
CARBURETOR-ASSY 15003A 15003-1756 1 CN
CARBURETOR,FR 15011 15011-1991 1 US
CARBURETOR,RR 15011A 15011-1992 1 US
CARBURETOR,FR 15011B 15011-1993 1 CN
CARBURETOR,RR 15011C 15011-1994 1 CN
COVER-ASSY,PRIMING 16146 16146-1225 1 CN
FITTING 92005D 92005-1393 1 CN
CLAMP,TUBE 92037 92037-1201 5 US
CLAMP,TUBE 92037 92037-1201 7 CN
SPRING,PRIMING 92145 92145-1451 1 CN
SCREW-PAN-WS-CROS 223 223C0412 2 CN
TUBE,4.5X8.5X35 92191C 92191-1676 1 CN
