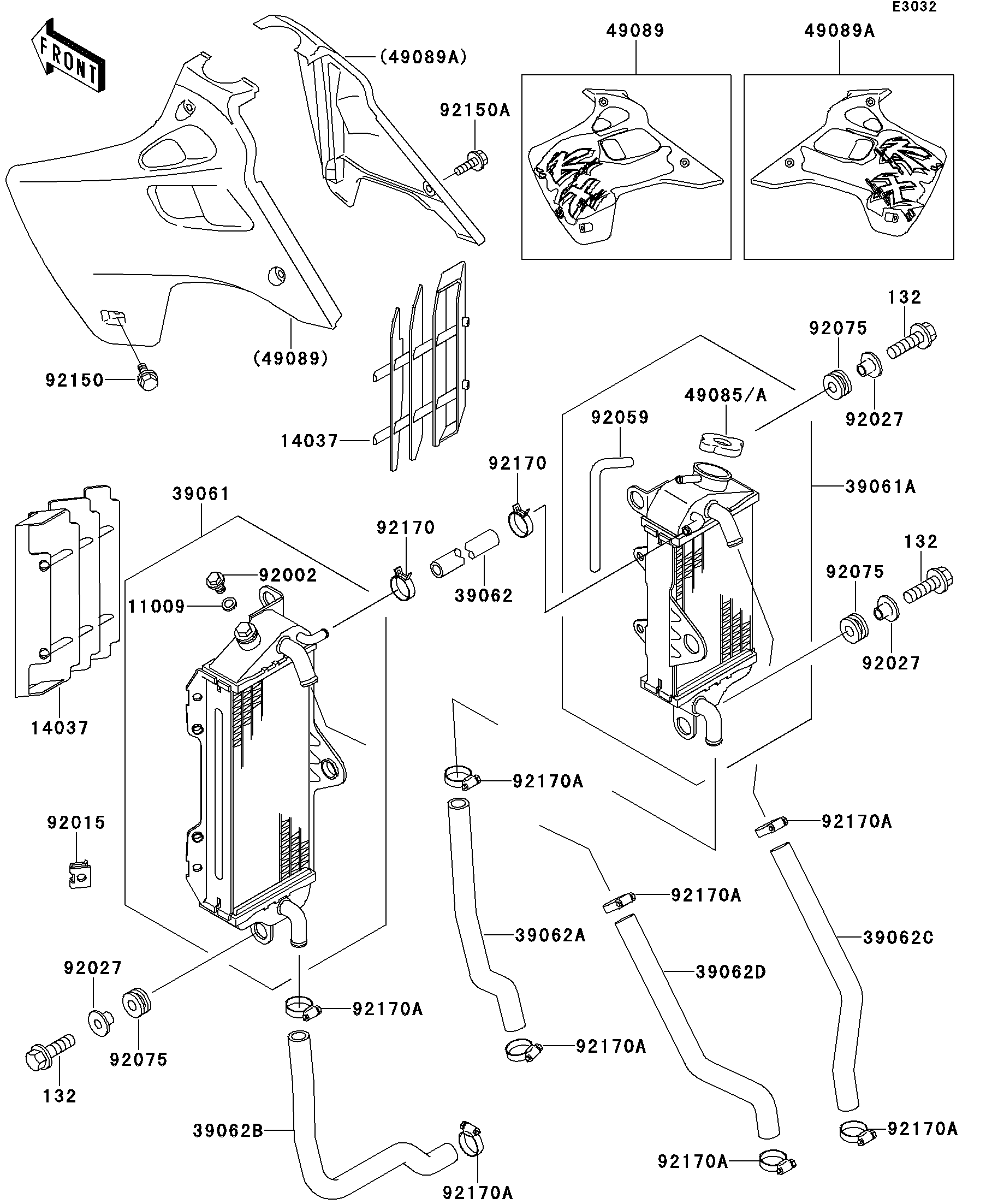

1993 KX250 - Radiator

DOWNLOAD PDF
SELECT A NEW PART
11009
132
132
132
14037
14037
39061
39061A
39062
39062A
39062B
39062C
39062D
49085
49085A
49089
49089A
92002
92015
92027
92027
92027
92059
92075
92075
92075
92150
92150A
92170
92170
92170A
92170A
92170A
92170A
92170A
92170A
92170A
92170A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,DRAIN BOLT 11009 11009-1152 1
BOLT-FLANGED-SMALL 132 132G0620 6
SCREEN,L.GREEN 14037 14037-1099-6W 2
RADIATOR-ASSY,LH 39061 39061-1173 1
RADIATOR-ASSY,RH 39061A 39061-1175 1
HOSE-COOLING,RADIATOR,LH-RH 39062 39062-1368 1
HOSE-COOLING,RADIATOR,R-PUMP 39062A 39062-1370 1
HOSE-COOLING,RADIATOR,L-PUMP 39062B 39062-1470 1
HOSE-COOLING,HEAD-RADIATOR,RH 39062C 39062-1501 1
HOSE-COOLING,HEAD-RADIATOR,LH 39062D 39062-1502 1
CAP-ASSY-PRESSURE 49085 49085-1003 1
CAP-ASSY-PRESSURE,P=1.6 49085A 49085-1059 1 (OPTION)
SHROUD-ENGINE,LH,L.GREEN 49089 49089-5162-6W 1
SHROUD-ENGINE,RH,L.GREEN 49089A 49089-5163-6W 1
BOLT,RADIATOR DRAIN 92002 92002-1682 1
NUT 92015 92015-1487 2
COLLAR,L=11.1 92027 92027-194 6
TUBE,5X9X800 92059 92059-1383 1
DAMPER 92075 92075-209 6
BOLT,6X14 92150 92150-1392 2
BOLT,6X12 92150A 92150-1435 4
CLAMP 92170 92170-1167 2
CLAMP 92170A 92170-1283 8
