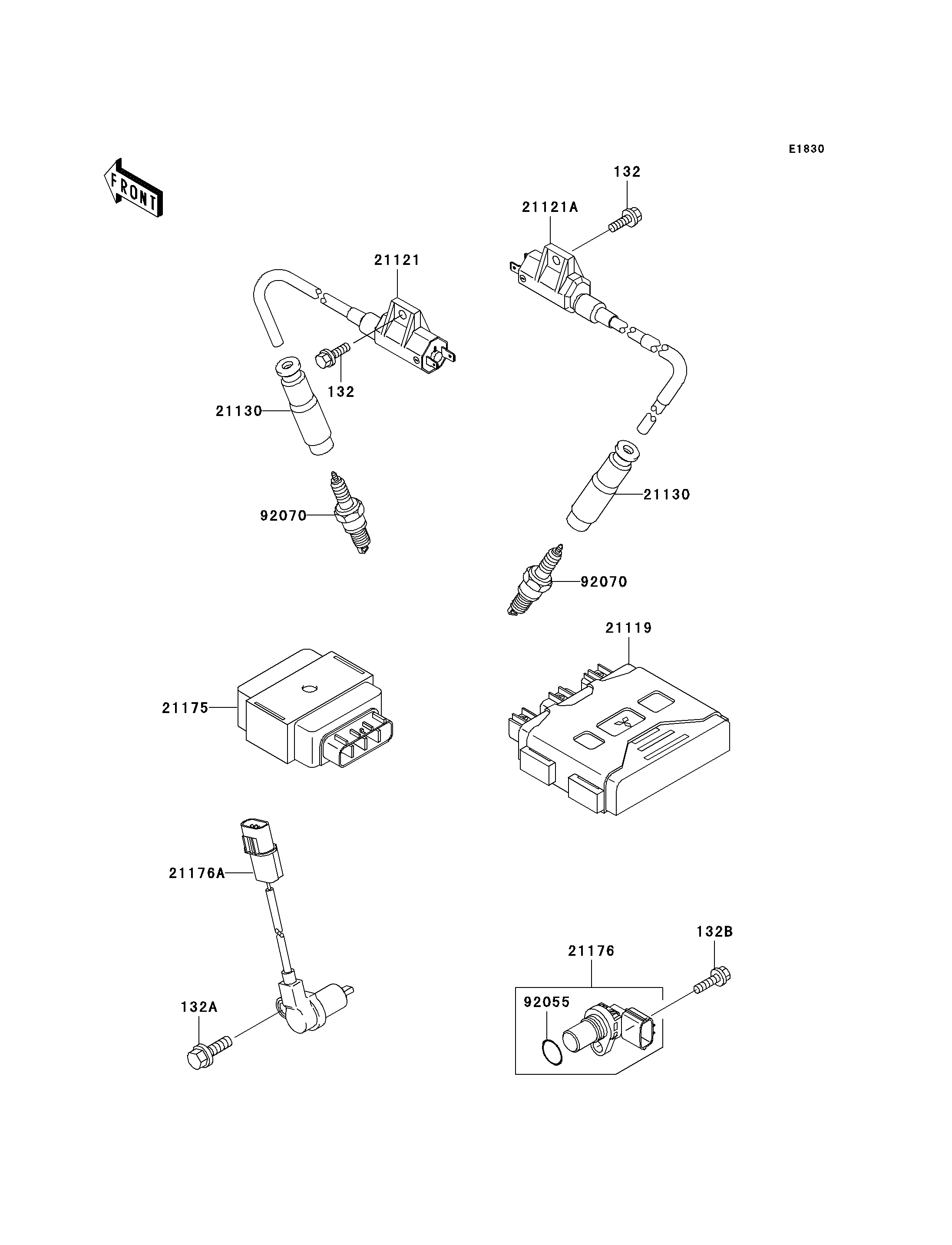

2003 Prairie 650 4X4 Advantage Classic - Ignition System

132
132
132A
132B
21119
21121
21121A
21130
21130
21175
21176
21176A
92055
92070
92070
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL 132 132H0616 2
BOLT-FLANGED-SMALL 132A 132H0822 1
BOLT-FLANGED-SMALL 132B 132Y0620 1
IGNITER 21119 21119-0004 1
COIL-IGNITION,FR 21121 21121-1292 1
COIL-IGNITION,RR 21121A 21121-1306 1
CAP-SPARK PLUG 21130 21130-1071 2
CONTROL UNIT-ELECTRONIC 21175 21175-1098 1
SENSOR,SPEED 21176 21176-1104 1
SENSOR,REVERSE 21176A 21176-1109 1
RING-O 92055 92055-1718 1
PLUG-SPARK,CR7E(NGK) 92070 92070-1209 2
