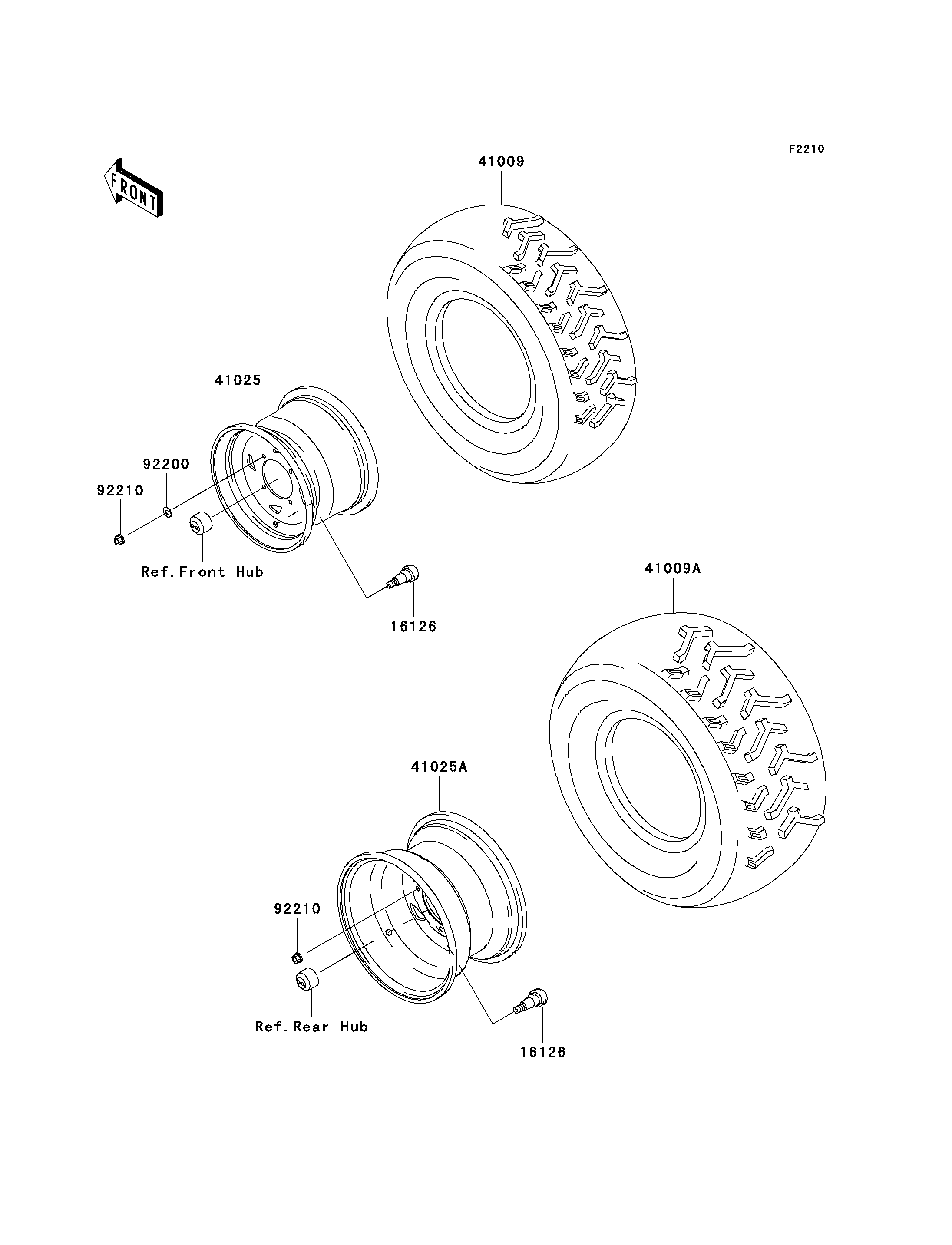

2003 Prairie 650 4X4 Advantage Classic - Wheels/Tires

16126
16126
41009
41009A
41025
41025A
92200
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
VALVE 16126 16126-4001 4
TIRE,FR,AT25X8-12,KT121A(D) 41009 41009-1117 2
TIRE,RR,AT25X10-12,KT127A 41009A 41009-1380 2
RIM,FR,12X6.0,S.GOLD 41025 41025-1375-UF 2
RIM,RR,12X7.5AT,S.GOLD 41025A 41025-1426-UF 2
WASHER,10.5X25X1.6 92200 92200-1595 8
NUT,FLANGED,10MM 92210 92210-1325 16
