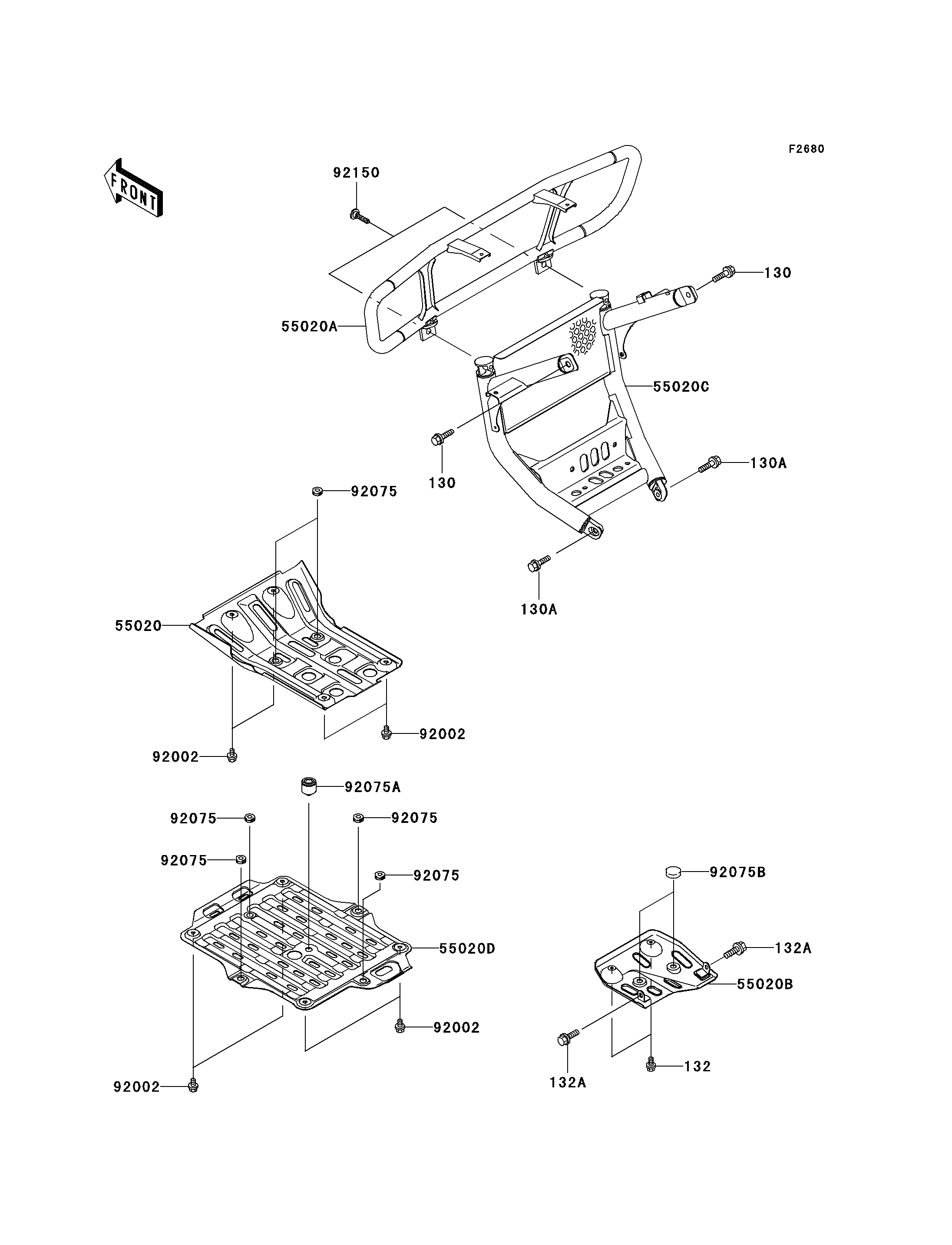

2003 Prairie 650 4X4 Advantage Classic - Guard(s)
130
130
130A
130A
132
132A
132A
55020
55020A
55020B
55020C
55020D
92002
92002
92002
92002
92075
92075
92075
92075
92075
92075A
92075B
92150
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED,8X20 | 130 | 130T0820 | 2 | ||
| BOLT-FLANGED | 130A | 130Z0820 | 2 | ||
| BOLT-FLANGED-SMALL | 132 | 132J0612 | 2 | ||
| BOLT-FLANGED-SMALL,8X16 | 132A | 132J0816 | 2 | ||
| GUARD,FRONT SKID | 55020 | 55020-0001 | 1 | ||
| GUARD,FR,UPP,S.GOLD | 55020A | 55020-1741-UF | 1 | ||
| GUARD,SWING ARM | 55020B | 55020-1756 | 1 | ||
| GUARD,FR,LWR,S.GOLD | 55020C | 55020-1760-UF | 1 | ||
| GUARD,ENGINE,UNDER | 55020D | 55020-1808 | 1 | ||
| BOLT,6X10 | 92002 | 92002-1449 | 8 | ||
| DAMPER | 92075 | 92075-051 | 6 | ||
| DAMPER,STAND,CNT | 92075A | 92075-1002 | 1 | ||
| DAMPER | 92075B | 92075-157 | 2 | ||
| BOLT,DISC PLATE,8X30 | 92150 | 92150-1728 | 2 |
