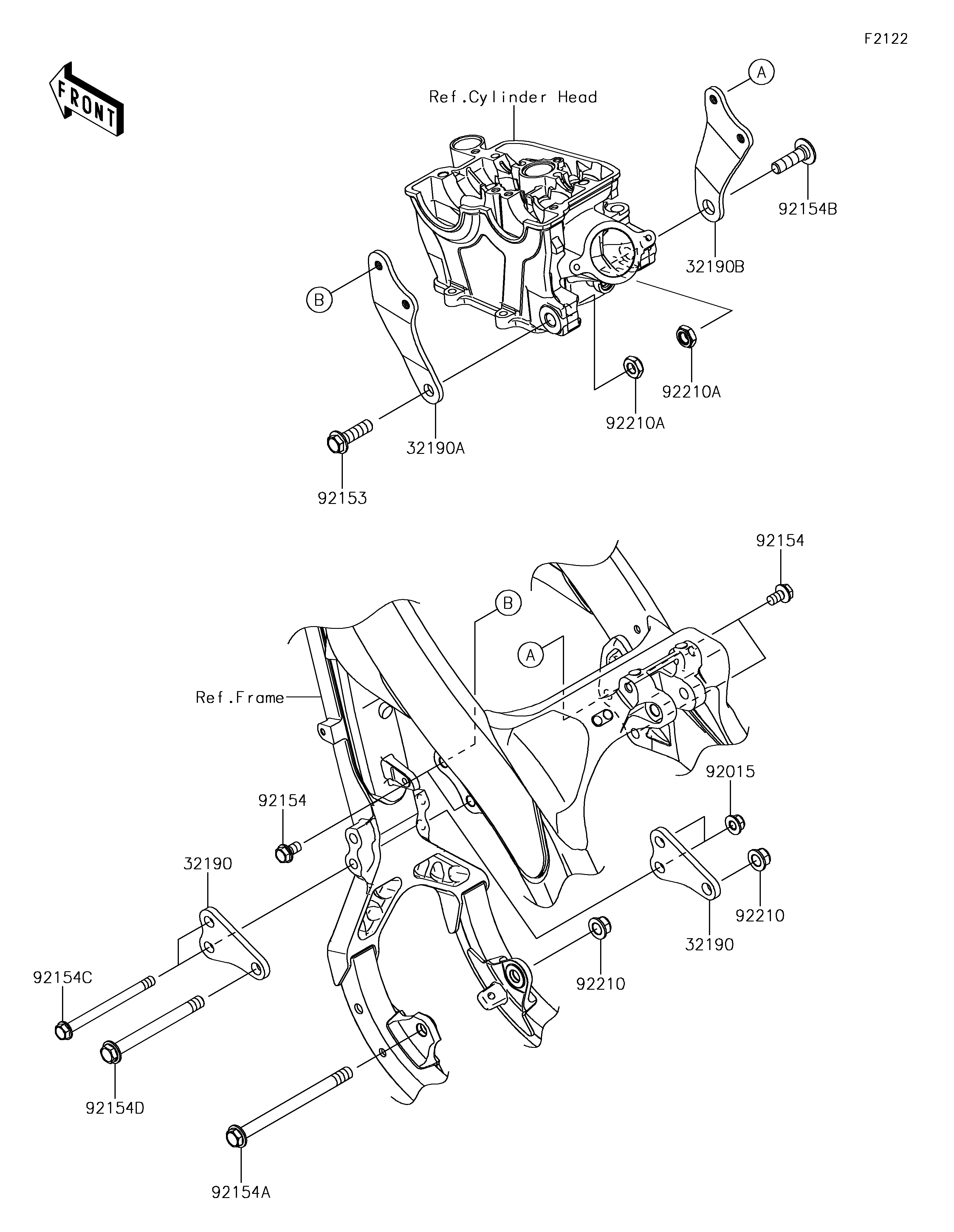

Parts Diagrams |
32190
32190
32190A
32190B
92015
92153
92154
92154
92154A
92154B
92154C
92154D
92210
92210
92210A
92210A
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET-ENGINE,FR | 32190 | 32190-0714 | 2 | ||
| BRACKET-ENGINE,UPP,LH | 32190A | 32190-0715 | 1 | ||
| BRACKET-ENGINE,UPP,RH | 32190B | 32190-0717 | 1 | ||
| NUT,8MM | 92015 | 92015-1432 | 2 | ||
| BOLT,FLANGED,10X35 | 92153 | 92153-0802 | 1 | ||
| BOLT,FLANGED,8X14 | 92154 | 92154-0380 | 4 | ||
| BOLT,FLANGED,10X130 | 92154A | 92154-0517 | 1 | ||
| BOLT,SOCKET,10X35 | 92154B | 92154-2102 | 1 | ||
| BOLT,FLANGED,8X102 | 92154C | 92154-2155 | 2 | ||
| BOLT,FLANGED,10X104 | 92154D | 92154-2156 | 1 | ||
| NUT,LOCK,FLANGED,10MM | 92210 | 92210-1080 | 2 | ||
| NUT,LOCK,10MM | 92210A | 92210-1184 | 2 |
| BRACKET-ENGINE,FR | |
| REF # | 32190 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BRACKET-ENGINE,UPP,LH | |
| REF # | 32190A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET-ENGINE,UPP,RH | |
| REF # | 32190B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,8MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,10X35 | |
| REF # | 92153 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,8X14 | |
| REF # | 92154 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,10X130 | |
| REF # | 92154A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,10X35 | |
| REF # | 92154B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,8X102 | |
| REF # | 92154C |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,10X104 | |
| REF # | 92154D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,LOCK,FLANGED,10MM | |
| REF # | 92210 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT,LOCK,10MM | |
| REF # | 92210A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
