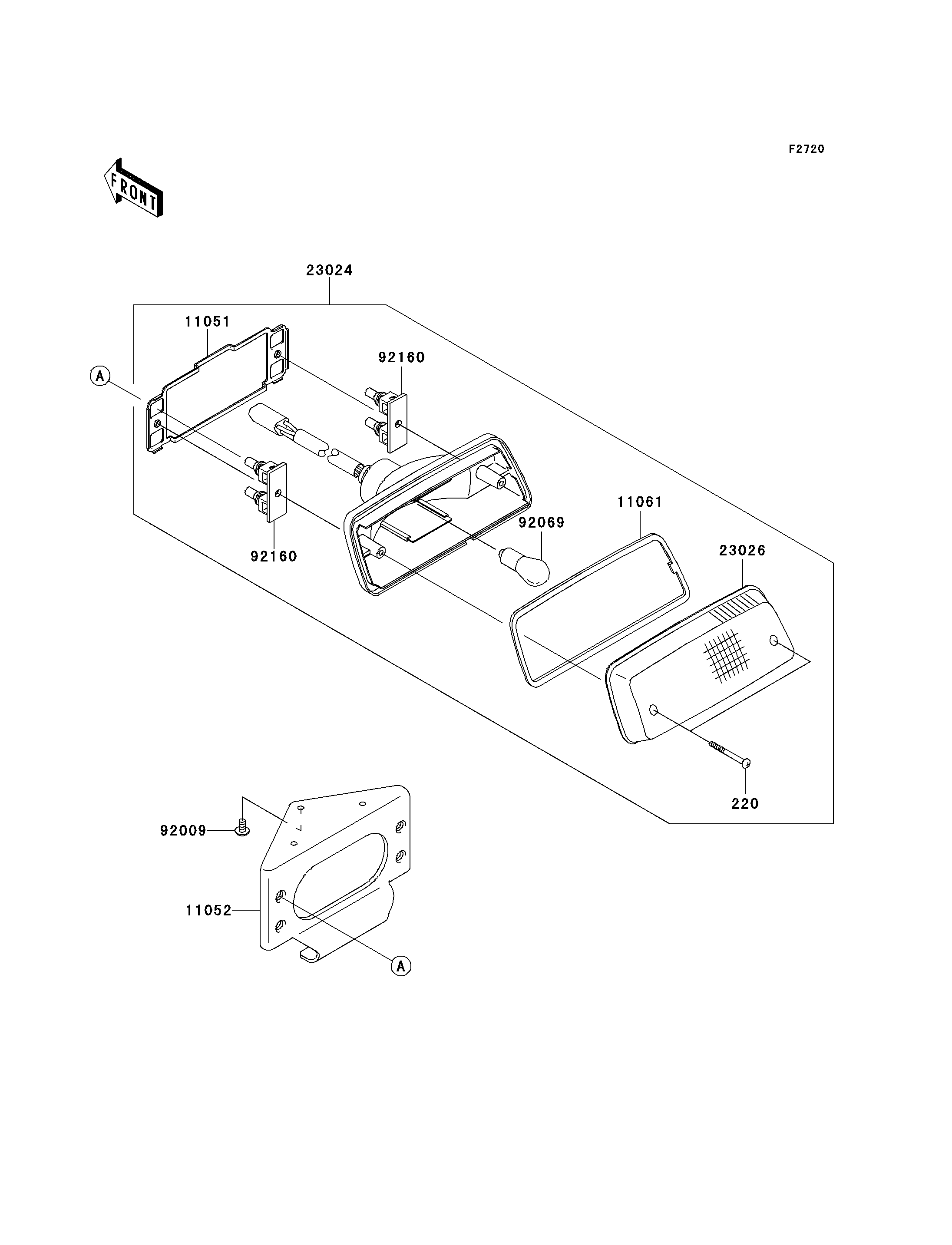

2003 Prairie 650 4X4 Advantage Classic - Taillight(s)

220
11051
11052
11061
23024
23026
92009
92069
92160
92160
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SCREW-PAN-CROS 220 220B0440 2
BRACKET,TAIL LAMP 11051 11051-1870 1
BRACKET,TAIL LAMP 11052 11052-1360 1
GASKET,TAIL LAMP LENS 11061 11061-0055 1
LAMP-ASSY-TAIL 23024 23024-1130 1
LENS,TAIL LAMP 23026 23026-1230 1
SCREW,TAPPING,5X10 92009 92009-1332 3
BULB,12V 21/5W 92069 92069-063 1
DAMPER,TAIL LAMP 92160 92160-1053 2
