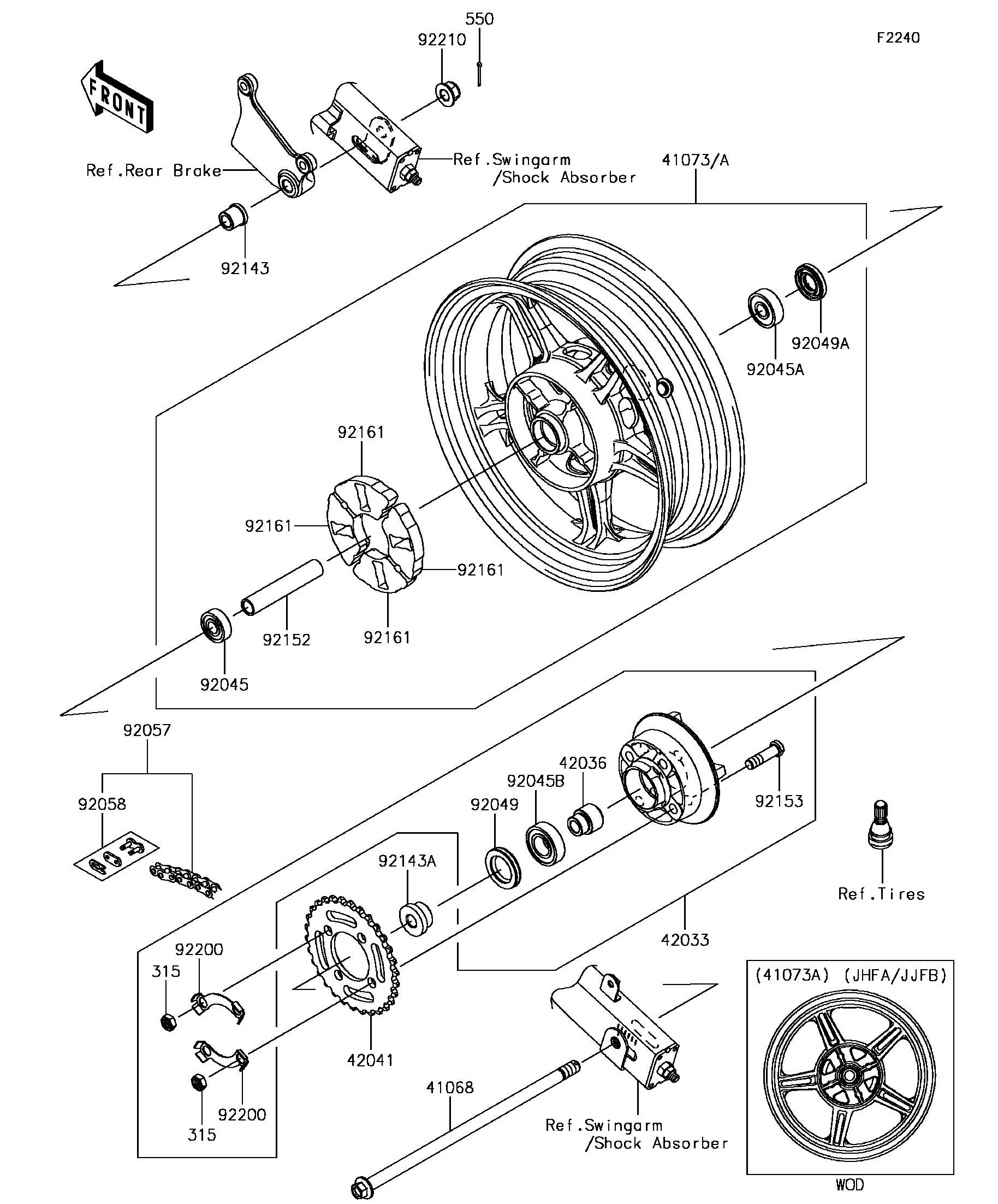

2018 Z125 PRO KRT EDITION - Rear Wheel/Chain

DOWNLOAD PDF
SELECT A NEW PART
315
315
41068
41073A
42033
42036
42041
550
92045
92045A
92045B
92049
92049A
92057
92058
92143
92143A
92152
92153
92161
92161
92161
92161
92200
92200
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
NUT-HEX-FINE,10MM 315 315BA1000 4
AXLE,12X290 41068 41068-0610 1
WHEEL-ASSY,RR,G.BLACK 41073A 41073-0673-QT 1
COUPLING-ASSY,RR HUB 42033 42033-0575 1
SLEEVE,RR HUB COUPLING,L=29 42036 42036-1292 1
SPROCKET-HUB,30T 42041 42041-0154 1
PIN-COTTER,2.5X20 550 550AA2520 1
BEARING-BALL,6201-LLHC3P6 92045 92045-0161 1
BEARING-BALL,6301-LLHC3P6 92045A 92045-0162 1
BEARING-BALL,6004-LUC3P6 92045B 92045-0163 1
SEAL-OIL,SC26X42X8 92049 92049-1490 1
SEAL-OIL,KCY19X37X7 92049A 92049-1491 1
CHAIN,DRIVE,DID420AD 92057 92057-0204 1
JOINT-CHAIN,DRIVE 92058 92058-0026 1
COLLAR,RR AXLE,L=19 92143 92143-1420 1
COLLAR,RR AXLE,LH,L=17 92143A 92143-1533 1
COLLAR,12.7X17.3X94.5 92152 92152-2140 1
BOLT,10X36 92153 92153-1120 4
DAMPER,RR HUB SHOCK 92161 92161-0084 4
WASHER,LOCK 92200 92200-0903 2
NUT,LOCK,FLANGED,12MM 92210 92210-1513 1
