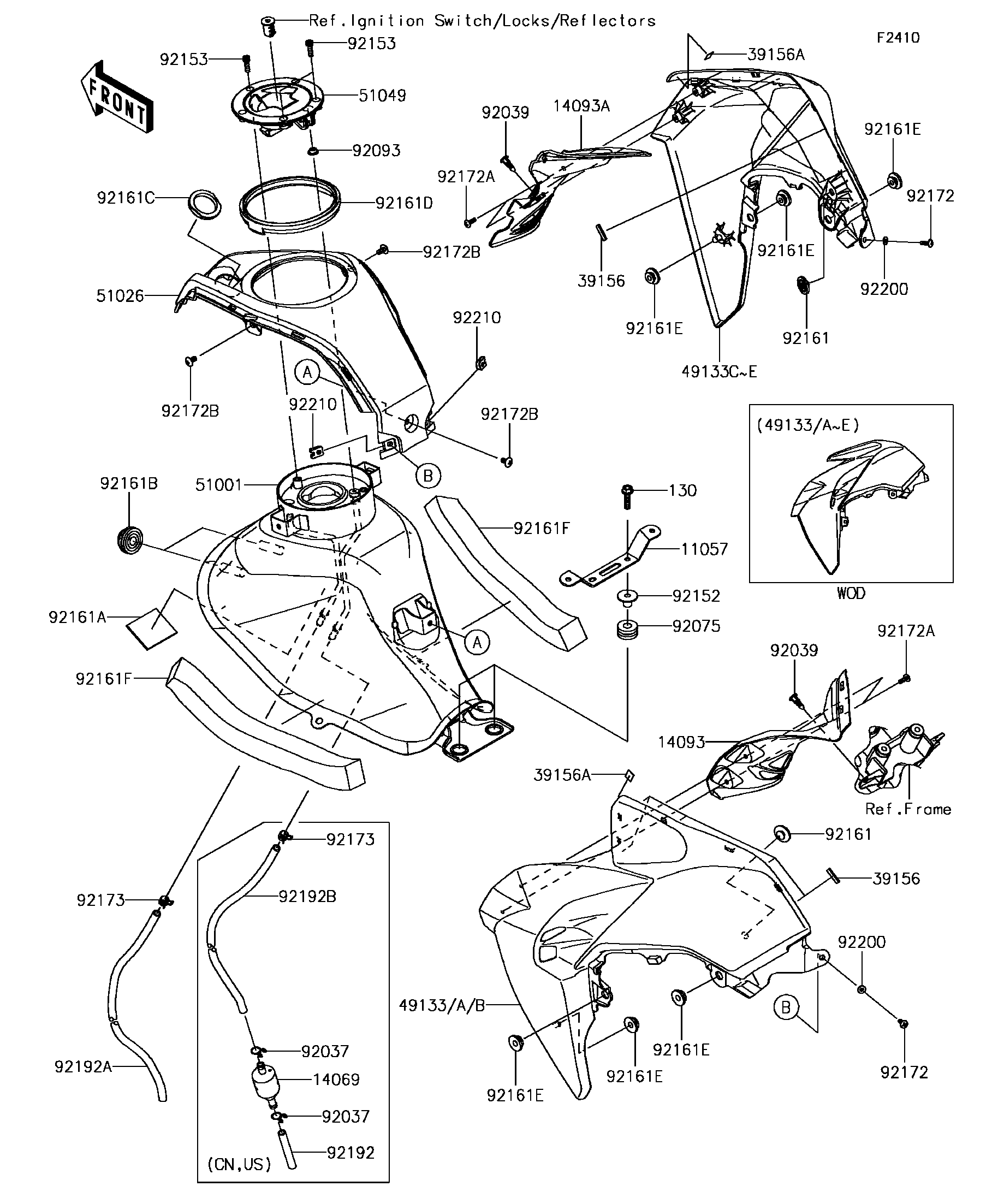

2017 Z125 Pro - Fuel Tank(JHF/JJF)

DOWNLOAD PDF
SELECT A NEW PART
11057
11057
14069
14069
14093
14093
14093A
14093A
39156
39156
39156
39156
39156A
39156A
39156A
39156A
49133A
49133A
49133B
49133B
49133D
49133D
49133E
49133E
51001
51001
51026
51026
51049
51049
92037
92037
92037
92037
92039
92039
92039
92039
92075
92075
92093
92093
92152
92152
92153
92153
92153
92153
92161
92161
92161
92161
92161A
92161A
92161B
92161B
92161C
92161C
92161D
92161D
92161E
92161E
92161E
92161E
92161E
92161E
92161E
92161E
92161E
92161E
92161E
92161E
92161F
92161F
92161F
92161F
92172
92172
92172
92172
92172A
92172A
92172A
92172A
92172B
92172B
92172B
92172B
92172B
92172B
130
130
92173
92173
92173
92173
92192
92192
92192A
92192A
92192B
92192B
92200
92200
92200
92200
92210
92210
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,SIDE COVER 11057 11057-0244 1
BREATHER,FUEL TANK 14069 14069-1004 1 CN,US
COVER,INNER,LH 14093 14093-0332 1
COVER,INNER,RH 14093A 14093-0333 1
PAD,5X20X2 39156 39156-2117 10
PAD,10X10X0.2 39156A 39156-2118 2
SHROUD,LH,M.G.GRAY 49133A 49133-0011-45W 1 CA,US
SHROUD,LH,C.L.GREEN 49133B 49133-0011-51P 1
SHROUD,RH,M.G.GRAY 49133D 49133-0012-45W 1 CA,US
SHROUD,RH,C.L.GREEN 49133E 49133-0012-51P 1
TANK-COMP-FUEL 51001 51001-0848 1
COVER TANK,F.BLACK 51026 51026-0012-6Z 1
CAP-TANK,FUEL 51049 51049-0728 1
CLAMP 92037 92037-1712 2 CN,US
RIVET 92039 92039-0709 2
DAMPER,10X24X12 92075 92075-1690 2
SEAL,FUEL TANK CAP 92093 92093-1030 1
COLLAR 92152 92152-0697 2
BOLT,SOCKET,5X16 92153 92153-1616 3
DAMPER,8X22X10 92161 92161-1685 2
DAMPER,40X50X2 92161A 92161-1757 1
DAMPER,10X32X8 92161B 92161-1791 2
DAMPER 92161C 92161-1797 1
DAMPER 92161D 92161-1798 1
DAMPER 92161E 92161-1810 6
DAMPER 92161F 92161-1820 2
SCREW,4X12 92172 92172-0715 2
SCREW,4X12 92172A 92172-0959 4
SCREW,5X10 92172B 92172-1090 3
BOLT-FLANGED,6X25 130 130BA0625 2
CLAMP 92173 92173-1143 1 CA
TUBE,6X9X60 92192 92192-1489 1 CN,US
TUBE,6X9X630 92192A 92192-1647 1
TUBE,6X9X505 92192B 92192-1678 1 CN,US
WASHER,4X9.5X1 92200 92200-0546 2
NUT,4MM 92210 92210-0620 2
CLAMP 92173 92173-1143 2 CN,US
