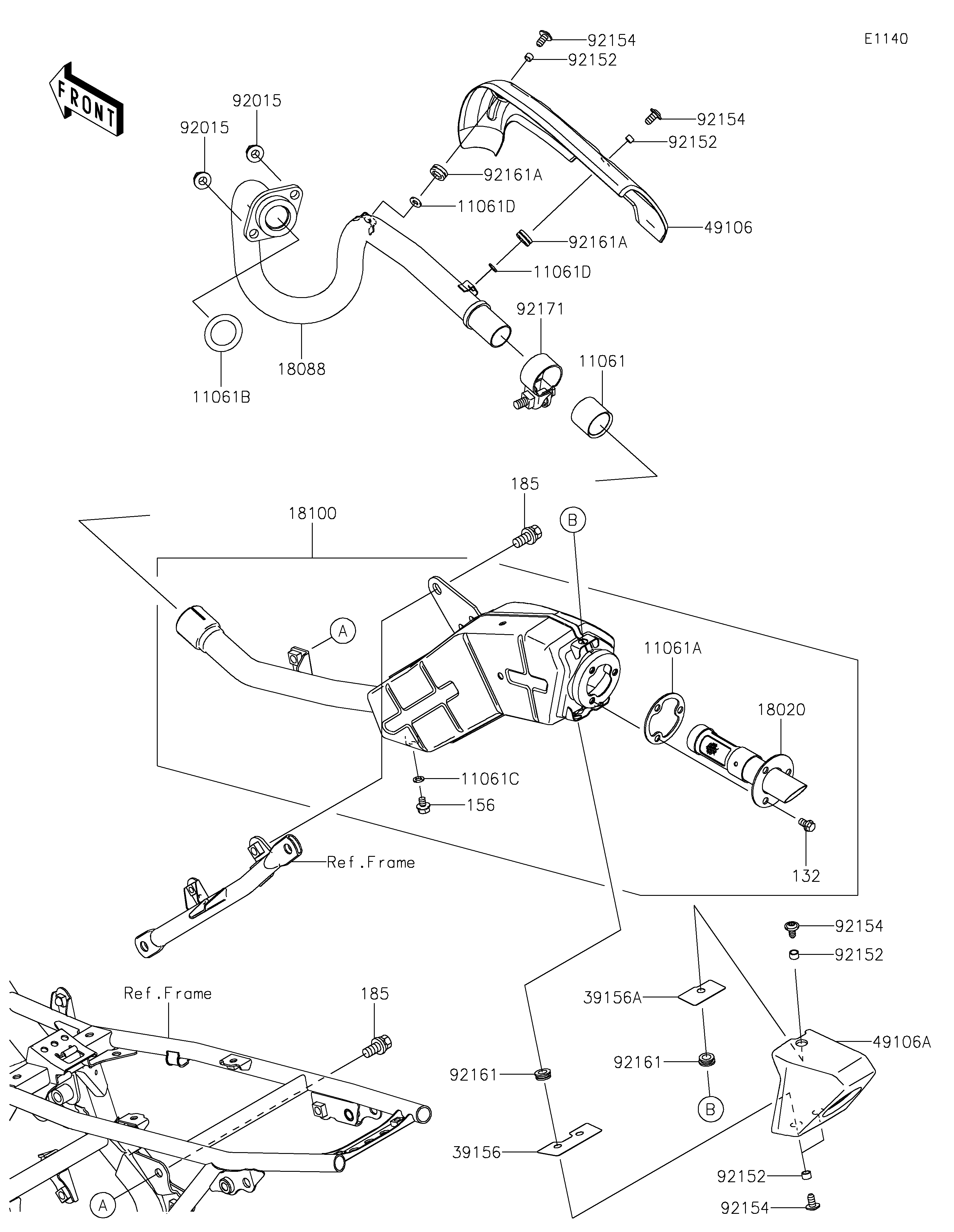

Parts Diagrams |
11061
11061A
11061B
11061C
11061D
11061D
132
156
18020
18088
18100
185
185
39156
39156A
49106
49106A
92015
92015
92152
92152
92152
92152
92154
92154
92154
92154
92161
92161
92161A
92161A
92171
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,MUFFLER JOINT | 11061 | 11061-0207 | 1 | ||
| GASKET | 11061A | 11061-0301 | 1 | ||
| GASKET,EXHAUST PIPE | 11061B | 11061-0322 | 1 | ||
| GASKET,DRAIN | 11061C | 11061-0875 | 1 | ||
| GASKET,5.8X12X1.5 | 11061D | 11061-1148 | 2 | ||
| BOLT-FLANGED-SMALL,6X10 | 132 | 132BB0610 | 3 | ||
| BOLT-WP,6X10 | 156 | 156R0610 | 1 | ||
| BAFFLE | 18020 | 18020-0058 | 1 | ||
| PIPE-EXHAUST | 18088 | 18088-0429 | 1 | ||
| BODY-ASSY-MUFFLER | 18100 | 18100-0585 | 1 | ||
| BOLT-UPSET-WSP-SMALL,8X16 | 185 | 185BA0816 | 2 | ||
| PAD,MUFFLER COVER,INNER,LWR | 39156 | 39156-0552 | 1 | ||
| PAD,MUFFLER COVER,INNER,UPP | 39156A | 39156-0553 | 1 | ||
| COVER-MUFFLER,EX. PIPE | 49106 | 49106-0066 | 1 | ||
| COVER-MUFFLER,TAIL CAP | 49106A | 49106-0081 | 1 | ||
| NUT,8MM | 92015 | 92015-1143 | 2 | ||
| COLLAR,6.5X8.5X5.5 | 92152 | 92152-0612 | 5 | ||
| BOLT,SOCKET,6X12 | 92154 | 92154-0042 | 5 | ||
| DAMPER | 92161 | 92161-0545 | 3 | ||
| DAMPER | 92161A | 92161-1475 | 2 | ||
| CLAMP | 92171 | 92171-0593 | 1 |
