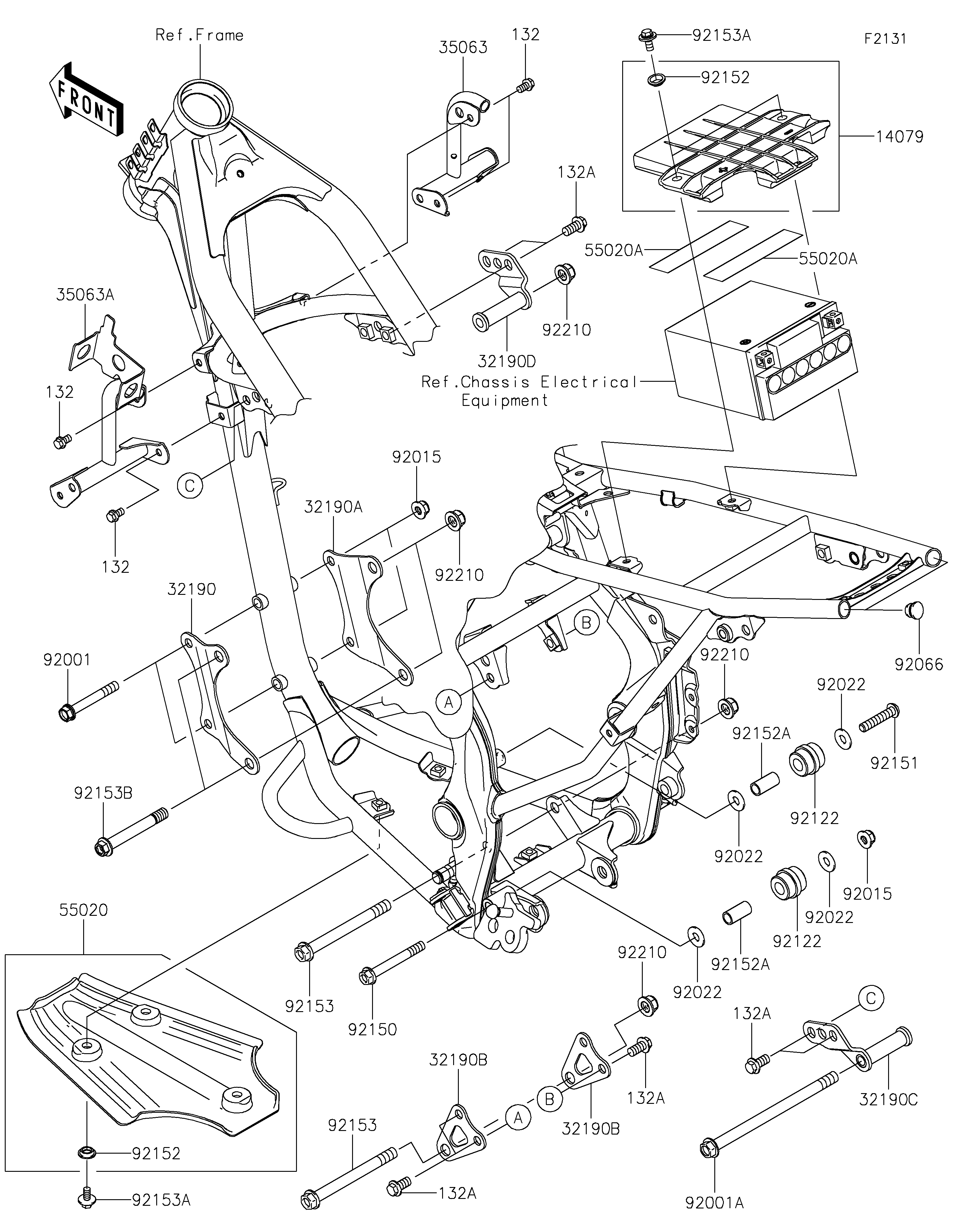

2020 KLX®140G - Frame Fittings

DOWNLOAD PDF
SELECT A NEW PART
132
132
132
132A
132A
132A
132A
14079
32190
32190A
32190B
32190B
32190C
32190D
35063
35063A
55020
55020A
55020A
92001
92001A
92015
92015
92022
92022
92022
92022
92066
92122
92122
92150
92151
92152
92152
92152A
92152A
92153
92153
92153A
92153A
92153B
92210
92210
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL,6X10 132 132BA0610 4
BOLT-FLANGED-SMALL,8X16 132A 132BA0816 8
HOLDER-ASSY,BATTERY 14079 14079-0031 1
BRACKET-ENGINE,FR,LH 32190 32190-0308 1
BRACKET-ENGINE,FR,RH 32190A 32190-0309 1
BRACKET-ENGINE,RR 32190B 32190-0310 2
BRACKET-ENGINE,HEAD,LH 32190C 32190-0311 1
BRACKET-ENGINE,HEAD,RH 32190D 32190-0312 1
STAY,SHROUD,RH,P.SILVER 35063 35063-1340-458 1
STAY,SHROUD,LH,P.SILVER 35063A 35063-1341-458 1
GUARD 55020 55020-0409 1
GUARD 55020A 55020-0429 2
BOLT,FLANGED,8X60 92001 92001-1581 2
BOLT,FLANGED,10X160 92001A 92001-1653 1
NUT,8MM 92015 92015-1432 3
WASHER,8.5X20X1.6 92022 92022-1561 4
PLUG,FRAME END,12X13 92066 92066-1034 2
ROLLER,GUIDE CHAIN 92122 92122-0041 2
BOLT,FLANGED,8X65 92150 92150-1036 1
BOLT,SOCKET,8X40 92151 92151-1205 1
COLLAR,8.8X11.2X4 92152 92152-0909 5
COLLAR,9.5X12.5X25 92152A 92152-0943 2
BOLT,FLANGED,10X105 92153 92153-0614 2
BOLT,FLANGED,6X14 92153A 92153-0936 5
BOLT,FLANGED,10X77 92153B 92153-1613 2
NUT,LOCK,FLANGED,10MM 92210 92210-1080 5
