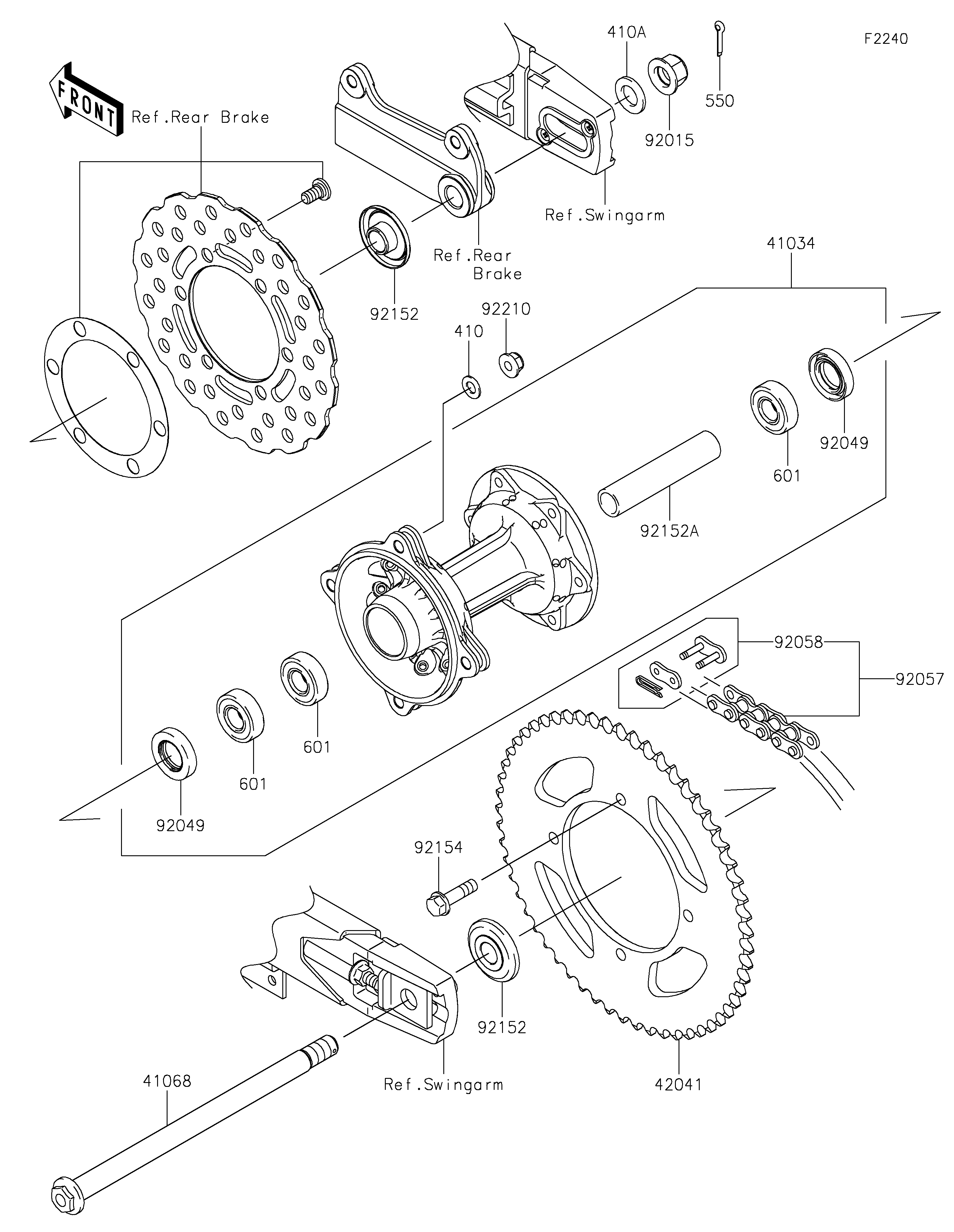

Parts Diagrams |
410
41034
41068
410A
42041
550
601
601
601
92015
92049
92049
92057
92058
92152
92152
92152A
92154
92210
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| WASHER-PLAIN-SMALL,8MM | 410 | 410AA0800 | 4 | ||
| DRUM-ASSY,RR | 41034 | 41034-0574 | 1 | ||
| AXLE,RR,238MM | 41068 | 41068-0085 | 1 | ||
| WASHER-PLAIN-SMALL,14MM | 410A | 410AA1400 | 1 | ||
| SPROCKET-HUB,57T | 42041 | 42041-0156 | 1 | ||
| PIN-COTTER,2.5X20 | 550 | 550AA2520 | 1 | ||
| BEARING-BALL | 601 | 601B6202UU | 3 | ||
| NUT,FLANGED,14MM | 92015 | 92015-1401 | 1 | ||
| SEAL-OIL | 92049 | 92049-0114 | 2 | ||
| CHAIN,DRIVE,DID428HDS3X134L | 92057 | 92057-0684 | 1 | ||
| JOINT-CHAIN,DRIVE | 92058 | 92058-0016 | 1 | ||
| COLLAR,RR AXLE,L=12.5 | 92152 | 92152-0651 | 2 | ||
| COLLAR,RR BRAKE DRUM,L=95 | 92152A | 92152-1090 | 1 | ||
| BOLT,FLANGED,8X30 | 92154 | 92154-0424 | 4 | ||
| NUT,FLANGED,LOCK,8MM | 92210 | 92210-0159 | 4 |
| WASHER-PLAIN-SMALL,8MM | |
| REF # | 410 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| DRUM-ASSY,RR | |
| REF # | 41034 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| AXLE,RR,238MM | |
| REF # | 41068 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER-PLAIN-SMALL,14MM | |
| REF # | 410A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPROCKET-HUB,57T | |
| REF # | 42041 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIN-COTTER,2.5X20 | |
| REF # | 550 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BEARING-BALL | |
| REF # | 601 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| NUT,FLANGED,14MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SEAL-OIL | |
| REF # | 92049 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CHAIN,DRIVE,DID428HDS3X134L | |
| REF # | 92057 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| JOINT-CHAIN,DRIVE | |
| REF # | 92058 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COLLAR,RR AXLE,L=12.5 | |
| REF # | 92152 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COLLAR,RR BRAKE DRUM,L=95 | |
| REF # | 92152A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,8X30 | |
| REF # | 92154 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| NUT,FLANGED,LOCK,8MM | |
| REF # | 92210 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
