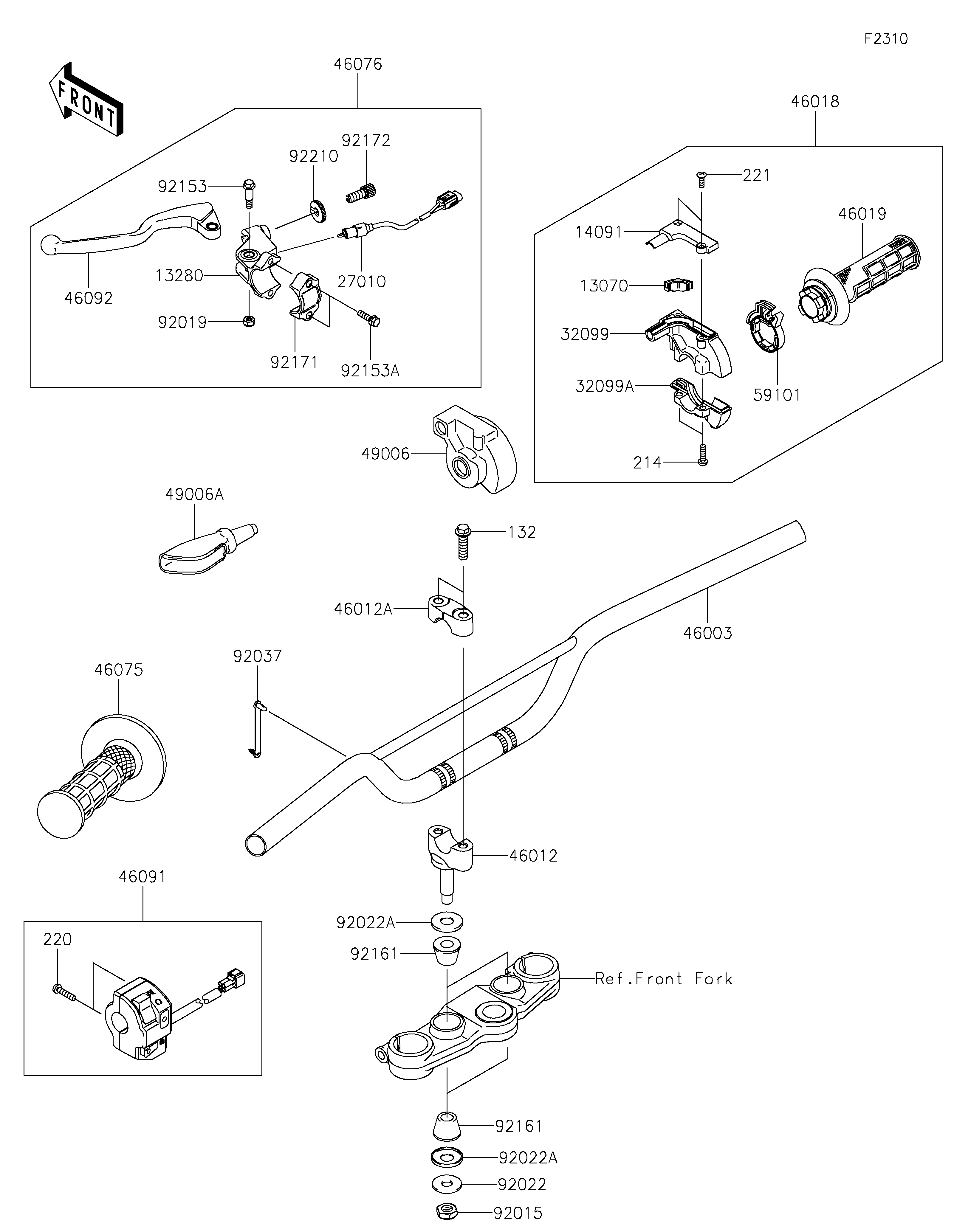

2020 KLX®140G - Handlebar

DOWNLOAD PDF
SELECT A NEW PART
13070
132
13280
14091
214
220
221
27010
32099
32099A
46003
46012
46012A
46018
46019
46075
46076
46091
46092
49006
49006A
59101
92015
92019
92022
92022A
92022A
92037
92153
92153A
92161
92161
92171
92172
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GUIDE,THROTTLE 13070 13070-0083 1
BOLT-FLANGED-SMALL,8X30 132 132BC0830 4
HOLDER,CLUTCH LEVER 13280 13280-0256 1
COVER,THROTTLE CASE,UPP 14091 14091-0873 1
SCREW-PAN+-,5X18 214 214AB0518 2
SCREW-PAN-CROS,5X22 220 220AB0522 2
SCREW-CSK-CROS,4X12 221 221AB0412 2
SWITCH,CLUTCH 27010 27010-0071 1
CASE,THROTTLE,UPP 32099 32099-0037 1
CASE,THROTTLE,LWR 32099A 32099-0038 1
HANDLE,P.SILVER 46003 46003-0205-458 1
HOLDER-HANDLE,LWR,P.SILVER 46012 46012-0013-458 2
HOLDER-HANDLE,UPP,P.SILVER 46012A 46012-0023-458 2
GRIP-ASSY-THROTTLE 46018 46018-0073 1
GRIP-ASSY,THROTTLE 46019 46019-0023 1
GRIP,LH 46075 46075-0072 1
LEVER-ASSY-GRIP,CLUTCH 46076 46076-0049 1
HOUSING-ASSY-CONTROL,LH 46091 46091-0226 1
LEVER-GRIP,CLUTCH 46092 46092-0026 1
BOOT,THROTTLE CASE 49006 49006-0075 1
BOOT,LEVER HOLDER 49006A 49006-0080 1
REEL,THROTTLE 59101 59101-0005 1
NUT,LOCK,10MM 92015 92015-1962 2
NUT,LOCK,6MM 92019 92019-008 1
WASHER,10.2X28X2 92022 92022-1088 2
WASHER 92022A 92022-1737 4
CLAMP,SPEED,L=58 92037 92037-1163 1
BOLT,6MM 92153 92153-1897 1
BOLT,5X20 92153A 92153-1898 2
DAMPER,HANDLE HOLDER 92161 92161-0632 4
CLAMP,LEVER HOLDER 92171 92171-1671 1
SCREW,CABLE ADJUST,8MM 92172 92172-0330 1
NUT,CABLE ADJUST 92210 92210-0411 1
