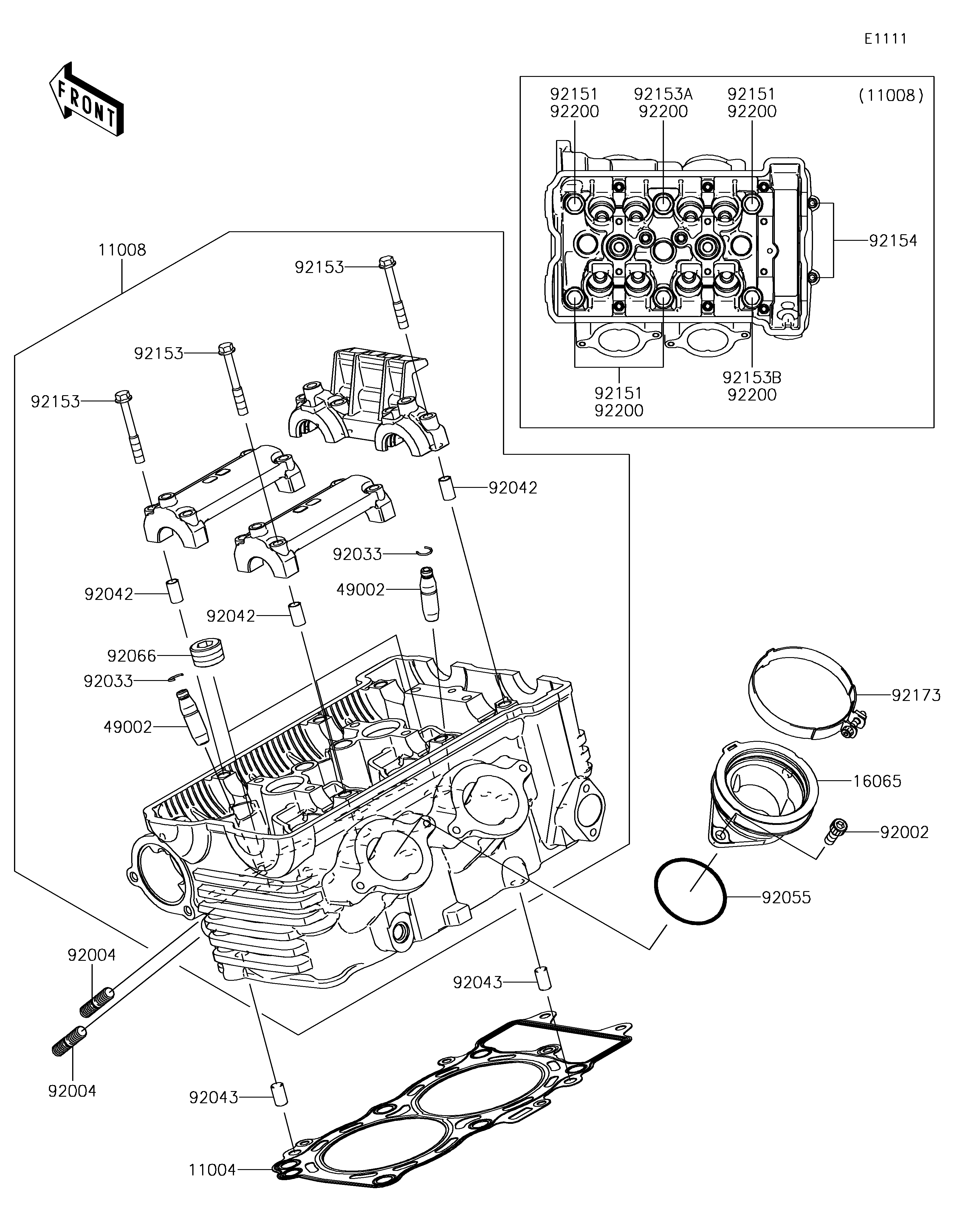

2017 Versys 650 ABS - Cylinder Head

DOWNLOAD PDF
SELECT A NEW PART
11004
11008
16065
49002
49002
92002
92004
92004
92033
92033
92042
92042
92042
92043
92043
92055
92066
92151
92151
92151
92153
92153
92153
92153A
92153B
92154
92173
92200
92200
92200
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET-HEAD 11004 11004-0064 1
HEAD-COMP-CYLINDER 11008 11008-0874 1
HOLDER,THROTTLE BODY 16065 16065-0024 2
GUIDE-VALVE 49002 49002-1116 8
BOLT,6X16 92002 92002-1143 4
STUD,8X22 92004 92004-0025 4
RING-SNAP 92033 92033-1247 8
PIN,DOWEL,6.3X8X14 92042 92042-007 6
PIN,8X14 92043 92043-1567 2
RING-O,47X1.9 92055 92055-1600 2
PLUG,PT1/2X12.5 92066 92066-0002 3
BOLT,10X158 92151 92151-1152 4
BOLT,6X45 92153 92153-0339 12
BOLT,FLANGED-SMALL,10X176 92153A 92153-0972 1
BOLT,FLANGED-SMALL,10X80 92153B 92153-1321 1
BOLT,SOCKET,6X30 92154 92154-0116 2
CLAMP 92173 92173-0239 2
WASHER,10.5X19X2.3 92200 92200-0363 6
