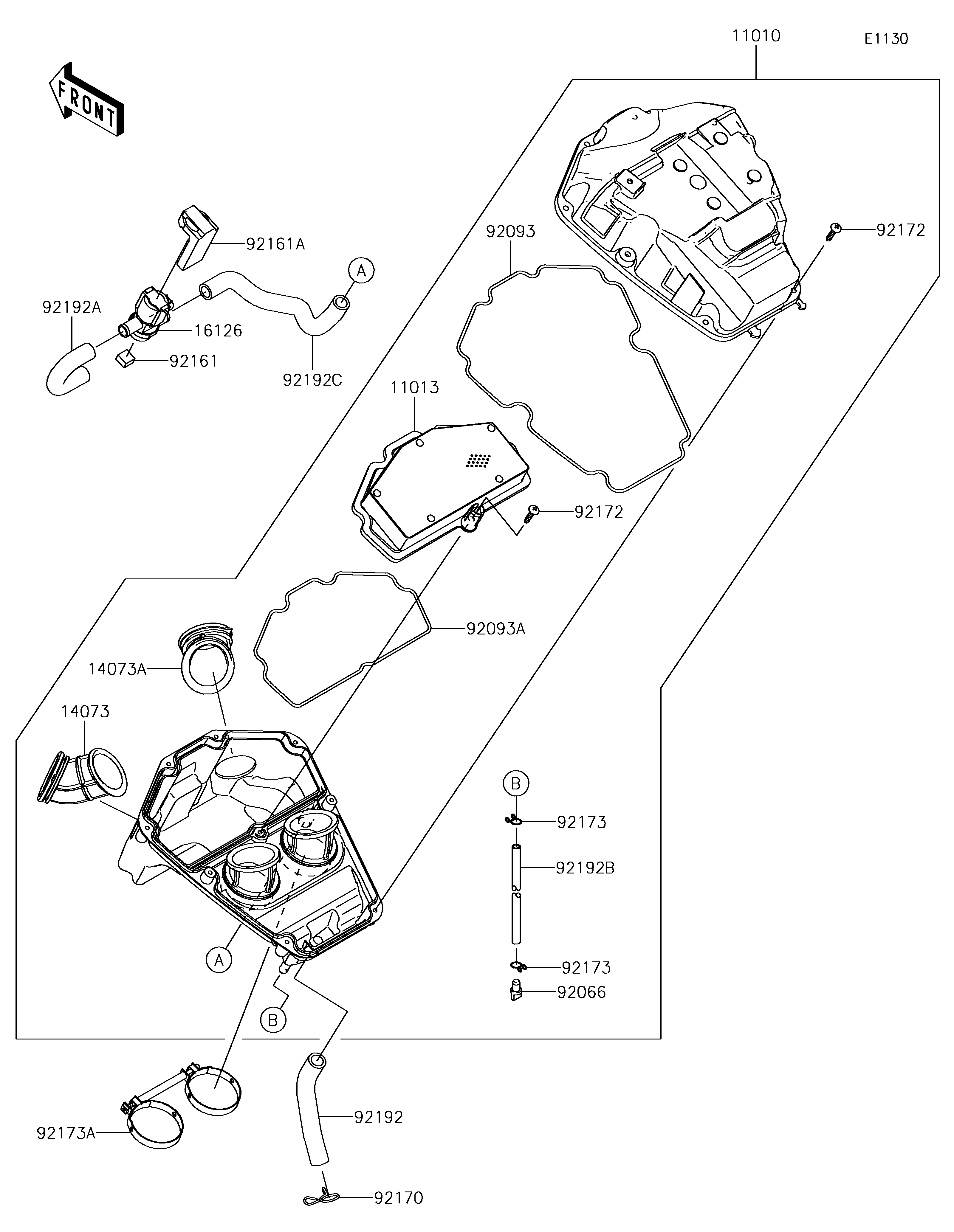

Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
11010
11013
14073
14073A
16126
92066
92093
92093A
92161
92161A
92170
92172
92172
92173
92173
92173A
92192
92192A
92192B
92192C
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| FILTER-ASSY-AIR | 11010 | 11010-0841 | 1 | ||
| ELEMENT-AIR FILTER | 11013 | 11013-0745 | 1 | ||
| DUCT,INTAKE,LH | 14073 | 14073-0799 | 1 | ||
| DUCT,INTAKE,RH | 14073A | 14073-0800 | 1 | ||
| VALVE,AIR SWITING | 16126 | 16126-0019 | 1 | ||
| PLUG,DRAIN | 92066 | 92066-0782 | 1 | ||
| SEAL | 92093 | 92093-0610 | 1 | ||
| SEAL,ELEMENT | 92093A | 92093-0611 | 1 | ||
| DAMPER | 92161 | 92161-1374 | 1 | ||
| DAMPER | 92161A | 92161-1933 | 1 | ||
| CLAMP | 92170 | 92170-1017 | 1 | ||
| SCREW,5X25 | 92172 | 92172-0891 | 9 | ||
| CLAMP,10MM | 92173 | 92173-1044 | 2 | ||
| CLAMP | 92173A | 92173-1698 | 1 | ||
| TUBE,BREATHER | 92192 | 92192-0958 | 1 | ||
| TUBE,ASV-HEAD | 92192A | 92192-0960 | 1 | ||
| TUBE,DRAIN,L=245 | 92192B | 92192-1380 | 1 | ||
| TUBE,ASV-A/C | 92192C | 92192-1381 | 1 |
| FILTER-ASSY-AIR | |
| REF # | 11010 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ELEMENT-AIR FILTER | |
| REF # | 11013 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DUCT,INTAKE,LH | |
| REF # | 14073 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DUCT,INTAKE,RH | |
| REF # | 14073A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| VALVE,AIR SWITING | |
| REF # | 16126 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLUG,DRAIN | |
| REF # | 92066 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SEAL | |
| REF # | 92093 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SEAL,ELEMENT | |
| REF # | 92093A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92161 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92161A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 92170 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW,5X25 | |
| REF # | 92172 |
|---|---|
| PART NUMBER | |
| QUANTITY | 9 |
| DESTINATION | |
| REMARKS | |
| CLAMP,10MM | |
| REF # | 92173 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 92173A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE,BREATHER | |
| REF # | 92192 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE,ASV-HEAD | |
| REF # | 92192A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE,DRAIN,L=245 | |
| REF # | 92192B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE,ASV-A/C | |
| REF # | 92192C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
