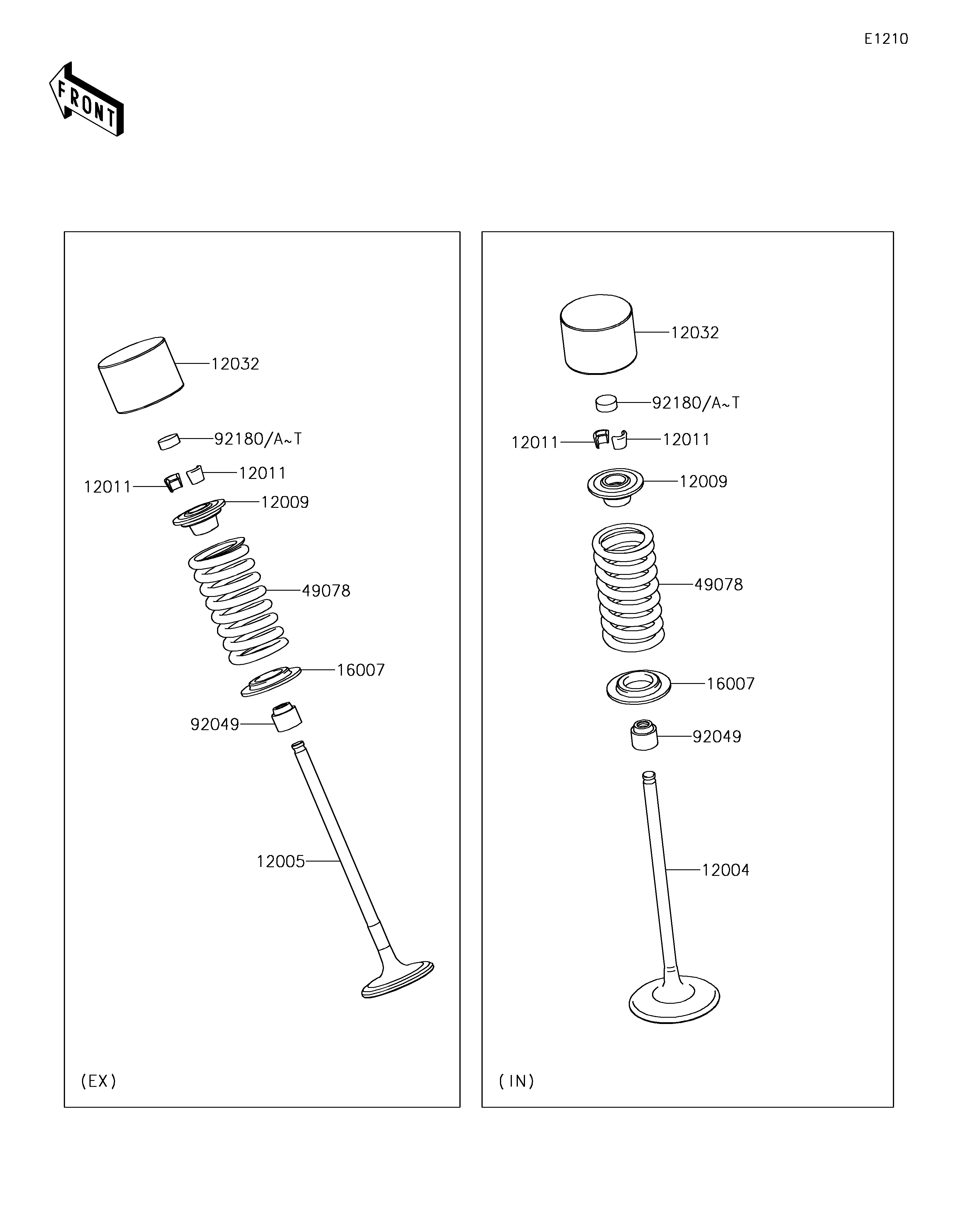

2017 Versys 650 ABS - Valve(s)

DOWNLOAD PDF
SELECT A NEW PART
12004
12005
12009
12009
12011
12011
12011
12011
12032
12032
16007
16007
49078
49078
92049
92049
92180
92180
92180A
92180A
92180B
92180B
92180C
92180C
92180D
92180D
92180E
92180E
92180F
92180F
92180G
92180G
92180H
92180H
92180I
92180I
92180J
92180J
92180K
92180K
92180L
92180L
92180M
92180M
92180N
92180N
92180O
92180O
92180P
92180P
92180Q
92180Q
92180R
92180R
92180S
92180S
92180T
92180T
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
VALVE-INTAKE 12004 12004-0706 4
VALVE-EXHAUST 12005 12005-0742 4
RETAINER-VALVE SPRING 12009 12009-1091 8
COLLET 12011 12011-1053 16
TAPPET 12032 12032-0017 8
SEAT-SPRING 16007 16007-1228 8
SPRING-ENGINE VALVE 49078 49078-0065 8
SEAL-OIL,VSB 4.3 7.5 5.3 8.3 92049 92049-1349 8
SHIM,T=2.50 92180 92180-1014 AR
SHIM,T=2.55 92180A 92180-1016 AR
SHIM,T=2.60 92180B 92180-1018 AR
SHIM,T=2.65 92180C 92180-1020 AR
SHIM,T=2.70 92180D 92180-1022 AR
SHIM,T=2.75 92180E 92180-1024 AR
SHIM,T=2.80 92180F 92180-1026 AR
SHIM,T=2.85 92180G 92180-1028 AR
SHIM,T=2.90 92180H 92180-1030 AR
SHIM,T=2.95 92180I 92180-1032 AR
SHIM,T=3.00 92180J 92180-1034 8
SHIM,T=3.05 92180K 92180-1036 AR
SHIM,T=3.10 92180L 92180-1038 AR
SHIM,T=3.15 92180M 92180-1040 AR
SHIM,T=3.20 92180N 92180-1042 AR
SHIM,T=3.25 92180O 92180-1044 AR
SHIM,T=3.30 92180P 92180-1046 AR
SHIM,T=3.35 92180Q 92180-1048 AR
SHIM,T=3.40 92180R 92180-1050 AR
SHIM,T=3.45 92180S 92180-1052 AR
SHIM,T=3.50 92180T 92180-1054 AR
