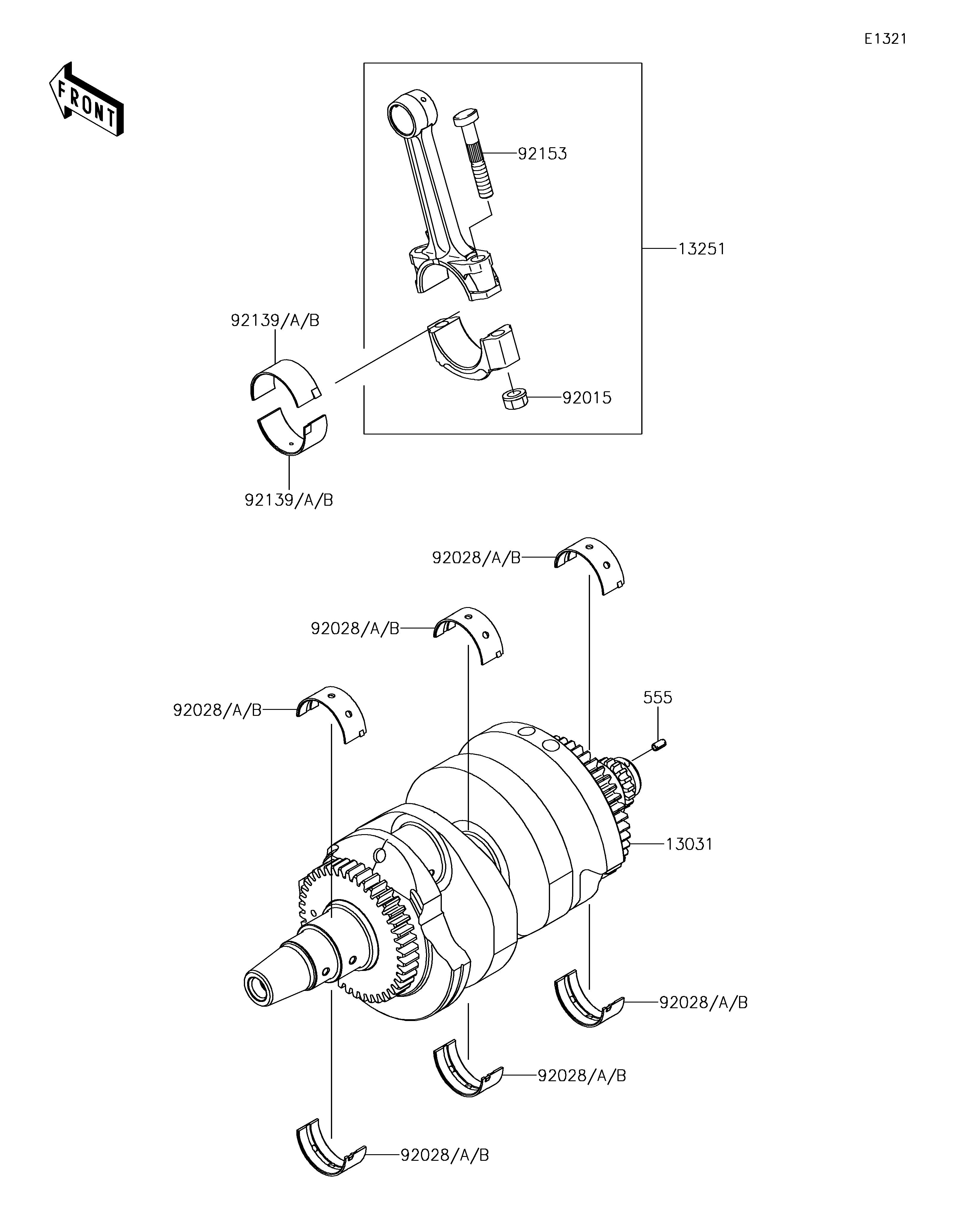

Parts Diagrams |
13031
13251
555
92015
92028
92028
92028
92028
92028
92028
92028A
92028A
92028A
92028A
92028A
92028A
92028B
92028B
92028B
92028B
92028B
92028B
92139
92139
92139A
92139A
92139B
92139B
92153
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CRANKSHAFT-COMP | 13031 | 13031-0149 | 1 | ||
| ROD-ASSY-CONNECTING,K | 13251 | 13251-0010-KK | 2 | ||
| PIN-SPRING,4X8 | 555 | 555A0408 | 1 | ||
| NUT,FLANGED,8MM | 92015 | 92015-1311 | 4 | ||
| BUSHING,CRANKSHAFT,BLUE | 92028 | 92028-1903 | 6 | ||
| BUSHING,CRANKSHAFT,BLACK | 92028A | 92028-1904 | AR | ||
| BUSHING,CRANKSHAFT,BROWN | 92028B | 92028-1905 | AR | ||
| BUSHING,CON-ROD,BLUE | 92139 | 92139-0114 | 4 | ||
| BUSHING,CON-ROD,BLACK | 92139A | 92139-0115 | AR | ||
| BUSHING,CON-ROD,BROWN | 92139B | 92139-0116 | AR | ||
| BOLT,CON-ROD,8X49 | 92153 | 92153-0957 | 4 |
| CRANKSHAFT-COMP | |
| REF # | 13031 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ROD-ASSY-CONNECTING,K | |
| REF # | 13251 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| PIN-SPRING,4X8 | |
| REF # | 555 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,FLANGED,8MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BUSHING,CRANKSHAFT,BLUE | |
| REF # | 92028 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| BUSHING,CRANKSHAFT,BLACK | |
| REF # | 92028A |
|---|---|
| PART NUMBER | |
| QUANTITY | AR |
| DESTINATION | |
| REMARKS | |
| BUSHING,CRANKSHAFT,BROWN | |
| REF # | 92028B |
|---|---|
| PART NUMBER | |
| QUANTITY | AR |
| DESTINATION | |
| REMARKS | |
| BUSHING,CON-ROD,BLUE | |
| REF # | 92139 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BUSHING,CON-ROD,BLACK | |
| REF # | 92139A |
|---|---|
| PART NUMBER | |
| QUANTITY | AR |
| DESTINATION | |
| REMARKS | |
| BUSHING,CON-ROD,BROWN | |
| REF # | 92139B |
|---|---|
| PART NUMBER | |
| QUANTITY | AR |
| DESTINATION | |
| REMARKS | |
| BOLT,CON-ROD,8X49 | |
| REF # | 92153 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
