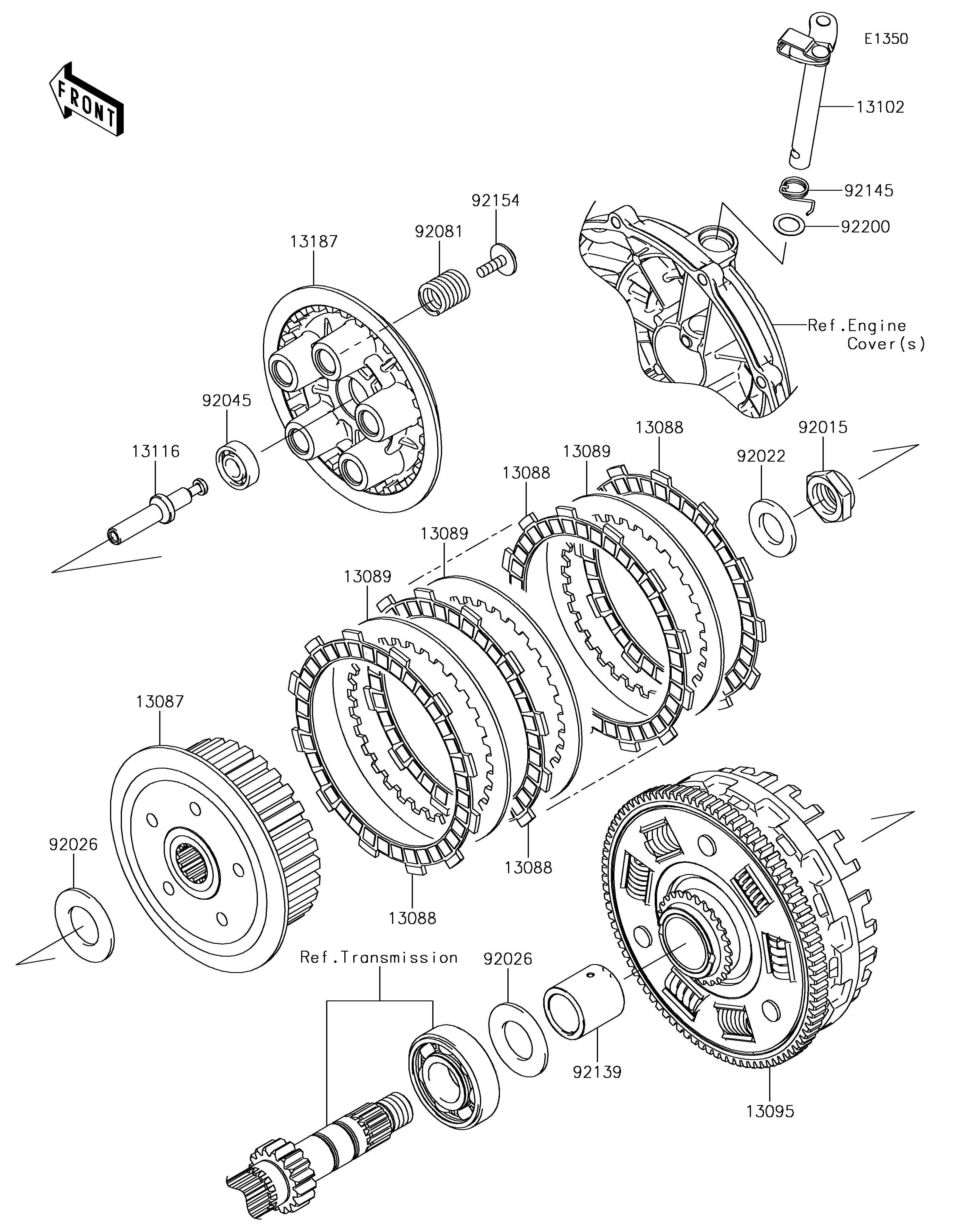

Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
13087
13088
13088
13088
13088
13089
13089
13089
13095
13102
13116
13187
92015
92022
92026
92026
92045
92081
92139
92145
92154
92200
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| HUB-CLUTCH | 13087 | 13087-0046 | 1 | ||
| PLATE-FRICTION | 13088 | 13088-1105 | 7 | ||
| PLATE-CLUTCH,T=2.3 | 13089 | 13089-0016 | 6 | ||
| HOUSING-COMP-CLUTCH | 13095 | 13095-0559 | 1 | ||
| RELEASE-COMP-CLUTCH | 13102 | 13102-0037 | 1 | ||
| ROD-PUSH | 13116 | 13116-0035 | 1 | ||
| PLATE-CLUTCH OPERATING | 13187 | 13187-0017 | 1 | ||
| NUT,20MM | 92015 | 92015-1555 | 1 | ||
| WASHER,20.3X36X3.7 | 92022 | 92022-1868 | 1 | ||
| SPACER,25.5X47X2.5 | 92026 | 92026-0716 | 2 | ||
| BEARING-BALL,6001C3ML01 | 92045 | 92045-1235 | 1 | ||
| SPRING,CLUTCH | 92081 | 92081-1033 | 5 | ||
| BUSHING | 92139 | 92139-0710 | 1 | ||
| SPRING,CLUTCH RELEASE | 92145 | 92145-0066 | 1 | ||
| BOLT,UPSET-WP,6X20 | 92154 | 92154-0079 | 5 | ||
| WASHER,12X18.5X0.5 | 92200 | 92200-1487 | 1 |
| HUB-CLUTCH | |
| REF # | 13087 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLATE-FRICTION | |
| REF # | 13088 |
|---|---|
| PART NUMBER | |
| QUANTITY | 7 |
| DESTINATION | |
| REMARKS | |
| PLATE-CLUTCH,T=2.3 | |
| REF # | 13089 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| HOUSING-COMP-CLUTCH | |
| REF # | 13095 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RELEASE-COMP-CLUTCH | |
| REF # | 13102 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ROD-PUSH | |
| REF # | 13116 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLATE-CLUTCH OPERATING | |
| REF # | 13187 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,20MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,20.3X36X3.7 | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPACER,25.5X47X2.5 | |
| REF # | 92026 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BEARING-BALL,6001C3ML01 | |
| REF # | 92045 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING,CLUTCH | |
| REF # | 92081 |
|---|---|
| PART NUMBER | |
| QUANTITY | 5 |
| DESTINATION | |
| REMARKS | |
| BUSHING | |
| REF # | 92139 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING,CLUTCH RELEASE | |
| REF # | 92145 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,UPSET-WP,6X20 | |
| REF # | 92154 |
|---|---|
| PART NUMBER | |
| QUANTITY | 5 |
| DESTINATION | |
| REMARKS | |
| WASHER,12X18.5X0.5 | |
| REF # | 92200 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
