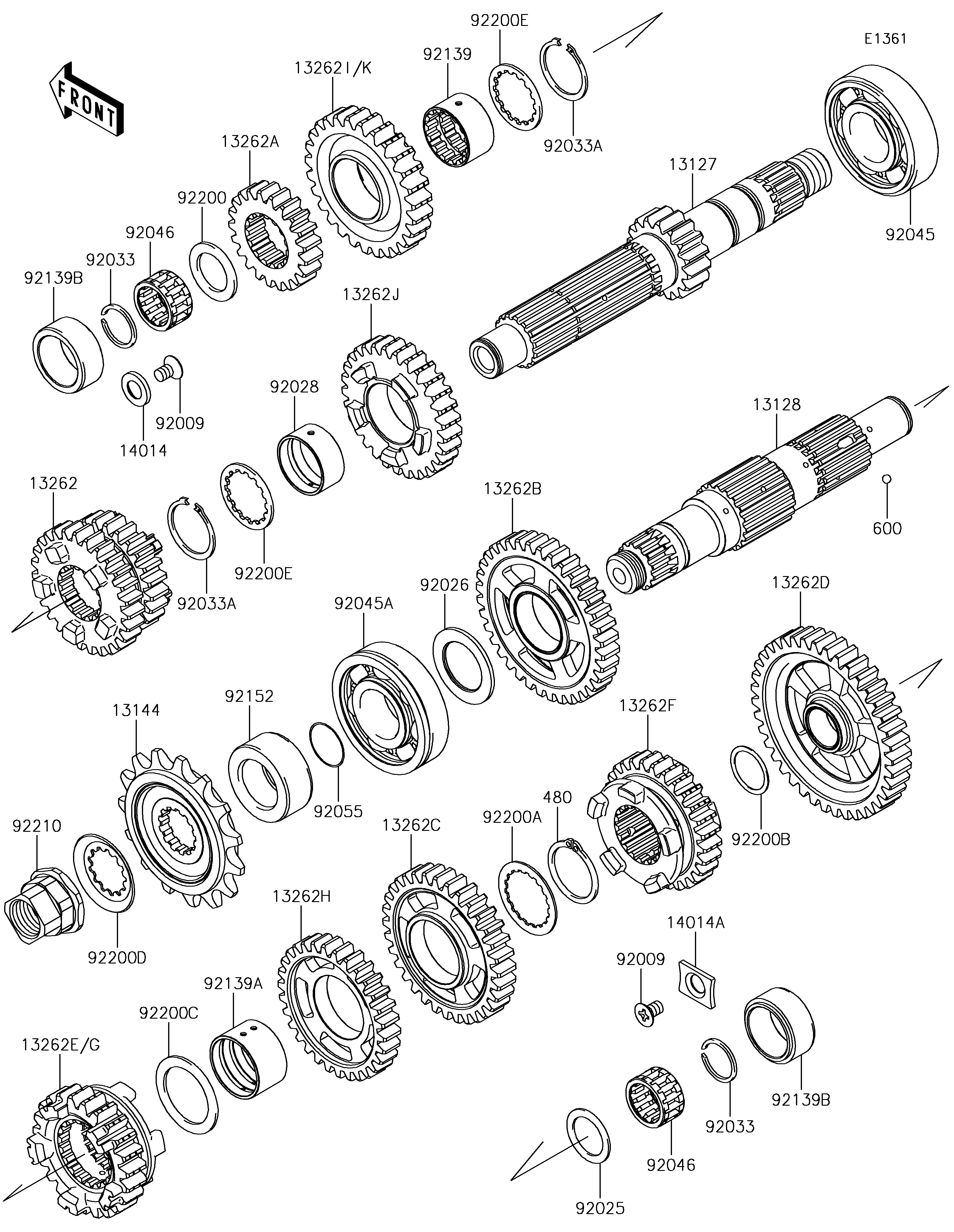

2017 Versys 650 ABS - Transmission

DOWNLOAD PDF
SELECT A NEW PART
13127
13127
13128
13128
13144
13144
13262
13262
13262A
13262A
13262B
13262B
13262C
13262C
13262D
13262D
13262E
13262E
13262F
13262F
13262G
13262G
13262H
13262H
13262I
13262I
13262J
13262J
13262K
13262K
14014
14014
14014A
14014A
92009
92009
92009
92009
92025
92025
92026
92026
92028
92028
92033
92033
92033
92033
92033A
92033A
92033A
92033A
92045
92045
92045A
92045A
92046
92046
92046
92046
92055
92055
92139
92139
92139A
92139A
92139B
92139B
92139B
92139B
92152
92152
92200
92200
92200A
92200A
92200B
92200B
92200C
92200C
92200D
92200D
480
480
600
600
92200E
92200E
92200E
92200E
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SHAFT-TRANSMISSION INPUT,16T 13127 13127-0666 1
SHAFT-TRANSMISSION OUTPUT 13128 13128-0690 1
SPROCKET-OUTPUT,15T,#520 13144 13144-0576 1
GEAR,INPUT 3RD&4TH,24T&27T 13262 13262-0819 1
GEAR,INPUT 2ND,21T 13262A 13262-0821 1
GEAR,OUTPUT 2ND,36T 13262B 13262-0826 1
GEAR,OUTPUT 3RD,32T 13262C 13262-0827 1
GEAR,OUTPUT LOW,39T 13262D 13262-0828 1
GEAR,OUTPUT 6TH,23T 13262E 13262-1154 1 ( - ER650AEX01162)
GEAR,OUTPUT 5TH,28T 13262F 13262-1229 1
GEAR,OUTPUT 6TH,23T 13262G 13262-1230 1 (ER650AEX01163 - )
GEAR,OUTPUT 4TH,30T 13262H 13262-1269 1
GEAR,INPUT 6TH,27T 13262I 13262-1274 1 ( - ER650AEX01162)
GEAR,INPUT 5TH,29T 13262J 13262-1275 1
GEAR,INPUT 6TH,27T 13262K 13262-1276 1 (ER650AEX01163 - )
PLATE-POSITION,9.5X17X2.3 14014 14014-0019 1
PLATE-POSITION,RH 14014A 14014-0020 1
SCREW,6X10 92009 92009-1375 2
SHIM,20.3X28X1.1 92025 92025-1455 1
SPACER,25.3X39X2.0 92026 92026-0715 1
BUSHING,INPUT GEAR 92028 92028-1449 1
RING-SNAP,20MM 92033 92033-015 2
RING-SNAP,25.9X30.6X1.2 92033A 92033-1037 2
BEARING-BALL,25X62X17 92045 92045-0042 1
BEARING-BALL,6305N2SH2 92045A 92045-1224 1
BEARING-NEEDLE,KMJ20X26X13.8X1 92046 92046-1185 2
RING-O,21.5X1.5 92055 92055-0196 1
BUSHING,25X28.3X16.7 92139 92139-0107 1
BUSHING,OUT 3RD&4TH GEAR 92139A 92139-0108 1
BUSHING,26X34X16.2 92139B 92139-0713 2
COLLAR,25X40X17.2 92152 92152-0972 1
WASHER,20.2X30X1.8 92200 92200-0221 1
WASHER,30.3X38X1.0 92200A 92200-0222 1
WASHER,20.2X25.0X0.5 92200B 92200-0291 1
WASHER,29.9X40X1.5 92200C 92200-0721 1
WASHER 92200D 92200-0851 1
CIRCLIP 480 480J2900 1
BALL-STEEL,5/32 600 600A0500 3
WASHER,28.5X34.0X1.5 92200E 92200-1240 2
NUT,M20 92210 92210-0738 1
