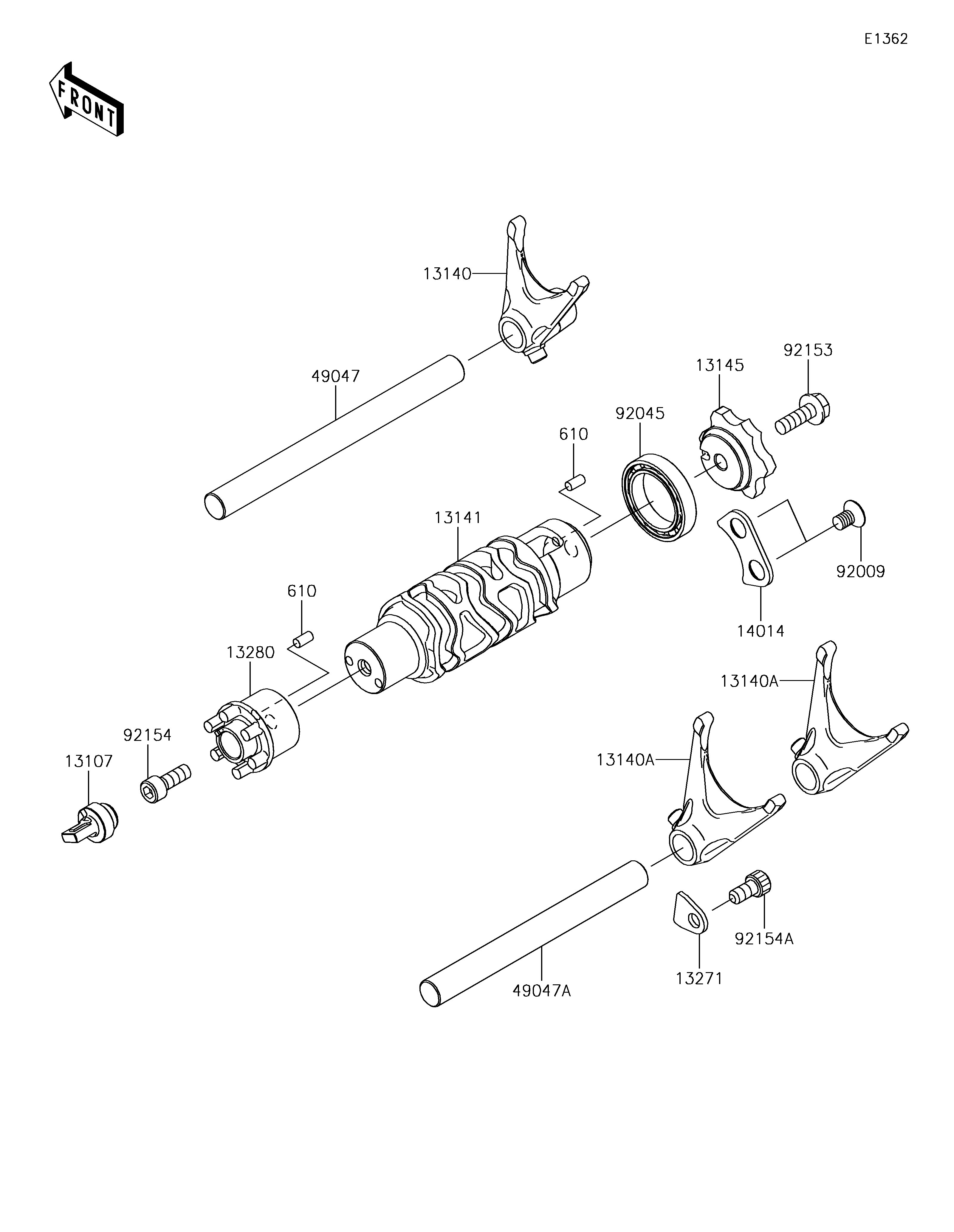

2017 Versys 650 ABS - Gear Change Drum/Shift Fork(s)
13107
13140
13140A
13140A
13141
13145
13271
13280
14014
49047
49047A
610
610
92009
92045
92153
92154
92154A
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
SHAFT | 13107 | 13107-0843 | 1 | ||
FORK-SHIFT,INPUT | 13140 | 13140-0025 | 1 | ||
FORK-SHIFT,OUTPUT | 13140A | 13140-0026 | 2 | ||
DRUM-CHANGE | 13141 | 13141-0568 | 1 | ||
CAM-CHANGE DRUM | 13145 | 13145-0020 | 1 | ||
PLATE | 13271 | 13271-0626 | 1 | ||
HOLDER | 13280 | 13280-0875 | 1 | ||
PLATE-POSITION | 14014 | 14014-0018 | 1 | ||
ROD-SHIFT,INPUT | 49047 | 49047-0029 | 1 | ||
ROD-SHIFT,OUTPUT | 49047A | 49047-0030 | 1 | ||
ROLLER,4X8 | 610 | 610A0408 | 2 | ||
SCREW,6X10 | 92009 | 92009-1375 | 2 | ||
BEARING-BALL,6805 | 92045 | 92045-1122 | 1 | ||
BOLT,FLANGED,6X18 | 92153 | 92153-0958 | 1 | ||
BOLT,SOCKET,6X16 | 92154 | 92154-0484 | 1 | ||
BOLT,SOCKET,6X12 | 92154A | 92154-0812 | 1 |
