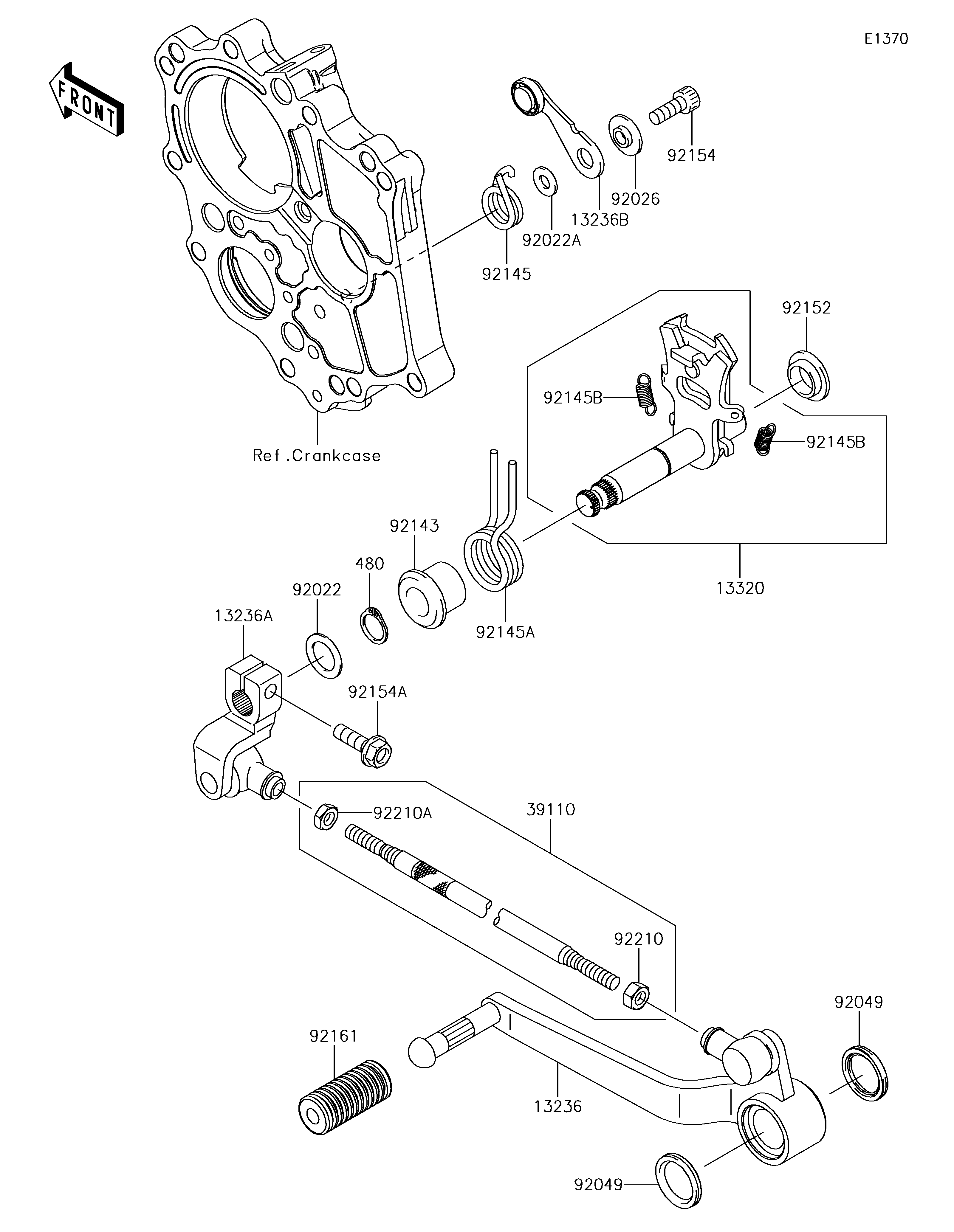

2017 Versys 650 ABS - Gear Change Mechanism
13236
13236A
13236B
13320
39110
480
92022
92022A
92026
92049
92049
92143
92145
92145A
92145B
92145B
92152
92154
92154A
92161
92210
92210A
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
LEVER-COMP,PEDAL | 13236 | 13236-0136 | 1 | ||
LEVER-COMP | 13236A | 13236-0137 | 1 | ||
LEVER-COMP,POSITION | 13236B | 13236-0170 | 1 | ||
LEVER-ASSY,CHANGE SHAFT | 13320 | 13320-0032 | 1 | ||
ROD-ASSY-TIE | 39110 | 39110-0033 | 1 | ||
CIRCLIP-TYPE-C,13MM | 480 | 480J1300 | 1 | ||
WASHER,13.3X20X1 | 92022 | 92022-1496 | 1 | ||
WASHER,6X12.8X1.2 | 92022A | 92022-1827 | 1 | ||
SPACER | 92026 | 92026-1217 | 1 | ||
SEAL-OIL | 92049 | 92049-0103 | 2 | ||
COLLAR,RETURN SPRING | 92143 | 92143-1498 | 1 | ||
SPRING,POSITION | 92145 | 92145-0304 | 1 | ||
SPRING,RETURN | 92145A | 92145-0326 | 1 | ||
SPRING,5.5X0.7X18 | 92145B | 92145-0703 | 2 | ||
COLLAR | 92152 | 92152-1075 | 1 | ||
BOLT,SOCKET,6X16 | 92154 | 92154-0235 | 1 | ||
BOLT,FLANGED,6X20 | 92154A | 92154-0786 | 1 | ||
DAMPER,CHANGE PEDAL | 92161 | 92161-1300 | 1 | ||
NUT,6MM | 92210 | 92210-1100 | 1 | ||
NUT,LEFT HANDED,6MM | 92210A | 92210-1101 | 1 |
