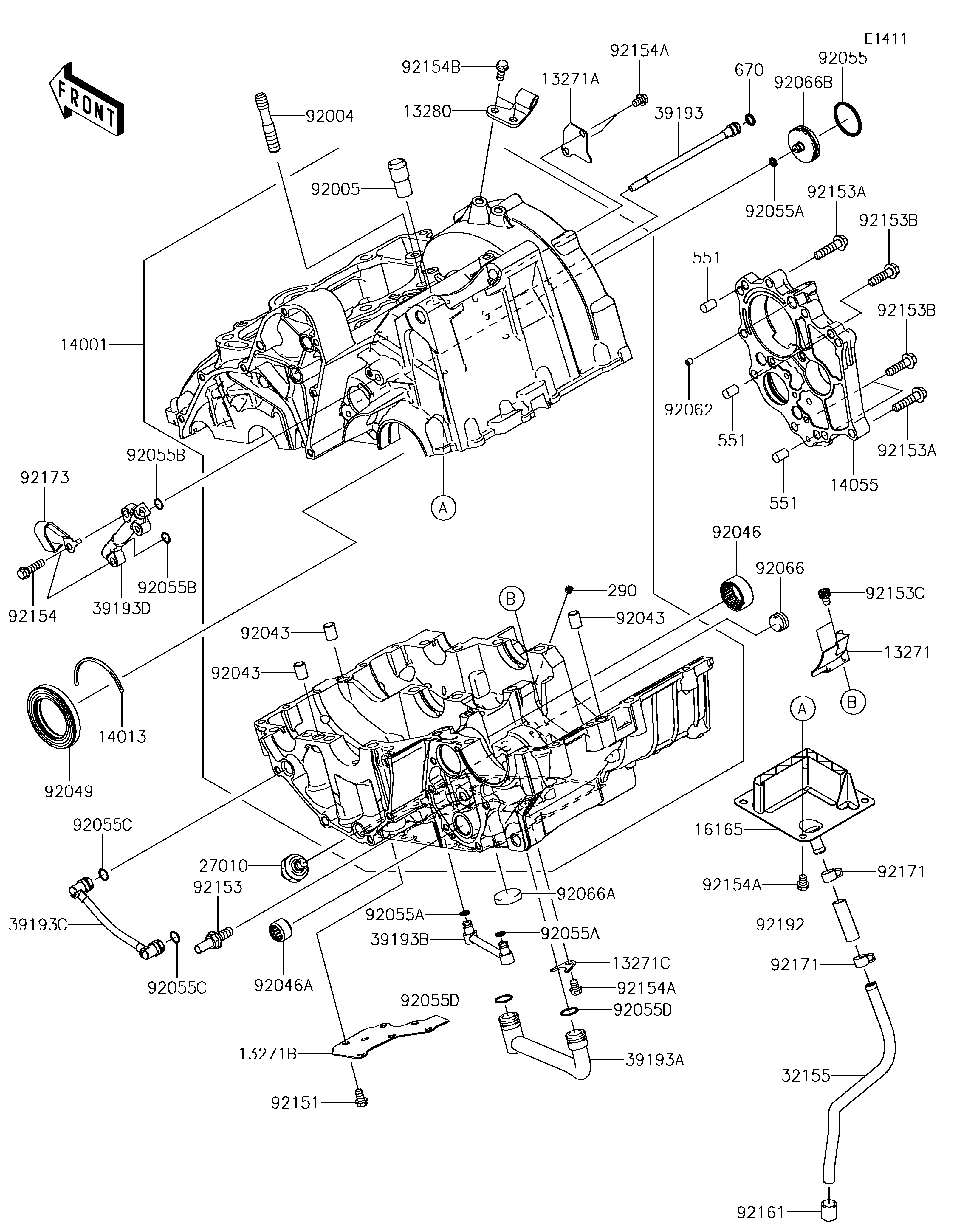

2017 Versys 650 ABS - Crankcase

DOWNLOAD PDF
SELECT A NEW PART
13271
13271
13271A
13271A
13271B
13271B
13271C
13271C
13280
13280
14001
14001
14013
14013
14055
14055
16165
16165
27010
27010
32155
32155
39193
39193
39193A
39193A
39193B
39193B
39193C
39193C
39193D
39193D
92004
92004
92005
92005
92043
92043
92043
92043
92043
92043
92046
92046
92046A
92046A
92049
92049
92055
92055
92055A
92055A
92055A
92055A
92055A
92055A
92055B
92055B
92055B
92055B
92055C
92055C
92055C
92055C
92055D
92055D
92055D
92055D
92062
92062
92066
92066
92066A
92066A
92066B
92066B
92151
92151
92153
92153
92153A
92153A
92153A
92153A
92153B
92153B
92153B
92153B
92153C
92153C
92154
92154
92154A
92154A
92154A
92154A
92154A
92154A
92154B
92154B
92161
92161
290
290
551
551
551
551
551
551
670
670
92171
92171
92171
92171
92173
92173
92192
92192
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PLATE,OIL SHIELDING 13271 13271-0575 1
PLATE 13271A 13271-0577 1
PLATE 13271B 13271-0584 1
PLATE,OIL PIPE 13271C 13271-1187 1
HOLDER,CLUTCH CABLE 13280 13280-0224 1
SET-CRANKCASE 14001 14001-0556 1
RING-POSITION,T=1.98 14013 14013-1004 1
CASE-GEAR,TRANSMISSION 14055 14055-0051 1
SEPARATOR,BREATHER 16165 16165-0056 1
SWITCH,OIL PRESSURE 27010 27010-1313 1
PIPE,BREATHER 32155 32155-0891 1
PIPE-OIL 39193 39193-0564 1
PIPE-OIL 39193A 39193-0565 1
PIPE-OIL 39193B 39193-0566 1
PIPE-OIL 39193C 39193-0567 1
PIPE-OIL 39193D 39193-0569 1
STUD,10X34.5 92004 92004-0024 1
FITTING,BREATHER 92005 92005-0713 1
PIN,DOWEL,10X14 92043 92043-1037 3
BEARING-NEEDLE,24BTM3013 92046 92046-0017 1
BEARING-NEEDLE,HK1312 92046A 92046-1148 1
SEAL-OIL,HTC40628 92049 92049-1501 1
RING-O,29.7X2.4 92055 92055-0006 1
RING-O,4.8MM 92055A 92055-0845 3
RING-O,8.8MM 92055B 92055-0846 2
RING-O,9.8MM 92055C 92055-0847 2
RING-O,13.8MM 92055D 92055-0848 2
NOZZLE,5X6,SILVER 92062 92062-1086 1
PLUG,PT3/8X10 92066 92066-0003 1
PLUG,25X5 92066A 92066-0061 1
PLUG,INPUT SHAFT 92066B 92066-0715 1
BOLT,FLANGED-SMALL,6X10 92151 92151-1389 6
BOLT,8X20 92153 92153-0530 1
BOLT,FLANGED,6X30 92153A 92153-0962 6
BOLT,FLANGED,7X26 92153B 92153-0963 3
BOLT,SOCKET,6X8 92153C 92153-1414 2
BOLT,FLANGED,6X22 92154 92154-0504 2
BOLT,FLANGED,6X8 92154A 92154-0726 7
BOLT,FLANGED,6X14 92154B 92154-0813 2
DAMPER 92161 92161-0267 1
SCREW-SET-SOCKET,6X6 290 290Q0606 1
PIN-DOWEL,8X14 551 551A0814 3
O RING,8MM 670 670D1508 1
CLAMP 92171 92171-1053 2
CLAMP 92173 92173-0059 1
TUBE,9X12X38 92192 92192-0225 1
