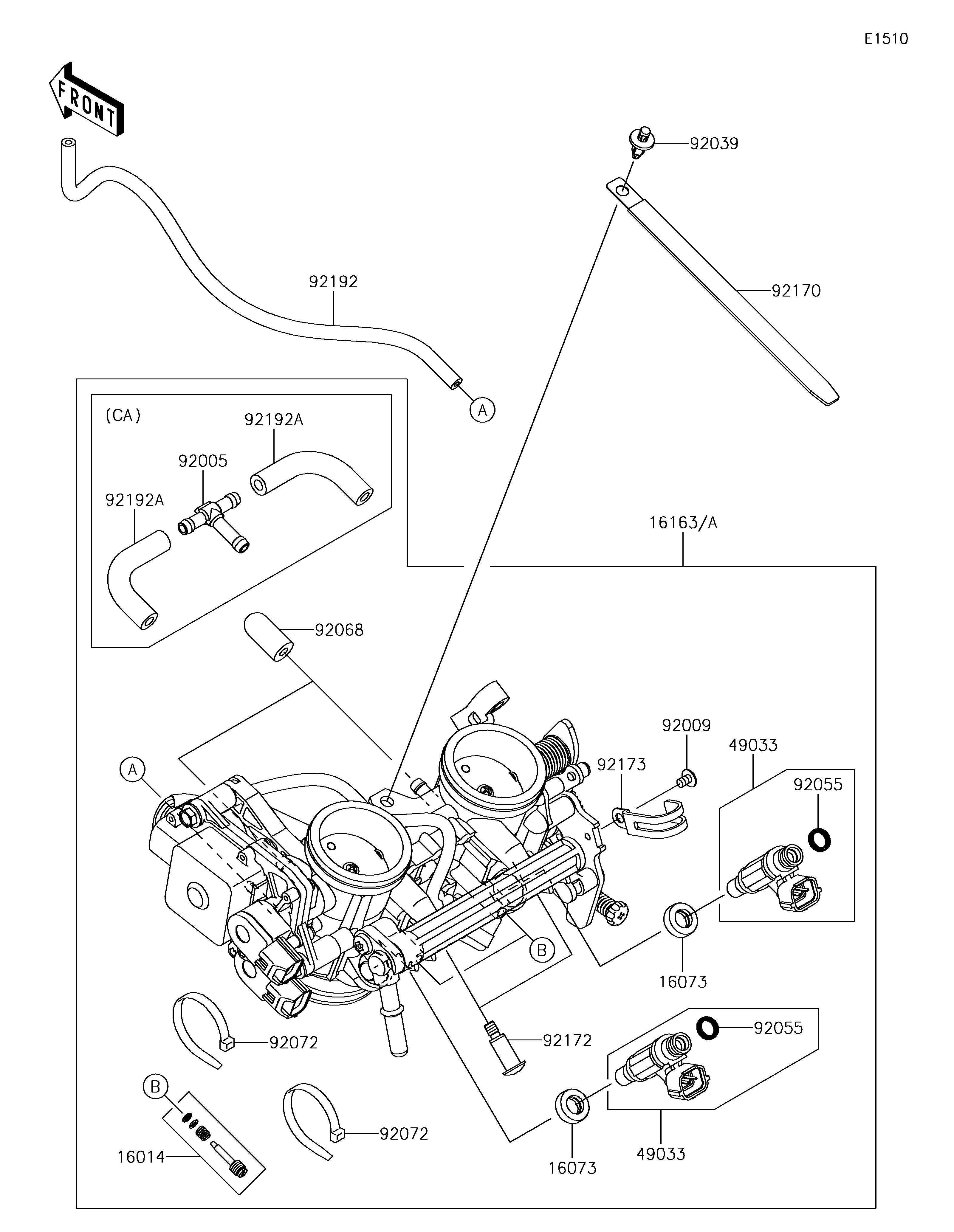

2017 Versys 650 ABS - Throttle

DOWNLOAD PDF
SELECT A NEW PART
16014
16073
16073
16163
49033
49033
92009
92039
92055
92055
92068
92072
92072
92170
92172
92173
92192
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SCREW-PILOT AIR 16014 16014-0002 2
INSULATOR 16073 16073-3707 2
THROTTLE-ASSY 16163 16163-0827 1 _________________________________________CN
NOZZLE-INJECTION 49033 49033-0011 2
SCREW,CLAMP 92009 92009-1860 1
RIVET 92039 92039-0068 1
RING-O,INJECTION NOZZLE 92055 92055-1622 2
PLUG,12X25 92068 92068-006 2 _________________________________________CN
BAND,SUB-HARNESS 92072 92072-0012 2
CLAMP,L=150 92170 92170-1114 1
SCREW,PIPE INJECTION 92172 92172-0064 2
CLAMP 92173 92173-0288 1
TUBE,3X6.7X300 92192 92192-0977 1
