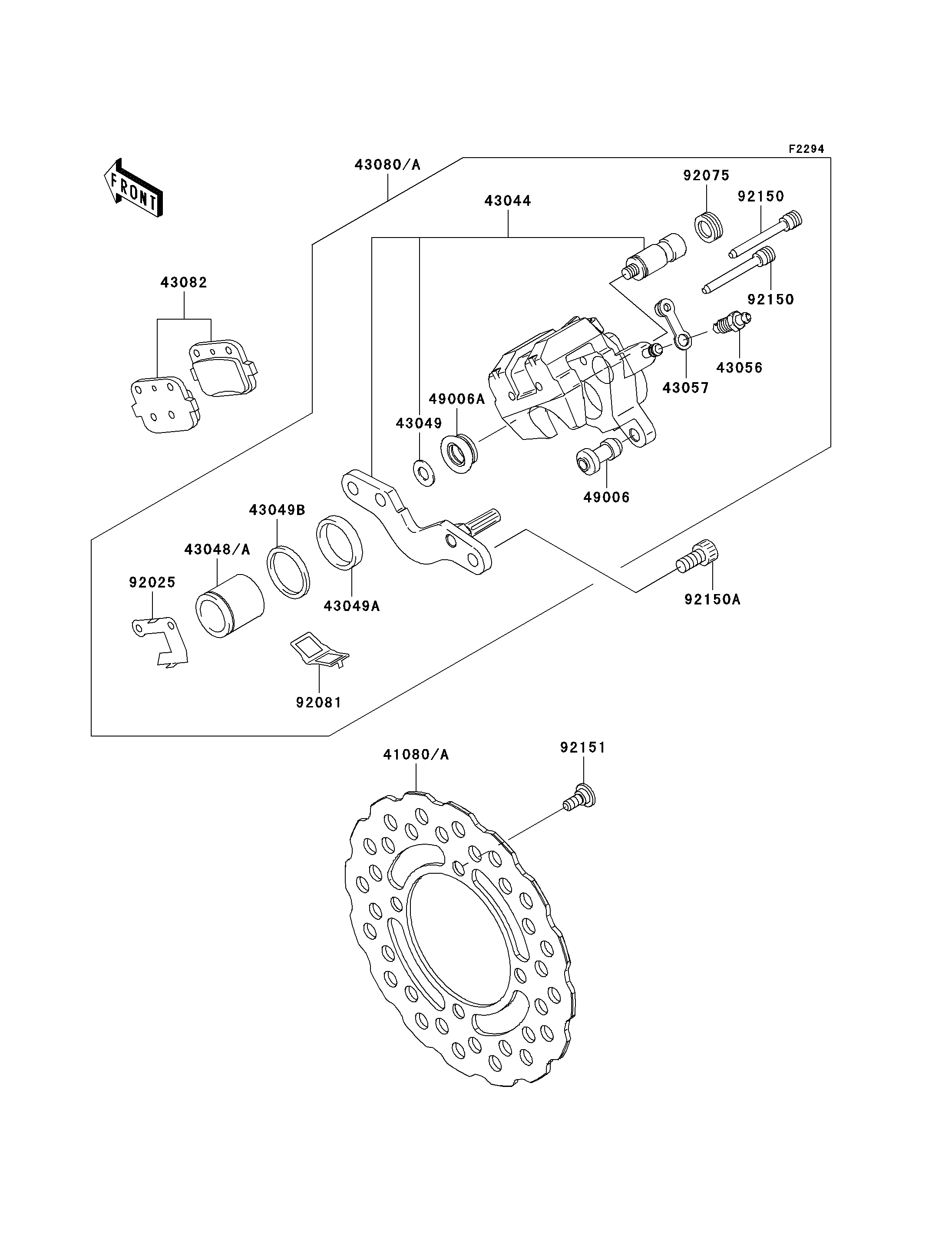

Parts Diagrams |
41080
43044
43048A
43049
43049A
43049B
43056
43057
43080
43082
49006
49006A
92025
92075
92081
92150
92150
92150A
92151
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| DISC,RR | 41080 | 41080-0120 | 1 | ||
| HOLDER-COMP-CALIPER,RR | 43044 | 43044-1076 | 1 | ||
| PISTON-CALIPER | 43048A | 43048-1064 | 1 | ||
| PACKING | 43049 | 43049-1025 | 1 | ||
| PACKING,PISTON SEAL | 43049A | 43049-1060 | 1 | ||
| PACKING,PISTON SEAL | 43049B | 43049-1061 | 1 | ||
| BREATHER-BRAKE | 43056 | 43056-0004 | 1 | ||
| CAP-BREATHER | 43057 | 43057-1001 | 1 | ||
| CALIPER-SUB-ASSY,RR | 43080 | 43080-0068 | 1 | ||
| PAD-ASSY-BRAKE | 43082 | 43082-1205 | 1 | ||
| BOOT,CALIPER | 49006 | 49006-1088 | 1 | ||
| BOOT,CALIPER | 49006A | 49006-1089 | 1 | ||
| SHIM,PAD | 92025 | 92025-1817 | 1 | ||
| DAMPER | 92075 | 92075-1414 | 1 | ||
| SPRING,PAD | 92081 | 92081-1502 | 1 | ||
| BOLT | 92150 | 92150-1144 | 2 | ||
| BOLT,SOCKET,8X16 | 92150A | 92150-1840 | 2 | ||
| BOLT,DISC PLATE,6MM | 92151 | 92151-1799 | 4 |
