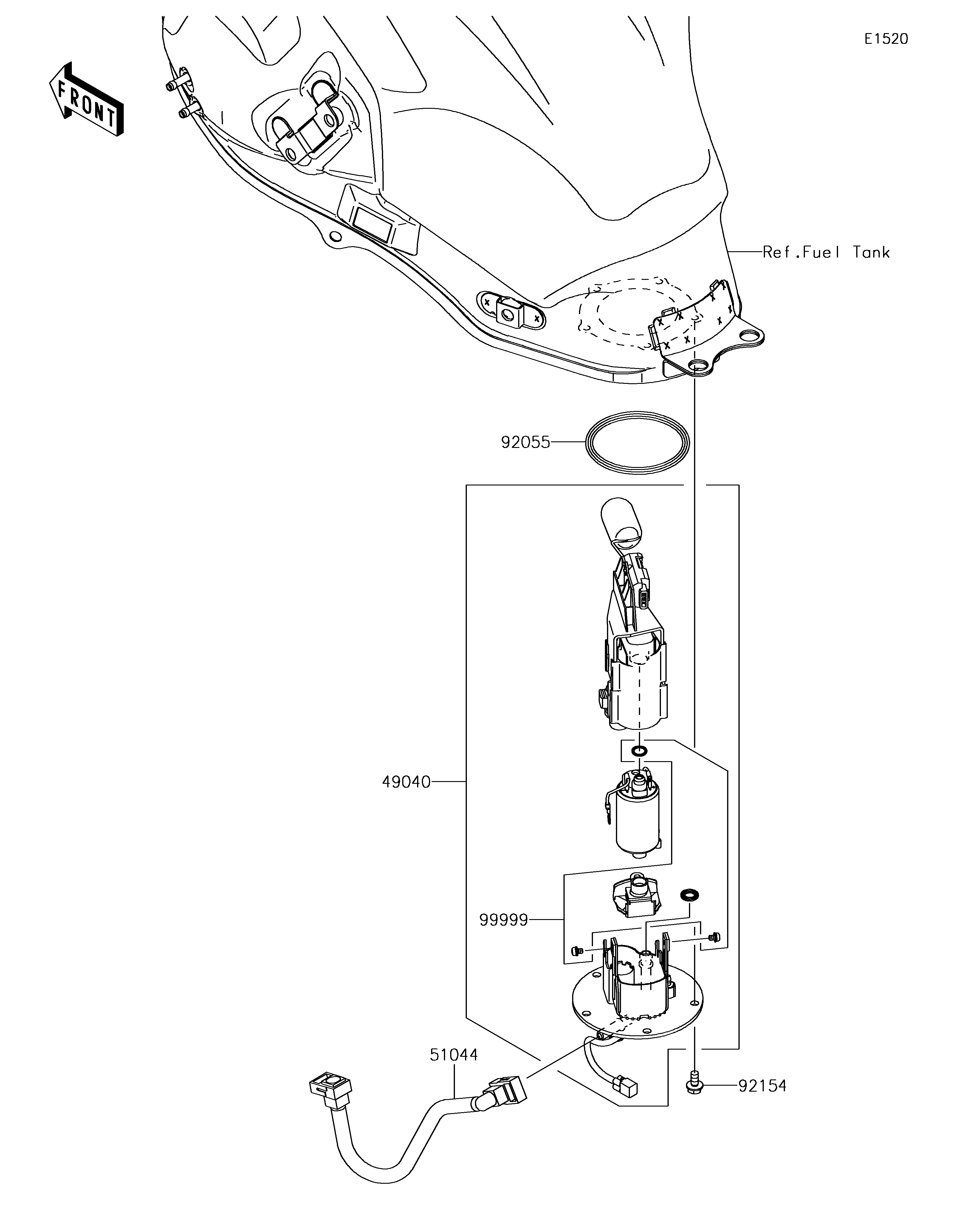

49040
51044
92055
92154
99999
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PUMP-FUEL 49040 49040-0737 1
TUBE-ASSY,FUEL 51044 51044-0849 1
RING-O,74.6X5.7 92055 92055-0728 1
BOLT,FLANGED,6X12 92154 92154-1848 5
KIT,FUEL FILTER 99999 99999-0525 1
