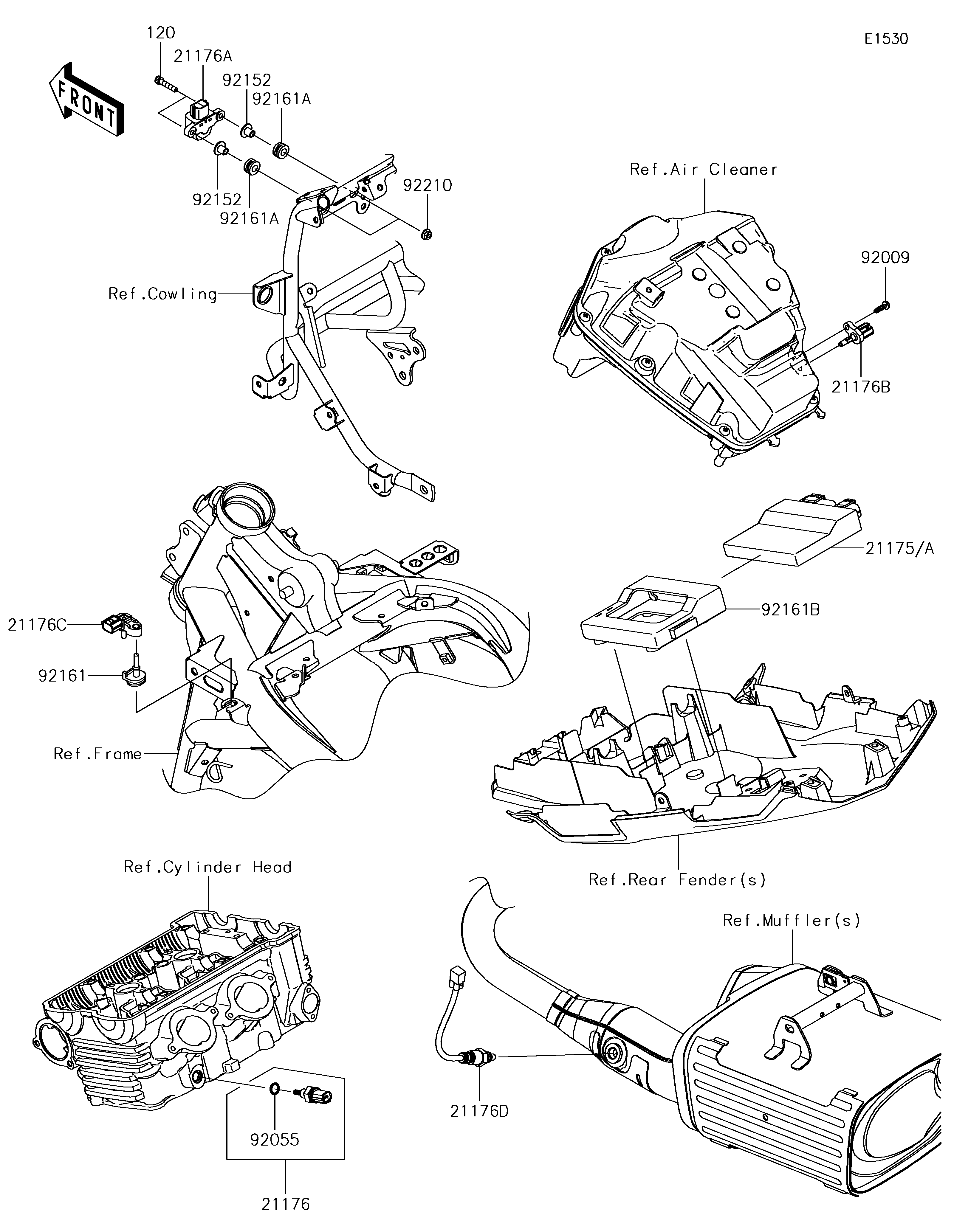

Parts Diagrams |
120
21175
21176
21176A
21176B
21176C
21176D
92009
92055
92152
92152
92161
92161A
92161A
92161B
92210
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-SOCKET,5X25 | 120 | 120CA0525 | 2 | ||
| CONTROL UNIT-ELECTRONIC | 21175 | 21175-1206 | 1 | _________________________________________CN | |
| SENSOR,WATER TEMP | 21176 | 21176-0009 | 1 | ||
| SENSOR,VEHICLE-DOWN | 21176A | 21176-0026 | 1 | ||
| SENSOR,AIR TEMPERATURE | 21176B | 21176-0048 | 1 | ||
| SENSOR,PRESSURE | 21176C | 21176-0111 | 1 | ||
| SENSOR,OXYGEN | 21176D | 21176-0775 | 1 | ||
| SCREW,TAPPING,5X16 | 92009 | 92009-1984 | 1 | ||
| RING-O,9.5X1.9 | 92055 | 92055-0016 | 1 | ||
| COLLAR | 92152 | 92152-1592 | 2 | ||
| DAMPER | 92161 | 92161-0673 | 1 | ||
| DAMPER,8X16X8.6 | 92161A | 92161-0685 | 2 | ||
| DAMPER,ECU | 92161B | 92161-1854 | 1 | ||
| NUT,FLANGED,5MM | 92210 | 92210-0007 | 2 |
| BOLT-SOCKET,5X25 | |
| REF # | 120 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CONTROL UNIT-ELECTRONIC | |
| REF # | 21175 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | _________________________________________CN |
| SENSOR,WATER TEMP | |
| REF # | 21176 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SENSOR,VEHICLE-DOWN | |
| REF # | 21176A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SENSOR,AIR TEMPERATURE | |
| REF # | 21176B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SENSOR,PRESSURE | |
| REF # | 21176C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SENSOR,OXYGEN | |
| REF # | 21176D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW,TAPPING,5X16 | |
| REF # | 92009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING-O,9.5X1.9 | |
| REF # | 92055 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COLLAR | |
| REF # | 92152 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92161 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER,8X16X8.6 | |
| REF # | 92161A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DAMPER,ECU | |
| REF # | 92161B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,FLANGED,5MM | |
| REF # | 92210 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
