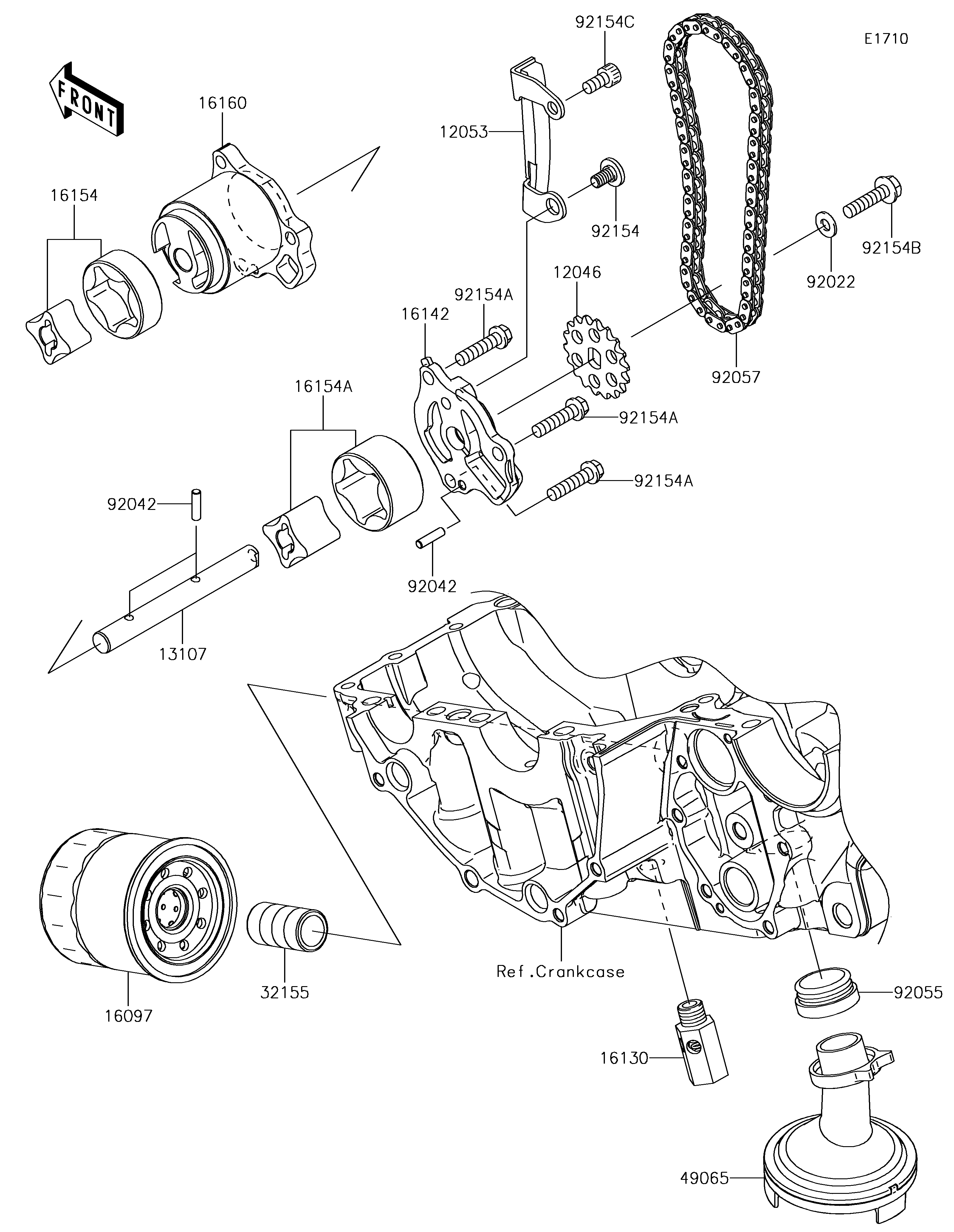

2017 Versys 650 ABS - Oil Pump

DOWNLOAD PDF
SELECT A NEW PART
12046
12053
13107
16097
16130
16142
16154
16154A
16160
32155
49065
92022
92042
92042
92055
92057
92154
92154A
92154A
92154A
92154B
92154C
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SPROCKET,18T,BF04M 12046 12046-0040 1
GUIDE-CHAIN 12053 12053-0071 1
SHAFT,OIL PUMP 13107 13107-0772 1
FILTER-ASSY-OIL 16097 16097-0008 1
VALVE-ASSY-RELIEF 16130 16130-0552 1
COVER-PUMP 16142 16142-0712 1
ROTOR-PUMP,L=14 16154 16154-0037 1
ROTOR-PUMP,40.56X22 16154A 16154-1115 1
BODY 16160 16160-0110 1
PIPE,OIL FILTER 32155 32155-0029 1
FILTER-OIL 49065 49065-0708 1
WASHER,6X12.8X1.2 92022 92022-1827 1
PIN,DOWEL,4X15.8 92042 92042-014 3
RING-O,OIL FILTER 92055 92055-1354 1
CHAIN,DID 215FD-DHA,56LE 92057 92057-0098 1
BOLT,SOCKET,6X11 92154 92154-0188 1
BOLT,FLANGED,6X25 92154A 92154-0783 3
BOLT,FLANGED,6X25 92154B 92154-0811 1
BOLT,SOCKET,6X12 92154C 92154-0812 1
