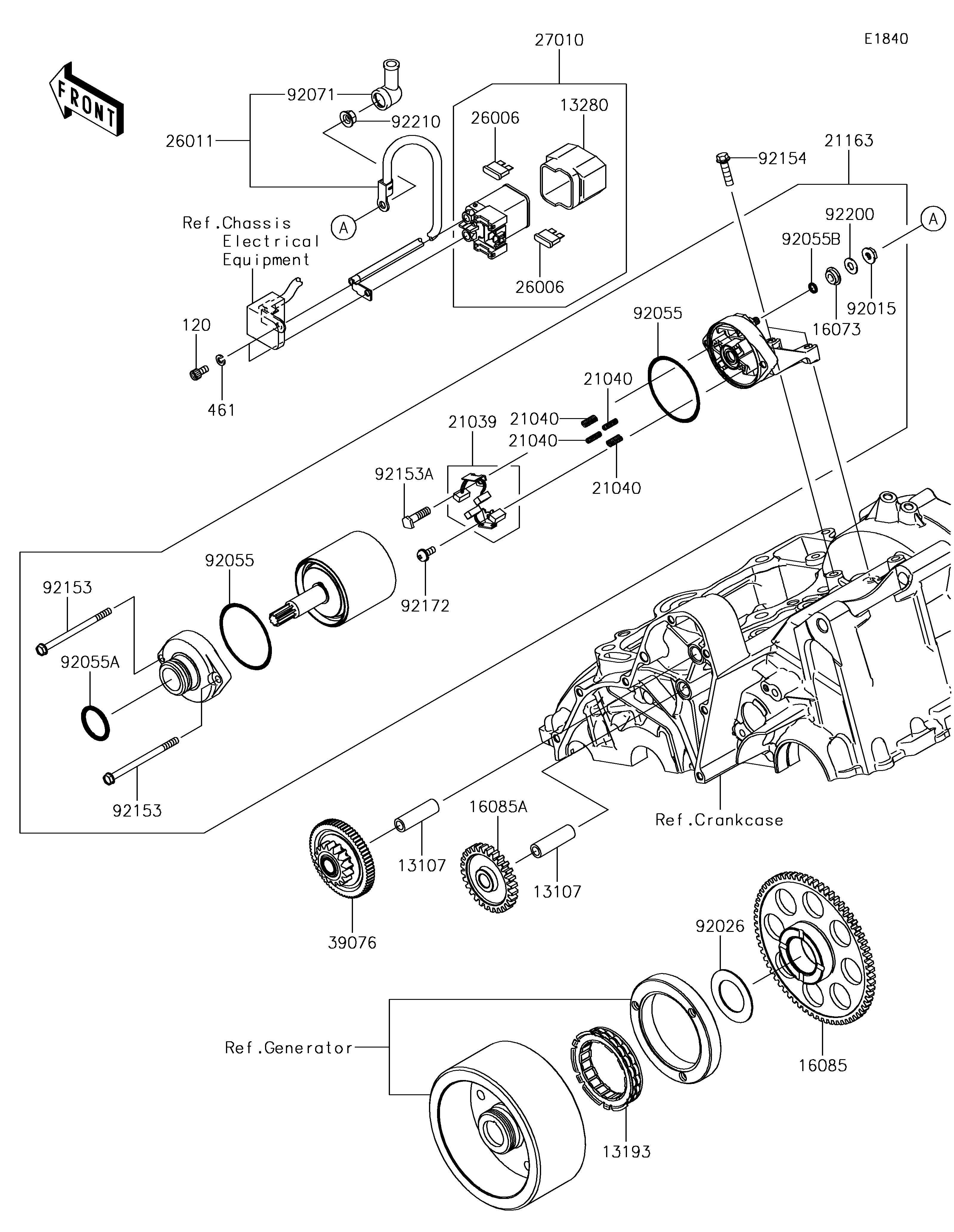

2017 Versys 650 ABS - Starter Motor

DOWNLOAD PDF
SELECT A NEW PART
120
13107
13107
13193
13280
16073
16085
16085A
21039
21040
21040
21040
21040
21163
26006
26006
26011
27010
39076
461
92015
92026
92055
92055
92055A
92055B
92071
92153
92153
92153A
92154
92172
92200
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,6X10 120 120CB0610 2
SHAFT,IDLE GEAR 13107 13107-1106 2
CLUTCH-ASSY-ONEWAY 13193 13193-0006 1
HOLDER 13280 13280-0301 1
INSULATOR 16073 16073-0053 1
GEAR,67T 16085 16085-0076 1
GEAR,IDLE,28T 16085A 16085-0148 1
BRUSH,CARBON 21039 21039-0004 1
SPRING-BRUSH 21040 21040-0003 4
STARTER-ELECTRIC 21163 21163-0746 1
FUSE,BLADE,30A,GREEN 26006 26006-1006 2
WIRE-LEAD 26011 26011-0873 1
SWITCH,MAGNETIC 27010 27010-0099 1
LIMITER,16T&66T 39076 39076-0023 1
WASHER-SPRING,6MM 461 461DB0600 2
NUT,STARTER MOTOR 92015 92015-1476 1
SPACER,29.1X47.5X1.2 92026 92026-087 1
RING-O 92055 92055-0136 2
RING-O 92055A 92055-1276 1
RING-O,4.5X2.0 92055B 92055-1370 1
GROMMET 92071 92071-0024 1
BOLT 92153 92153-1850 2
BOLT 92153A 92153-1866 1
BOLT,FLANGED,6X22 92154 92154-0504 2
SCREW 92172 92172-0334 1
WASHER 92200 92200-0386 1
NUT,6MM 92210 92210-0188 1
