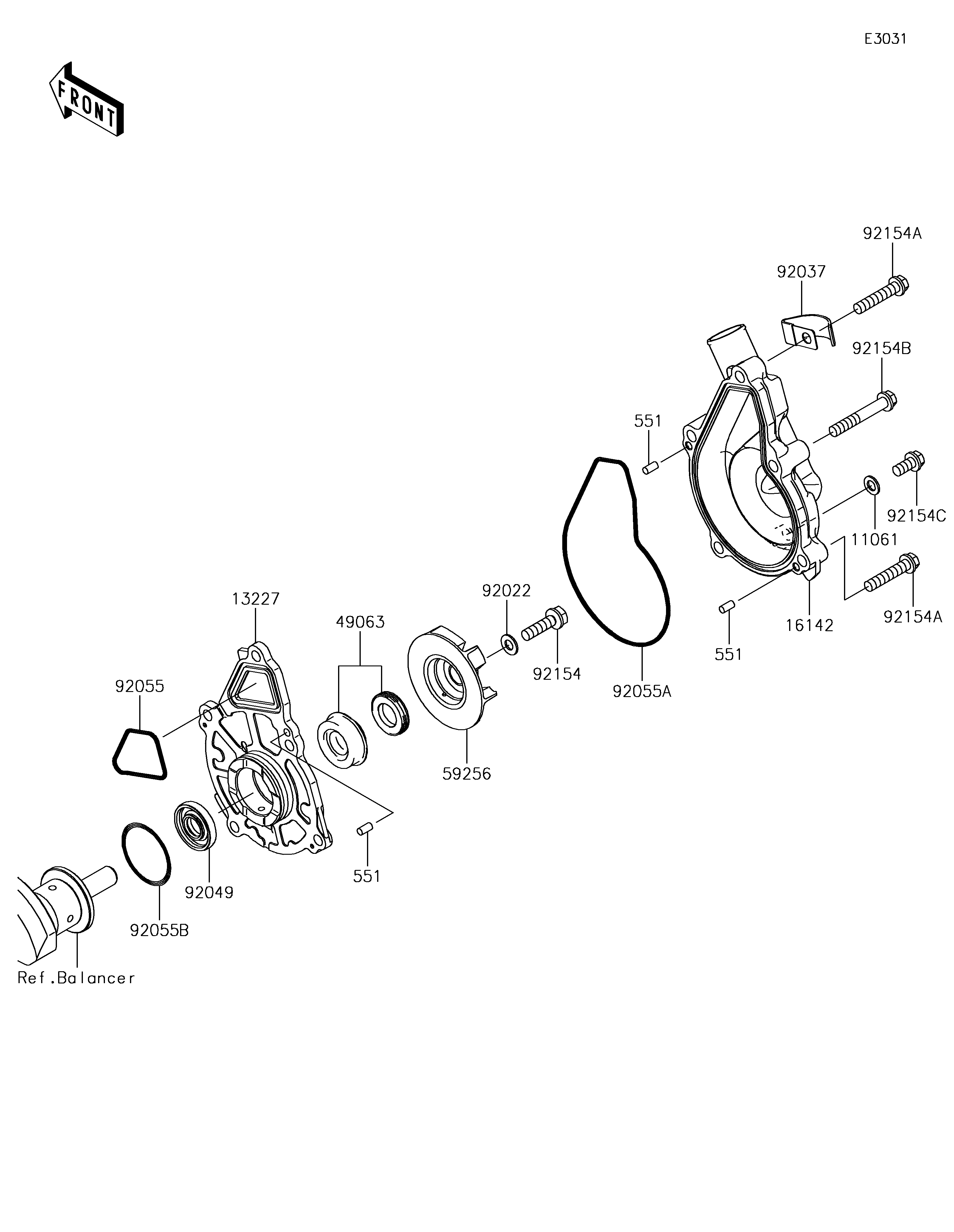

Parts Diagrams |
11061
13227
16142
49063
551
551
551
59256
92022
92037
92049
92055
92055A
92055B
92154
92154A
92154A
92154B
92154C
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET | 11061 | 11061-0107 | 1 | ||
| HOUSING | 13227 | 13227-0038 | 1 | ||
| COVER-PUMP | 16142 | 16142-0741 | 1 | ||
| SEAL-MECHANICAL,WATER | 49063 | 49063-1055 | 1 | ||
| PIN-DOWEL,4X8 | 551 | 551A0408 | 3 | ||
| IMPELLER | 59256 | 59256-0009 | 1 | ||
| WASHER,6.1X12X1 | 92022 | 92022-077 | 1 | ||
| CLAMP | 92037 | 92037-1680 | 1 | ||
| SEAL-OIL,12X28.55X5 | 92049 | 92049-0791 | 1 | ||
| RING-O,CASE-HOUSING | 92055 | 92055-0082 | 1 | ||
| RING-O,HOUSING-PUMP COVER | 92055A | 92055-0083 | 1 | ||
| RING-O,33.2MM | 92055B | 92055-1155 | 1 | ||
| BOLT,FLANGED,6X22 | 92154 | 92154-1069 | 1 | ||
| BOLT,FLANGED,6X30 | 92154A | 92154-1773 | 2 | ||
| BOLT,FLANGED,6X40 | 92154B | 92154-1774 | 3 | ||
| BOLT,FLANGED,6X12 | 92154C | 92154-1777 | 1 |
